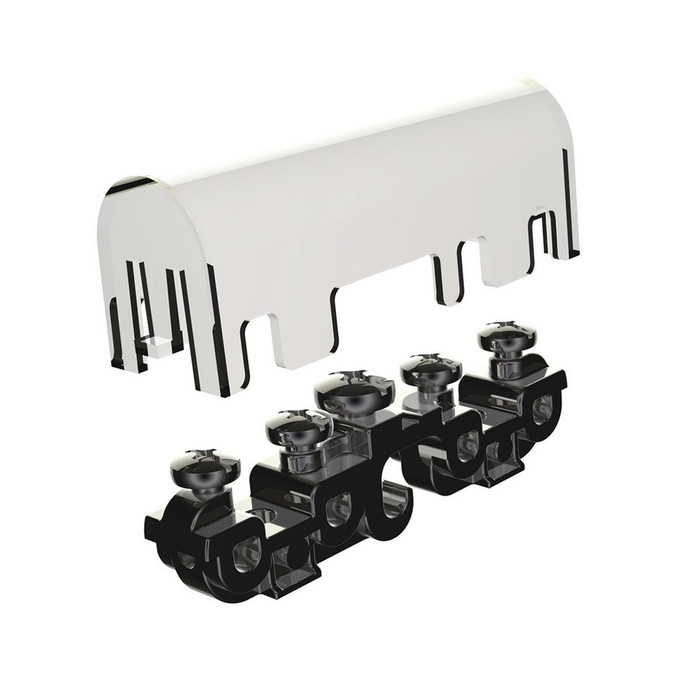

Burndy BDTIBB BONDIT Wall Mount Intersystem Bonding Connector, Stainless Steel, #14-#2 AWG

Burndy BDTIBB BONDIT Wall Mount Intersystem Bonding Connector, Stainless Steel, #14-#2 AWG

(No reviews yet) Write a Review

Model: BDTIBB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$22.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy BDTIBB BONDIT Wall Mount Intersystem Bonding Connector, Stainless Steel, #14-#2 AWG

The Burndy BDTIBB BONDIT Wall Mount Intersystem Bonding Connector provides a reliable mechanical connection point for intersystem grounding and bonding applications where multiple grounding electrode conductors must be tied to a common bonding location. Constructed with a stainless steel connector body and a tin-plated finish, this wall-mount connector accepts conductors ranging from #14 AWG to #2 AWG. A lay-in section handles #14 AWG to #4 AWG conductors while the main conductor port accommodates #6 AWG to #2 AWG conductors, all secured with set screws for a dependable mechanical termination. Compact dimensions of 4.01 in. L x .71 in. W allow the BDTIBB to be installed in tight wall-mount locations while maintaining a secure, dependable bonding connection.

Key Features

  • Wide Conductor Range: Accepts #14 AWG to #2 AWG conductors for flexible intersystem bonding and grounding connections.
  • Dual Conductor Ports: A lay-in section accepts #14 AWG to #4 AWG conductors while the primary port handles #6 AWG to #2 AWG conductors, covering the full #14-#2 AWG range in a single connector body.
  • Durable Stainless Steel Body: Stainless steel construction resists corrosion for long-term reliability in wall-mount installations.
  • Tin-Plated Finish: Tin plating improves corrosion resistance and helps maintain a stable electrical connection at the bonding point.
  • Set Screw Termination: Set screws secure each conductor within the connector body for a dependable mechanical bond.
  • Wall Mount Configuration: Designed for wall mounting, making the BDTIBB well suited for establishing a common intersystem bonding point.
  • Compact Footprint: Measures 4.01 in. in length and .71 in. in width, fitting easily into space-limited mounting locations.

Technical Specifications

  • Conductor Range: 6-2-AWG
  • Product Material: Stainless Steel
  • Plating: Tin Plated
  • Product Details: BDT
  • Product Type: Mechanical

Typical Applications

  • Intersystem Bonding at Service Entrances
  • Telecommunications, Cable, and Satellite Grounding Connections
  • Electrical Grounding and Bonding Systems
  • Commercial and Residential Wall-Mount Installations

Why Burndy?

Burndy is a recognized manufacturer of connector and grounding solutions built for demanding electrical applications. The BDTIBB combines a stainless steel body with a tin-plated finish and secure set-screw termination across dual conductor ports to deliver a dependable intersystem bonding connection in a compact wall-mount package. Choose Burndy for professional-grade bonding hardware engineered for reliable, long-term performance in commercial and residential electrical systems.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Wire Size:
6-2-AWG
Plating:
Tin Plated
Series:
Bondit
Product Details:
BDT
Product Type:
Intersystem Bonding Bridge
Product Material:
Stainless Steel
Department:
Electrical
Product Group:
Grounding & Bonding
Product Subgroup:
Grounding & Bonding

Burndy BDTIBB – Frequently Asked Questions

1) What wire sizes will the Burndy BDTIBB intersystem bonding connector accept?
The BDTIBB covers #14 AWG through #2 AWG across two ports. The lay-in section takes #14 to #4 AWG, which is where telecom, cable, and satellite bonding conductors usually land, and the main conductor port takes #6 to #2 AWG for the grounding electrode conductor side. Each conductor is held with a set screw.
2) What is the BDTIBB actually for at a service entrance?
It gives you one common point where several grounding electrode conductors and communications bonding conductors tie together, instead of stacking wires under the meter lug or clamping onto the water pipe in three places. Typical uses are intersystem bonding at the service, and telecom, cable, and satellite ground terminations.
3) Can I run a #2 AWG grounding electrode conductor into the lay-in section of the BDTIBB?
No. The lay-in section is rated #14 to #4 AWG only. A #2 conductor goes into the main conductor port, which is the #6 to #2 AWG side. Putting a #2 in the lay-in slot will not give you a proper termination.
4) Will the BDTIBB fit in a tight spot beside a meter base or service panel?
It is a compact wall-mount block, 4.01 in. long by .71 in. wide, so it goes onto flat wall surface next to a service entrance without needing much clearance. That footprint is the reason it works where a larger ground bar will not.
5) Is a stainless steel bonding connector worth it over a bronze or aluminum one outdoors?
The BDTIBB body is stainless steel with a tin-plated finish, a combination aimed at corrosion resistance and a stable contact surface at the bonding point. On an exterior service entrance wall where the connector sees weather and dissimilar-metal contact, that matters more than on an interior install.
6) Is the BDTIBB a mechanical connector or does it need a crimp tool?
Mechanical, set screw type. No crimper, no die set, no compression tool. You strip the conductor, lay it in or insert it in the main port, and torque the set screw, which also means a conductor can be removed or re-terminated later.
7) What is the Burndy part number and UPC for the BONDIT wall mount bonding connector?
The manufacturer part number is BDTIBB, in Burndy's BONDIT (Bondit) series, with UPC 781810504017. Order by BDTIBB to get the stainless steel wall-mount intersystem version rather than another BDT variant.
