Burndy Exothermic Weld Mold, Vertical Overhead Tap to Horizontal Bus

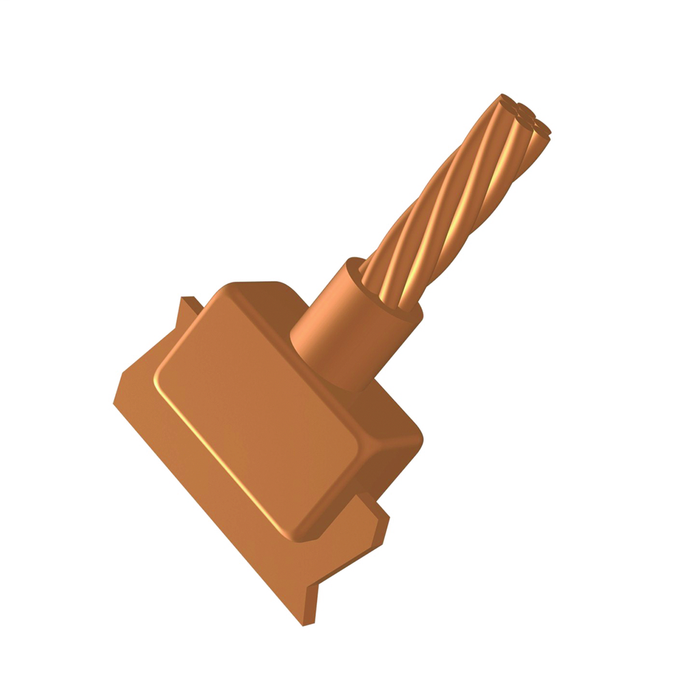

The Burndy Exothermic Weld Mold, Vertical Overhead Tap to Horizontal Bus, is a BURNDYWeld® graphite mold engineered for permanent, molecular-bonded electrical connections between a vertical overhead tap conductor and a horizontal bus bar. This mold is sized for 4/0 AWG copper stranded conductors and bus bars measuring 1/4" x 1-1/2" and wider, using a 150 weld metal charge to produce a low-resistance, corrosion-resistant connection. It is UL Listed, making it suitable for demanding grounding, bonding, and bus bar tap applications in commercial, industrial, and utility electrical systems. Exothermic welded connections resist loosening, corrosion, and thermal cycling far better than mechanical clamps, giving installers a permanent bond that meets code requirements for long-term grounding and bonding performance.
Key Features
- Conductor Size: Accommodates 4/0 AWG copper stranded conductor for the tap connection.
- Bus Bar Compatibility: Fits bus bar sizes of 1/4" x 1-1/2" and wider on the tap side.
- Configuration: Vertical overhead tap to horizontal bus, ideal for overhead grounding and bonding runs.
- Rod Size: Compatible with 1 in rod for the exothermic weld process.
- Weld Metal Charge: Designed for use with 150 weld metal for a secure, permanent bond.
- Trade Name: Part of the BURNDYWeld® exothermic welding system.
- Type: Reusable weld mold for repeated exothermic connections.
- Minimum Pack Quantity: Sold in a minimum pack quantity of 1.
Certifications & Compliance
- UL Listed
Technical Specifications
- Standards - RoHS Compliance Status: CM
- Product Type: Electrical Component
- UL Listed: Yes
- Minimum Pack Quantity: 1
- Department: Electrical
- Product Group: Wire Connectors
Typical Applications
- Substation and Utility Grounding Systems
- Bus Bar Tap and Splice Connections
- Commercial and Industrial Electrical Grounding
- Overhead Conductor to Bus Bar Bonding
- Exothermic Welding of Copper Conductors
- Renewable Energy and Solar Farm Grounding Grids
Why Burndy?
Burndy's BURNDYWeld® exothermic welding system delivers permanent, molecular-bonded connections that outperform mechanical or crimped alternatives in long-term reliability. This UL Listed mold is built for professionals who need consistent, code-compliant grounding and bonding performance on demanding electrical projects.
Manufacturer Resources
B572 Spec Sheet
Product Specs
- Standards - RoHS Compliance Status:
- CM
- Conductor - Copper Str Tap:
- 4/0 AWG
- Conductor - Copper Str Size:
- 4/0 AWG
- Trade Name:
- BURNDYWeld®
- Product Type:
- Exothermic Weld Mold
- Conductor - Rod Size:
- 1 in
- Sub Brand:
- BURNDYWELD
- UL Listed:
- Yes
- Conductor Type:
- CU C Str-Size
- Minimum Pack Quantity:
- 1
- Dimension - Bus Bar Size Tap Side inch:
- 1/4" X 1-1/2" & WIDER
- Department:
- Electrical
- Product Group:
- Electrical Installation Tools
- Listing:
- UL Listed
- Configuration:
- Vertical Overhead Tap to Horizontal Bus
- Product Subgroup:
- Exothermic Welding & Consumables
Burndy B917 – Frequently Asked Questions
1) What conductor size does the Burndy B917 exothermic weld mold accept?
The B917 BURNDYWeld mold is cut for 4/0 AWG copper stranded conductor on the tap side. If your run is a different gauge, the mold cavity will not seat the cable correctly and you need a different mold; the graphite is machined to one conductor size, not a range.
2) Will this Burndy weld mold work on my bus bar, and what size bar does it need?
The tap side is sized for bus bar 1/4 inch by 1-1/2 inch and wider. A bar thinner or narrower than that will not give the mold a proper seat or heat sink, so measure the bar before ordering.
3) What weld metal charge do I order with the Burndy vertical overhead tap to bus mold?
It runs a 150 weld metal charge. The mold itself is the reusable graphite tooling only, so the charges are a separate consumable you buy by the box for the number of connections on the job.
4) What is the difference between the B917 and B5-72 BURNDYWeld molds?
Two different connection geometries. The B917 is a vertical overhead tap to a horizontal bus bar, for dropping or rising a tap conductor onto a flat bar. The B5-72 is a horizontal cable through the top of a ground rod, which is the grid conductor running across a driven rod. Pick by the joint you are making, not by conductor size alone.
5) Is the Burndy BURNDYWeld exothermic mold UL Listed for grounding and bonding work?
Yes, the BURNDYWeld mold is UL Listed, which is what inspectors usually want to see on grounding electrode and bonding connections in commercial, industrial, and utility work.
6) Why use an exothermic weld instead of a mechanical grounding clamp on a bus bar tap?
An exothermic weld fuses the copper into one molecular bond, so there is no threaded fastener to back off under vibration or thermal cycling and no dissimilar-metal joint to corrode. Mechanical clamps need periodic inspection and retorque; a welded tap does not. On buried grid, substation, and solar farm grounding, that is why the spec usually calls for weld.
7) Do I have to buy Burndy weld molds in a multi-pack?
No. Minimum pack quantity is 1, so you can order a single mold for one crew or one connection type and add charges separately.
8) How many welds can I get out of one Burndy graphite mold?
The BURNDYWeld mold is a reusable graphite tool built for repeated connections, so one mold covers multiple welds of the same configuration on a job. Graphite wears with each shot, so crews typically carry a spare on large grid installs.
