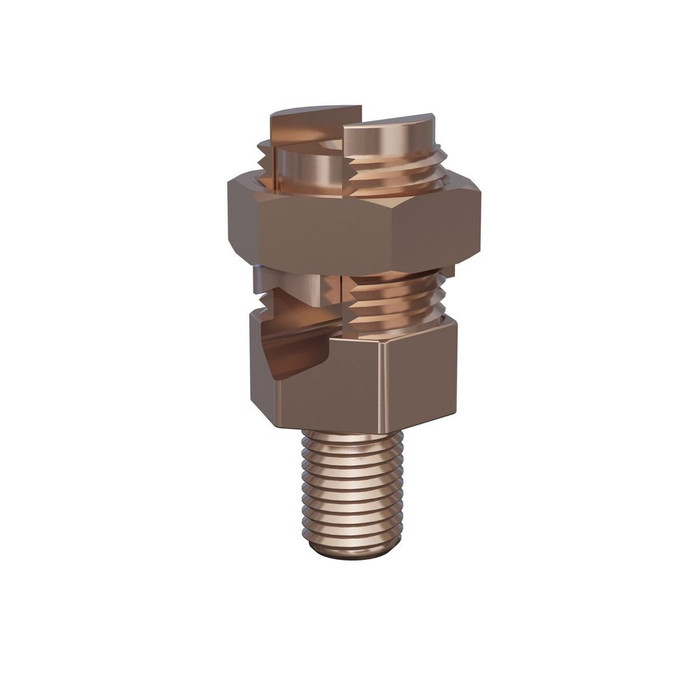

Burndy KC26 SERVIT POST Mechanical Connector, Cable to Flat, 1/2" Stud

The Burndy KC26 SERVIT POST Mechanical Connector is a cable-to-flat grounding connector designed to join stranded or solid copper conductors to a flat bus bar or ground bar. It accommodates a 2-2/0 AWG (Str) / 2-3/0 AWG (Sol) conductor range on a single body, features a 1/2" stud for secure mounting to flat mounting surfaces, and uses a .88" cross base flat to interface cleanly with standard bus bar stock. As part of the SERVIT POST line, this connector is built to provide a dependable mechanical grounding and bonding connection point in commercial and industrial electrical systems where cable-to-flat terminations are required.

Key Features

  • Conductor Range: 2-2/0 AWG (Str) / 2-3/0 AWG (Sol), giving installers flexibility to terminate a range of stranded or solid copper conductor sizes with one connector body.
  • Stud Size: 1/2" stud for secure, code-compliant attachment to flat bus bar, ground bar, or other flat mounting surfaces.
  • Cross Base Flat: .88" base dimension sized to seat properly against standard flat bus stock for a stable, low-resistance connection.
  • Cable-to-Flat Configuration: SERVIT POST mechanical connector design joins round cable conductors directly to flat bus or ground bar surfaces without requiring compression tooling.
  • Mechanical Installation: Field-installable mechanical grounding connector that simplifies grounding and bonding terminations on the job site.
  • Copper Grounding Hardware: Purpose-built as a grounding and bonding connector for cable-to-bar/flat applications within Burndy's mechanical connector line.

Technical Specifications

  • Conductor Range: 2/0-AWG

Typical Applications

  • Grounding and Bonding Connections
  • Cable-to-Bus-Bar Terminations
  • Panelboard and Switchgear Grounding
  • Ground Bar and Flat Stock Connections
  • Commercial and Industrial Electrical Installations
  • Equipment Grounding and Utility Applications

Why Burndy?

Burndy is a recognized manufacturer of mechanical and compression connectors for grounding and bonding applications, and the KC26 SERVIT POST connector reflects that focus with a clearly defined conductor range, stud size, and cross base flat dimension engineered for a secure cable-to-flat connection. Electricians and contractors can rely on the KC26 to deliver a consistent, mechanically sound grounding termination without specialized crimping equipment. For professional electrical, grounding, and bonding work where a dependable cable-to-flat connector is required, the Burndy KC26 SERVIT POST is built to perform.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Wire Size:
2/0-AWG
Termination Method:
Mechanical
Product Type:
Grounding Connector
Product Size:
1/2"
Department:
Electrical
Product Subgroup:
Grounding & Bonding
Product Group:
Grounding & Bonding

Burndy KC26 – Frequently Asked Questions

1) What conductor sizes will the Burndy KC26 SERVIT POST connector accept?
The KC26 takes 2 through 2/0 AWG stranded copper, or 2 through 3/0 AWG solid copper, on a single connector body. That means one part covers most equipment grounding and bonding conductor sizes in a commercial panel, so you are not stocking a separate lug for each gauge.
2) Will the KC26 mount to my ground bar or flat bus bar?
Yes, that is exactly what it is built for. The KC26 is a cable-to-flat connector with a 1/2 inch stud that bolts through flat stock such as a ground bar, bus bar, or other flat mounting surface, and it has a .88 inch cross base flat that seats against the bar. Your bar needs a 1/2 inch hole to take the stud.
3) Do I need a crimp tool or hydraulic press to install the KC26?
No tooling beyond hand wrenches. The KC26 is a mechanical connector, so the conductor is clamped under a screw and the body is bolted to the flat surface. No crimp dies, no hydraulic head, no calibrated tool. That is the main reason crews pick a SERVIT POST over a compression lug for field grounding work.
4) Should I use a mechanical SERVIT POST connector or a compression lug for a grounding connection?
Pick the mechanical KC26 when you want a field-installable termination without carrying a crimper, when the conductor size may change, or when you may need to back the connection out later. A compression lug is the choice when you need a permanent, tool-verified crimp. The KC26 covers 2 through 2/0 AWG stranded with one body, which is why it suits service and retrofit work where the exact conductor is not confirmed until you are at the panel.
5) Is the Burndy KC26 suitable for copper conductors only?
The KC26 is specified for stranded or solid copper conductors. The description calls it copper grounding hardware for cable-to-bar and cable-to-flat applications, so do not plan on it for aluminum conductors. For an aluminum or dual-rated run you want a connector marked AL9CU.
6) Can I use the KC26 for switchgear and panelboard grounding in a commercial building?
Yes. Typical uses for the KC26 are panelboard and switchgear grounding, ground bar and flat stock connections, cable-to-bus-bar terminations, and equipment grounding in commercial and industrial systems. It gives you a fixed cable landing point on flat bus without compression tooling, which is why MRO and facility crews standardize on it across panels.
7) What part number do I order for the Burndy cable-to-flat SERVIT POST with a 1/2 inch stud?
Order Burndy KC26. That is the manufacturer part number, and it is the cable-to-flat SERVIT POST with the 1/2 inch stud and .88 inch cross base flat.
