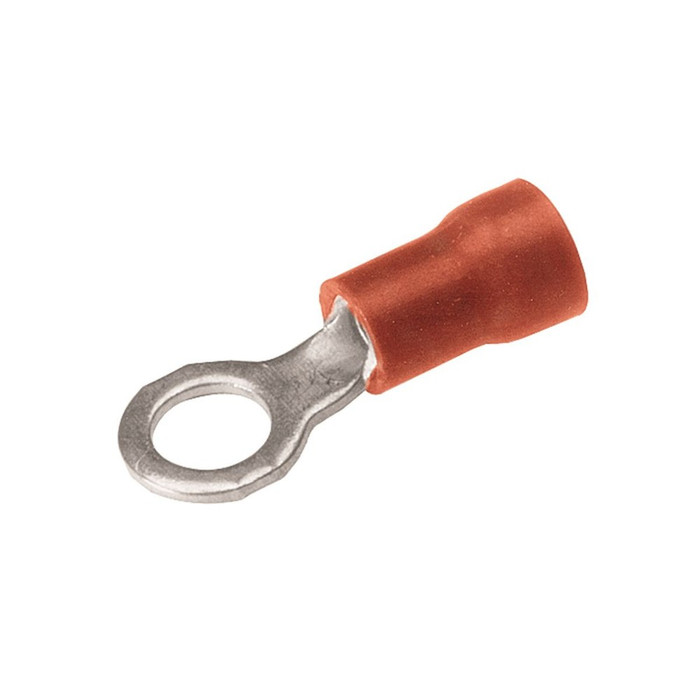

Burndy TP1810RBG25 Vinyl-Insulated Copper Ring Terminal, 22-18 AWG, #10 Stud

Burndy TP1810RBG25 Vinyl-Insulated Copper Ring Terminal, 22-18 AWG, #10 Stud

(No reviews yet) Write a Review

Model: TP1810RBG25

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy TP1810RBG25 Vinyl-Insulated Copper Ring Terminal, 22-18 AWG, #10 Stud

The Burndy TP1810RBG25 is a vinyl-insulated ring terminal engineered for 22-18 AWG copper conductors and a #10 stud, part of Burndy's HYDENT™ compression terminal line. A deep V-groove serrated inner barrel biting into the conductor and a funnel entry that guides wire strands during crimping combine for a secure, code-compliant compression connection that resists loosening under vibration. The vinyl sleeve insulates the finished crimp and helps installers quickly identify conductor size at a glance. Each terminal is supplied in a convenient bag of 25 for quick access on the job site or in the panel shop.

Key Features

  • Wire Range: Accommodates 22-18 AWG copper conductors for a precise, code-compliant crimp.
  • Stud Size: Sized for a #10 stud for straightforward panel and terminal block connections.
  • Durable Construction: Copper barrel construction delivers reliable conductivity and long-term connection integrity.
  • Vinyl Insulation: Vinyl-insulated sleeve protects the crimp connection and simplifies conductor identification.
  • Deep V-Groove Serrations: Serrated inner barrel bites into the conductor strands for a secure mechanical and electrical connection.
  • Funnel Entry: Funnel-shaped wire entry guides stranded conductors into the barrel for consistent, reliable crimps.
  • Ring Tongue Design: Ring terminal design allows fast installation and removal on a stud without disconnecting adjacent wiring.
  • Packaging: Supplied in a bag of 25 terminals for convenient stocking and installation.

Technical Specifications

  • Dimension - Bolt Size fraction: #10
  • Product Material: Copper
  • Product Family: COMPRESSION
  • Conductor - Copper Solid Size Range: 20 -18 AWG
  • Conductor - Copper Str Size Range: 20 AWG - 18 AWG
  • Trade Name: HYDENT™
  • PDF: Spec Sheet: https://hubbellcdn.com/specsheet/BRDY-TP1810RBG25-SPEC-EN.pdf

Typical Applications

  • Panelboard and Terminal Block Wiring
  • Control Panel and Switchgear Connections
  • Motor and Equipment Lead Terminations
  • Commercial and Industrial Electrical Installations
  • Grounding and Bonding Connections
  • Low-Voltage Control and Instrumentation Wiring

Why Burndy?

Burndy's HYDENT™ ring terminals are built with copper construction, deep V-groove serrations, and a funnel entry designed for consistent, secure crimp connections. The vinyl-insulated design and #10 stud compatibility make the TP1810RBG25 a dependable choice for professional electrical and panel-building work where reliable, code-compliant compression terminations are essential.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Dimension - Bolt Size fraction:
#10
Insulation Type:
Vinyl
Connector Type:
Ring Terminal
Conductor - Copper Solid Size Range:
20 -18 AWG
Conductor - Copper Str Size Range:
20 AWG - 18 AWG
Product Type:
Ring Terminal
Trade Name:
HYDENT™
Product Material:
Copper
Department:
Electrical
Product Subgroup:
Lugs & Terminals
Product Group:
Wire Connectors & Terminals

Burndy TP1810RBG25 – Frequently Asked Questions

1) What wire size does the Burndy TP1810RBG25 ring terminal take?
The TP1810RBG25 is a copper compression ring terminal sized for 20 to 18 AWG copper conductors, and that range applies to both solid and stranded copper. Outside that window the crimp will not hold correctly, so 16 AWG and larger control wire needs the next barrel size up rather than this one.
2) Will this Burndy ring terminal fit a #10 stud on my terminal block?
Yes. The ring tongue is punched for a #10 stud or screw, which is the common size on panelboard neutral bars, terminal blocks and equipment ground studs. It will not seat on a 1/4-20 stud, and on a smaller #6 or #8 screw the ring will slop around under the washer.
3) Ring terminal or fork (spade) terminal for control panel wiring?
A ring tongue like the TP1810RBG25 has to come off the stud completely to be removed, which is exactly why it is used where vibration or a loose screw would otherwise let the conductor walk out. A fork terminal slides out sideways under a loosened screw and is faster for service work on crowded terminal strips. For motor leads, switchgear and equipment terminations, the closed ring is the one specified.
4) Is the crimp on this Burndy terminal insulated, or do I need heat shrink over it?
The barrel carries a vinyl insulating sleeve, so the finished crimp is covered without adding heat shrink. Vinyl is the standard general-purpose sleeve for panel and control wiring; if the termination sits where it needs strain relief or a moisture seal, you want a nylon or adhesive-lined heat-shrink terminal instead.
5) Can I use this on aluminum control wire?
No. The TP1810RBG25 barrel is copper and the rated conductor range covers copper only, solid or stranded. Aluminum conductors need a terminal rated AL or AL/CU with the appropriate inhibitor compound.
6) Is this a compression terminal that needs a crimp tool, or can it be installed with pliers?
It is a compression terminal and belongs in a proper crimp tool matched to insulated barrels. Pliers will flatten the vinyl sleeve and leave the serrations only partly engaged with the strands, which is the connection that fails later under vibration. Burndy lists this part in its COMPRESSION product family.
7) Why does the Burndy HYDENT terminal have a funnel entry and serrated barrel?
The funnel-shaped mouth gathers stranded conductor so individual strands do not fold back outside the barrel as you insert the wire, which is the usual cause of a weak crimp on 18 AWG stranded. Inside, deep V-groove serrations bite the strands so the connection holds electrically and mechanically under vibration. Both are part of Burndy's HYDENT compression terminal line.
8) How many Burndy TP1810RBG25 terminals come in a bag?
Each bag holds 25 of the 20-18 AWG, #10 stud ring terminals. That is the packaged quantity for the TP1810RBG25, which suits panel shop stocking or a service truck rather than production-run volumes.
