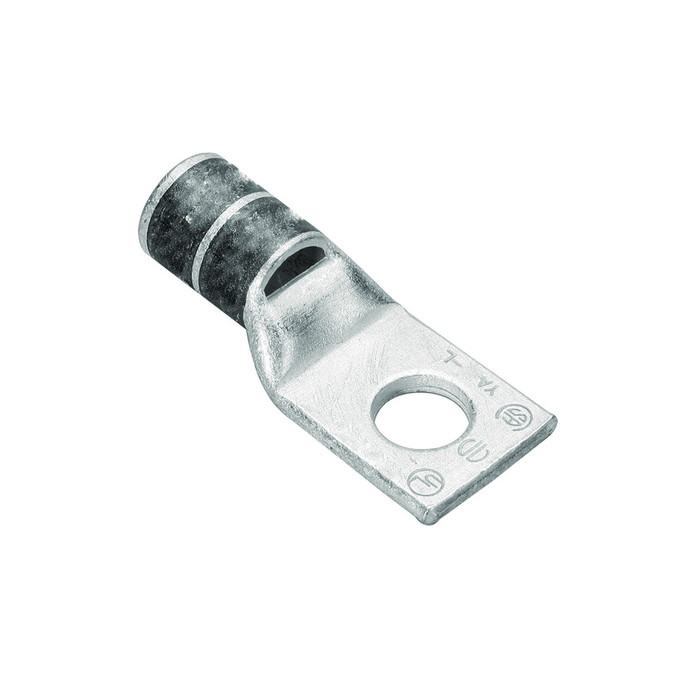

Burndy YA1CLBOX Copper Compression Lug Terminal, 1-Hole, 1 AWG, Tin-Plated

Burndy YA1CLBOX Copper Compression Lug Terminal, 1-Hole, 1 AWG, Tin-Plated

(No reviews yet) Write a Review

Model: YA1CLBOX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy YA1CLBOX Copper Compression Lug Terminal, 1-Hole, 1 AWG, Tin-Plated

The Burndy YA1CLBOX is a copper compression lug terminal engineered for code conductor terminations, featuring a standard barrel sized for 1 AWG copper conductors and a single 1-hole mounting pad drilled for a 5/16" stud. Finished with an electro-tin plating for corrosion resistance, this HYLUG™ series terminal is rated 600V minimum (up to 35,000V / 35 kV) and carries UL and CSA listings for use in commercial and industrial electrical systems.

Key Features

  • Trade Size: Sized for 1 AWG copper conductors, ideal for code conductor terminations.
  • Durable Construction: Copper barrel construction with electro-tin plating for corrosion resistance and reliable conductivity.
  • Chamfered Barrel: Chamfered barrel style eases conductor insertion during installation.
  • Standard Barrel, 1-Hole Mounting: Single-hole mounting pad drilled for a 5/16" stud (0.33" hole size) for a secure bolted connection.
  • Straight Tongue: Straight tongue angle for in-line wiring layouts.
  • Voltage Rating: Rated 600V minimum, up to 35,000V (35 kV).
  • Compact Dimensions: 1.94" (49 mm) overall length with a 15/16" strip length and 0.68" pad width.

Certifications & Compliance

  • UL Listed
  • CSA Approved

Technical Specifications

  • Series: Hylug
  • Trade Name: HYLUG™
  • Sub Brand: HYLUG
  • Mounting Holes: 1
  • Application: For Code Conductor
  • Product Details: Standard Barrel, Tin Plated
  • Plating Type: Electro-Tin plated
  • Feature - Barrel Style: Chamfered
  • Physical Attribute - Tongue Angle: Straight
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000
  • Rating - KVA: 35 kV
  • Certification - CSA Approved: Yes
  • UL Listed: Yes
  • Dimension - Length Overall inch: 1.94 in
  • Dimension - L Length Overall mm: 49 mm
  • Dimension - Bolt Hole Size inch: 0.33 in
  • Dimension - Hole Size mm: 8 mm
  • Dimension - Strip Length inch: 15/16
  • Dimension - Pad Width inch: 0.68 in
  • Dimension - Outside Diameter inch: 0.46 in
  • Minimum Pack Quantity: 1
  • UPC: 781810551257

Typical Applications

  • Code Conductor Terminations
  • Commercial and Industrial Electrical Installations
  • Panelboard and Switchgear Wiring
  • Grounding and Bonding Connections
  • Utility and Power Distribution Systems

Why Burndy?

Burndy's YA1CLBOX HYLUG™ compression terminal combines a chamfered copper barrel with electro-tin plating for dependable, corrosion-resistant connections. Backed by UL Listing and CSA Approval and rated up to 35,000V, this terminal delivers the code-compliant performance electrical professionals require for critical conductor terminations.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Wire Size:
1 AWG
Mounting Holes:
1
Plating:
Tin Plated
Termination Method:
Compression
Insulated:
Yes
Series:
Hylug
Physical Attribute - Number of Holes:
1
Physical Attribute - Tongue Type:
Standard
Product Details:
Standard Barrel, Tin Plated
Dimension - Length Overall inch:
1.94 in
Dimension - Stud Size fraction:
5/16
UPC 12 Digit:
7818105512577
Dimension - Stud Size inch:
5/16
Conductor - Material:
Copper
Application:
For Code Conductor
Dimension - L Length Overall mm:
49 mm
Standards - RoHS Compliance Status:
CM
Plating Type:
Electro-Tin plated
Certification - CSA Approved:
Yes
Dimension - Bolt Hole Size inch:
0.33 in
Certification - cULus:
No
Dimension - N inch:
0.34 in
Trade Name:
HYLUG™
Rating - Minimum Voltage:
600
Plated:
Y
Color Code:
Green
Feature - Barrel Style:
Chamfered
Dimension - B Length fraction:
7/8 in
Certification - ETL:
No
Conductor - Copper Str Size:
1 AWG
Voltage - Maximum:
35000
UPC:
781810551257
Connector Type:
STANDARD BARREL
Physical Attribute - Tongue Angle:
Straight
Dimension - Hole Size inch:
0.33 in
Rating - KVA:
35 kV
Certification - UL Recognized:
No
Dimension - Outside Diameter inch:
0.46 in
Product Type:
Terminal
Minimum Pack Quantity:
1
Feature - Barrel Type:
Standard
Dimension - Pad Width inch:
0.68 in
Dimension - Z inch:
0.36 in
UL Listed:
Yes
Dimension - Hole Size mm:
8 mm
Dimension - Strip Length inch:
15/16
Sub Brand:
HYLUG
Product Material:
Copper
