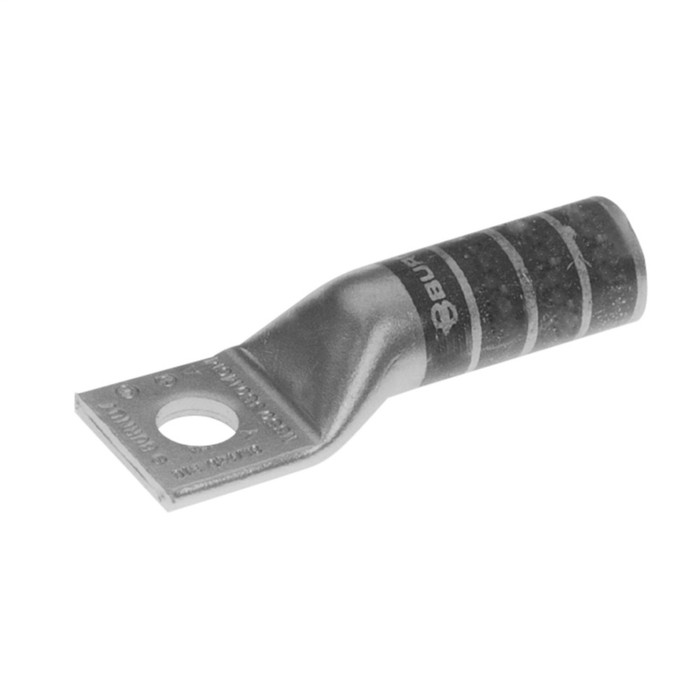

Burndy YA25N Copper Compression Terminal Lug, 1/0 AWG, 1-Hole, Long Barrel

Burndy YA25N Copper Compression Terminal Lug, 1/0 AWG, 1-Hole, Long Barrel

(No reviews yet) Write a Review

Model: YA25N

In Stock (leaves warehouse same day if ordered before 3pm ET)

$10.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy YA25N Copper Compression Terminal Lug, 1/0 AWG, 1-Hole, Long Barrel

The Burndy YA25N is a copper compression terminal lug engineered for 1/0 AWG copper conductors, featuring a 1-hole, 1/2" stud mounting pad and a long, chamfered barrel for a secure crimp connection. Part of Burndy's HYLUG™ series, this lug is tin-plated for corrosion resistance and is UL Listed and CSA Approved, rated for a minimum of 600V. It is designed for code conductor applications where a reliable, code-compliant termination is required.

Key Features

  • Conductor Size: Sized for 1/0 AWG copper (100 (61) Navy) stranded conductors.
  • Durable Copper Construction: Solid copper barrel with a chamfered, long-barrel design for easy conductor insertion and a secure compression crimp.
  • 1-Hole Mounting: Single mounting hole with a 1/2" stud size (0.56" hole diameter / 14mm) and a straight, standard tongue for straightforward bus or panel connections.
  • Electrical Rating: Rated for a minimum of 600V, with a 35kV maximum voltage rating for demanding power distribution applications.
  • Tin-Plated Finish: Tin - electro plated finish resists corrosion and maintains a reliable, low-resistance connection over time.
  • Compact Dimensions: Designed for a 1-7/16" wire strip length, with an overall length of 3.05" (77mm) and a 0.83" pad width.

Certifications & Compliance

  • UL Listed
  • CSA Approved

Technical Specifications

  • Mounting Holes: 1
  • Dimension - Strip Length inch: 1-7/16
  • Physical Attribute - Tongue Angle: Straight
  • UPC: 781810018880
  • Dimension - Outside Diameter inch: 0.51 in
  • Dimension - Stud Size inch: 1/2
  • Physical Attribute - Tongue Type: Standard
  • Conductor - Copper Str Size: 1/0
  • UL Listed: Yes
  • Dimension - D inch: 1.27 in
  • Dimension - Hole Size inch: 0.56
  • Dimension - Length Overall inch: 3.05 in
  • Dimension - Bolt Hole Size inch: 0.52 in
  • Dimension - B Length fraction: 1-3/8 in
  • Application: For Code Conductor
  • Plating Type: Tin - Electro Plated
  • Dimension - Pad Width inch: 0.83 in
  • Rating - Minimum Voltage: 600
  • Rating - KVA: 35 kV
  • Certification - CSA Approved: Yes

Typical Applications

  • Electrical Panel and Switchgear Terminations
  • Industrial Power Distribution Wiring
  • Commercial Electrical Installations
  • Code Conductor Grounding and Bonding Connections

Why Burndy?

Burndy's YA25N compression lug, part of the HYLUG™ line, is built with a solid copper barrel and a tin-plated finish to deliver a corrosion-resistant, low-resistance connection for 1/0 AWG copper conductors. Backed by UL Listing and CSA Approval and rated for a minimum of 600V, it gives electricians and contractors a dependable, code-compliant termination for demanding electrical work.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Wire Size:
1/0 AWG
Mounting Holes:
1
Plating:
Tin Plated
Termination Method:
Compression
Dimension - Strip Length inch:
1-7/16
Standards - RoHS Compliance Status:
CM
Minimum Pack Quantity:
1
Physical Attribute - Tongue Angle:
Straight
UPC:
781810018880
Certification - UL Recognized:
No
Connector Type:
LONG BARREL
Dimension - Outside Diameter inch:
0.51 in
Dimension - Stud Size inch:
1/2
Product Details:
Long Barrel, Tin Plated
Physical Attribute - Tongue Type:
Standard
Conductor - Copper Str Size:
1/0
Conductor - Copper Str Navy Size:
100 (61) Navy
Color Code:
Pink
UL Listed:
Yes
Dimension - D inch:
1.27 in
Certification - cULus:
No
Dimension - Hole Size inch:
0.56
Dimension - Length Overall inch:
3.05 in
UPC 12 Digit:
7818100188800
Certification - ETL:
No
Feature - Barrel Type:
Long
Dimension - L Length Overall mm:
77 mm
Dimension - Bolt Hole Size inch:
0.52 in
Conductor - Copper Str Size Range:
1/0 AWG
Dimension - B Length fraction:
1-3/8 in
Die Index:
12
Dimension - N inch:
0.63 in
Application:
For Code Conductor
Plating Type:
Tin - Electro Plated
Dimension - Hole Size mm:
14 mm
Dimension - Z inch:
0.64 in
Trade Name:
HYLUG™
Physical Attribute - Number of Holes:
1
Dimension - Pad Width inch:
0.83 in
Product Type:
Terminal
Voltage - Maximum:
35000
Feature - Barrel Style:
Chamfered
Conductor - Material:
Copper
Sub Brand:
HYLUG
Rating - Minimum Voltage:
600
Rating - KVA:
35 kV
Conductor - Copper Str Navy Size Range:
100 (61) Navy
Certification - CSA Approved:
Yes
Product Material:
Copper
Product Size:
1/2"
