Burndy YA282LN Copper 2-Hole Compression Lug, Standard Barrel

Burndy YA282LN Copper 2-Hole Compression Lug, Standard Barrel

(No reviews yet) Write a Review

Model: YA282LN

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy YA282LN Copper 2-Hole Compression Lug, Standard Barrel

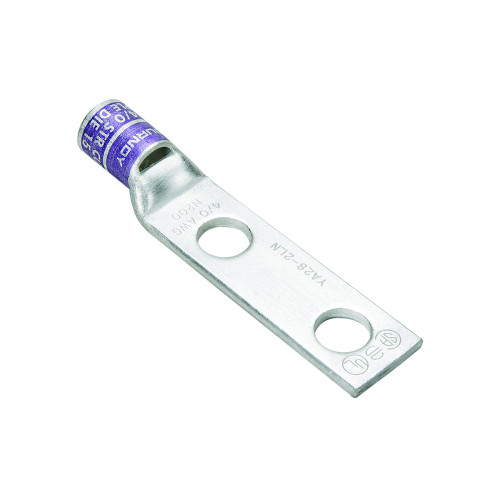

The Burndy YA282LN is a copper compression terminal lug from the HYLUG™ series, sized for 4/0 AWG copper conductors and built with a 2-hole mounting pad on a 1/2" stud, standard barrel, and tin-plated finish. Rated for a minimum of 600V with an insulation class up to 35kV (35 kV), this lug is designed for code conductor terminations in commercial and industrial power distribution systems.

Key Features

  • Conductor Size: Sized for 4/0 AWG copper conductors, 200 (61) Navy stranding class, for code conductor terminations.
  • 2-Hole Mounting: 2-hole mounting pad with a 1/2" stud/bolt size and a 0.52" (14 mm) bolt hole diameter.
  • Copper Construction: Solid copper barrel and pad deliver high conductivity and long-term durability.
  • Tin-Plated Finish: Tin plating helps resist corrosion and maintains a reliable electrical connection.
  • Standard Barrel Design: Straight tongue angle with a standard barrel configuration for code-conductor compression connections and Die Index 15 tooling.
  • Compact Dimensions: 4.41" (112 mm) overall length, 1.02" pad width, and 0.69" outside diameter.
  • Voltage Rating: Rated for a minimum of 600V, with an insulation class up to 35kV.

Technical Specifications

  • Mounting Holes: 2
  • Insulated: Yes
  • Dimension - Hole Size mm: 14 mm
  • Die Index: 15
  • Standards - RoHS Compliance Status: CM
  • Minimum Pack Quantity: 1
  • Dimension - L Length Overall mm: 112 mm
  • Plated: Y
  • Dimension - Bolt Hole Size inch: 0.52 in
  • Product Length: 4.41 in
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - Z inch: 0.65 in
  • Dimension - Pad Width inch: 1.02 in
  • Certification - ETL: No
  • Conductor - Copper DLO Size Range: N/A
  • Color Code: Purple
  • Rating - Minimum Voltage: 600
  • Conductor - Copper Str Navy Size: 200 (61) Navy
  • Physical Attribute - Tongue Angle: Straight
  • Sub Brand: HYLUG
  • Dimension - Length Overall inch: 4.41 in
  • Dimension - B Length fraction: 7/8 in
  • Dimension - N inch: 0.63 in
  • Dimension - Outside Diameter inch: 0.69 in
  • Voltage - Maximum: 35000
  • Certification - UL Recognized: No
  • UPC: 781810503522
  • Physical Attribute - Number of Holes: 2
  • Dimension - B Length inch: 0.88 in
  • Product Bolt Size: 1/2 in
  • Trade Name: HYLUG™
  • Application: For Code Conductor
  • Conductor - Copper Str Navy Size Range: 200 (61) Navy
  • Rating - KVA: 35 kV
  • Certification - cULus: No
  • Dimension - D inch: 3.03 in
  • Dimension - Stud Size inch: 1/2

Typical Applications

  • Commercial and Industrial Power Distribution
  • Panelboard and Switchgear Terminations
  • Code Conductor Compression Connections
  • Grounding and Bonding Applications

Why Burndy?

Burndy is a recognized name in copper compression connectors, and the YA282LN HYLUG™ delivers solid copper construction, a tin-plated finish, and a 2-hole standard-barrel design built for demanding code-conductor terminations. With a 600V minimum voltage rating and a 35kV insulation class, this lug supports dependable, professional-grade electrical connections for commercial and industrial installations.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Wire Size:
4/0 AWG
Mounting Holes:
2
Plating:
Tin Plated
Termination Method:
Compression
Insulated:
Yes
Dimension - Hole Size mm:
14 mm
Die Index:
15
Standards - RoHS Compliance Status:
CM
Minimum Pack Quantity:
1
Dimension - L Length Overall mm:
112 mm
Plated:
Y
Dimension - Bolt Hole Size inch:
0.52 in
Product Length:
4.41 in
Conductor - Material:
Copper
Dimension - Bolt Size fraction:
1/2
Dimension - Z inch:
0.65 in
Dimension - Pad Width inch:
1.02 in
Conductor - Copper Str Size:
4/0 AWG
Certification - ETL:
No
Product Details:
Standard Barrel, Tin Plated
Color Code:
Purple
Rating - Minimum Voltage:
600
Conductor - Copper Str Navy Size:
200 (61) Navy
Physical Attribute - Tongue Angle:
Straight
Sub Brand:
HYLUG
Dimension - Length Overall inch:
4.41 in
Dimension - B Length fraction:
7/8 in
Physical Attribute - Tongue Type:
Standard
Dimension - N inch:
0.63 in
Dimension - Outside Diameter inch:
0.69 in
Voltage - Maximum:
35000
Certification - UL Recognized:
No
UPC:
781810503522
Feature - Barrel Type:
Standard
Physical Attribute - Number of Holes:
2
Dimension - B Length inch:
0.88 in
Product Bolt Size:
1/2 in
Conductor - Copper Str Size Range:
4/0 AWG
Product Type:
Compression Lug
Trade Name:
HYLUG™
Connector Type:
STANDARD BARREL
Application:
For Code Conductor
Conductor - Copper Str Navy Size Range:
200 (61) Navy
Rating - KVA:
35 kV
Certification - cULus:
No
Dimension - D inch:
3.03 in
Dimension - Stud Size inch:
1/2
Product Material:
Copper
Product Size:
1/2"
