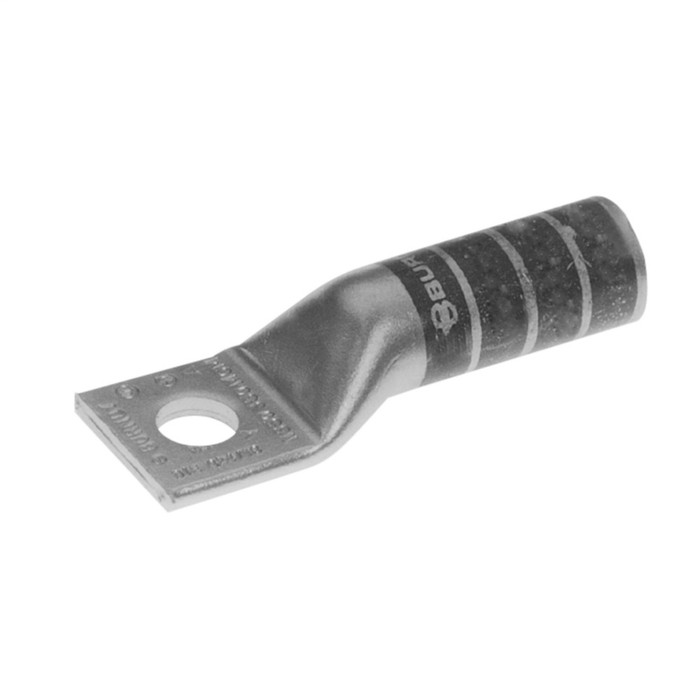

Burndy YA30 HYLUG 300 kcmil Copper 1-Hole Compression Lug
The Burndy YA30 is a HYLUG™ compression lug engineered for 300 kcmil copper conductors, featuring a one-hole pad, 1/2" stud size, and a long barrel with an internal chamfer for smooth conductor entry. Rated up to 35kV and UL/CSA listed for 90°C service, this tin-plated terminal uses a white color-code identification for quick die matching with die index 17 or 298. Built for demanding electrical distribution and industrial wiring applications requiring a permanent, code-conductor termination.
Key Features
- Conductor & Mounting: Sized for 300 kcmil copper conductor with a 1-hole pad and 1/2" stud size for secure installation.
- Durable Construction: Copper body with a tin-plated (electro-plated) finish for corrosion resistance and reliable conductivity.
- Long Barrel, Internal Chamfer: Long barrel design with internal chamfer eases conductor insertion and improves compression contact.
- Compression Termination: Compression-style connection using die index 17 or 298 for a secure, code-conductor termination.
- Voltage & Temperature Rating: Rated up to 35kV at 90°C for demanding distribution circuits.
- White Color Code: White color-code marking simplifies die and lug identification in the field.
- Standard Tongue: Standard tongue type with a straight tongue angle for consistent hardware alignment.
Certifications & Compliance
- UL Listed
- CSA Approved
- Meets UL468A-468B Industry Standards
- Rated 90°C, Up to 35kV
Technical Specifications
- Product Material: Copper
- Termination Method: Compression
- Number of Holes: 1
- Stud Size: 1/2 in
- Tongue Type: Standard, Straight
- Barrel Style: Chamfered
- Plating Type: Tin - Electro Plated
- Die Index: 17;298
- Pad Width: 1.20 in
- Hole Size: 0.53 in (13 mm)
- Length Overall: 3.69 in (94 mm)
- Strip Length: 2-1/16 in
- Voltage Rating: Up to 35 kV (35000V max)
- Industry Standards Met: UL468A-468B
- UPC: 781810504550
Typical Applications
- Electrical Substation and Distribution Wiring
- Medium-Voltage Cable Termination
- Industrial and Commercial Power Systems
- Code Conductor Compression Connections
- Panel and Switchgear Lug Terminations
Why Burndy?
Burndy's YA30 HYLUG™ lug is built from copper with a tin-plated finish and is UL Listed and CSA Approved, rated 90°C up to 35kV per UL468A-468B, delivering the reliable, code-compliant termination professionals expect from the HYLUG line. The long-barrel, internally chamfered design and precise die-index matching (17 or 298) ensure consistent, secure compression connections for critical electrical infrastructure.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- BURNDY-20260915
- Wire Size:
- 300 KCMIL
- Mounting Holes:
- 1
- Plating:
- Tin Plated
- Termination Method:
- Compression
- Insulated:
- Yes
- Dimension - Outside Diameter inch:
- 0.81 in
- Rating - KVA:
- 35 kV
- Physical Attribute - Tongue Type:
- Standard
- Plated:
- Y
- Dimension - B Length fraction:
- 2 in
- Standards - RoHS Compliance Status:
- CM
- Physical Attribute - Tongue Angle:
- Straight
- Dimension - L Length Overall mm:
- 94 mm
- Certification - cULus:
- No
- Physical Attribute - Number of Holes:
- 1
- Feature - Barrel Type:
- Long
- Dimension - Hole Size mm:
- 13 mm
- Connector Type:
- LONG BARREL
- UL Listed:
- Yes
- Dimension - Bolt Size fraction:
- 1/2
- Dimension - N inch:
- 0.53 in
- Minimum Pack Quantity:
- 1
- Feature - Barrel Style:
- Chamfered
- Dimension - Pad Width inch:
- 1.20 in
- Dimension - Stud Size inch:
- 1/2
- Die Index:
- 17;298
- UPC:
- 781810504550
- Dimension - Hole Size inch:
- 0.53
- Standards - Industry Standards Met:
- UL468A-468B
- Dimension - B Length inch:
- 2.00 in
- Product Details:
- Long Barrel, Tin Plated
- Dimension - Strip Length inch:
- 2-1/16
- Trade Name:
- HYLUG™
- Rating - Minimum Voltage:
- 600
- Plating Type:
- Tin - Electro Plated
- Color Code:
- White
- Dimension - Bolt Hole Size inch:
- 0.52 in
- Certification - UL Recognized:
- No
- Dimension - Length Overall inch:
- 3.69 in
- Product Type:
- Compression Lug
- Industry Standard(s):
- UL468A-468B
- Conductor - Copper Str Size:
- 300 kcmil
- Sub Brand:
- HYLUG
- Certification - CSA Approved:
- Yes
- Voltage - Maximum:
- 35000
- Certification - ETL:
- No
- Product Material:
- Copper
- Product Size:
- 1/2"
- Department:
- Electrical
- Product Group:
- Wire Connectors & Terminals
- Product Subgroup:
- Lugs & Terminals
- Conductor Material:
- Copper
- Dimension - Z inch:
- 0.55 in
- Application:
- For Code Conductor
Burndy YA30 – Frequently Asked Questions
1) Will the Burndy YA30 lug take 300 kcmil copper cable?
That is exactly what it is sized for: 300 kcmil stranded copper, code conductor. It is a copper-body compression lug, so it is for copper only, not aluminum. Strip the insulation back 2-1/16 inches so the conductor bottoms out in the long barrel.
2) Which die do I set my compression tool to for the YA30?
Die index 17 or 298. The lug is also marked with a white color code, so in the field you match the white die to the white lug rather than hunting for the number. Wrong die means an out-of-spec crimp on a 300 kcmil termination.
3) Can I use a 300 kcmil compression lug on a 15kV or 25kV medium-voltage termination?
The YA30 is rated up to 35 kV, which covers 15kV and 25kV class cable terminations as well as standard 600V work. It is UL Listed and CSA Approved to UL468A-468B.
4) Is the Burndy YA30 a mechanical set-screw lug or a crimp lug?
Crimp. Termination method is compression, so it needs a hydraulic or battery compression tool with die 17 or 298. If you want a lug you can install with a hex key and no tooling, you need a mechanical set-screw lug instead, not the YA30.
5) Is this lug good for a 90 degree C conductor termination?
Rated for 90 degrees C service, so it will not derate a 90 C rated conductor at the termination. Copper body, tin electro-plated for corrosion resistance on the contact surfaces.
6) What is the difference between a long barrel lug like the YA30 and a standard barrel lug?
Long barrel gives more crimp surface along the conductor, usually taking two crimps instead of one, which is what you want on medium-voltage and high-vibration industrial feeders. The YA30 is the long barrel version with an internal chamfer at the mouth so 300 kcmil strands feed in without birdcaging. A short or standard barrel lug does the same electrical job at 600V but gives you less mechanical hold.
7) Is the YA30 RoHS compliant for a spec job?
RoHS status is listed as CM (compliant with exemptions) for the YA30 HYLUG. It also carries UL Listing and CSA approval against UL468A-468B, which is normally what a submittal package is asking for on a lug.
