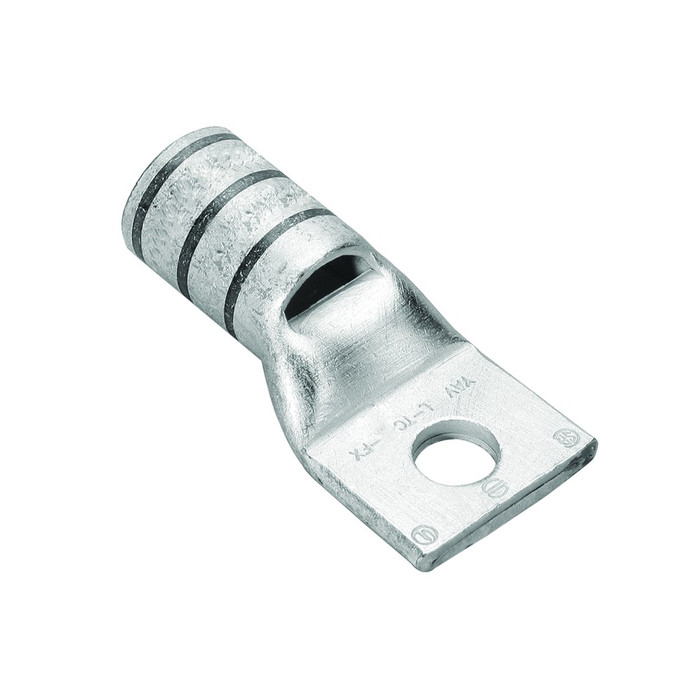

Burndy YA34LTC12FX HYLUG Copper Compression Lug, 1-Hole, 1/2" Stud, 350 kcmil
The Burndy YA34LTC12FX is a HYLUG™ copper compression lug built for 350 kcmil G,H,I,K,M and 373 (925/#24) DLO copper conductors. This 1-hole terminal features a standard barrel with a 1/2" stud, skived and chamfered for smooth compression termination using die index 19. Rated from a 600V minimum up to 35kV (35,000V) maximum with a 90°C temperature rating, the YA34LTC12FX is UL/CSA listed and CSA approved for demanding flexible-conductor power connections.
Key Features
- Trade Size: 1/2" stud with a single mounting hole for 350 kcmil G,H,I,K,M and 373 kcmil DLO copper conductors.
- Durable Construction: Solid copper conductor material delivers high conductivity and long-term reliability.
- Compression Termination: Standard barrel, chamfered and skived, sized for die index 19 compression tooling.
- Finish: Tin-plated copper surface resists corrosion and improves long-term connection integrity.
- Voltage Rating: Rated from a 600V minimum up to a 35kV (35,000V) maximum for medium-voltage applications.
- Temperature Rating: 90°C continuous operating temperature rating.
- Application: Engineered for flex conductor (DLO cable) terminations, blue color-coded for 19 die index identification.
Certifications & Compliance
- UL/CSA Listed
- CSA Approved
- RoHS Compliant
Technical Specifications
- Mounting Holes: 1
- Product Material: Copper
- Termination Method: Compression
- Insulated: Yes
- Dimension - B Length: 1-1/4 in (1.27 in)
- Die Index: 19
- Dimension - N: 0.53 in
- Rating - KVA: 35 kV
- Rating - Minimum Voltage: 600V
- Application: For Flex Conductor
- Bolt/Stud Size: 1/2"
- Length Overall: 3.12 in (79 mm)
- CSA Approved: Yes
- Plating Type: Tin
- Pad Width: 1.55 in
- RoHS Compliance Status: CM
- Conductor Material: Copper
- Trade Name: HYLUG™
- Number of Holes: 1
- Bolt Hole Size: 0.52 in
- Voltage - Maximum: 35000
- Dimension - Z: 0.55 in
- Copper DLO Size Range: 373 kcmil
- Strip Length: 1-5/16 in
- Product Type: Terminal
- Barrel Style: Chamfered
Typical Applications
- Medium-Voltage Power Distribution
- Flexible (DLO) Cable Terminations
- Industrial and Utility Electrical Connections
- Compression Lug Terminations up to 35kV
Why Burndy?
Burndy's HYLUG™ series delivers solid copper construction, tin-plated corrosion resistance, and UL/CSA-listed compression terminations engineered for reliable, code-compliant performance in demanding electrical connections. With precise die-index compatibility and standardized barrel dimensions, the YA34LTC12FX ensures consistent, dependable compression terminations for flexible conductor applications.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- BURNDY-20260915
- Mounting Holes:
- 1
- Plating:
- Tin Plated
- Termination Method:
- Compression
- Insulated:
- Yes
- Dimension - B Length fraction:
- 1-1/4 in
- Physical Attribute - Tongue Type:
- Standard
- Conductor - Copper Flex K Size:
- 350 kcmil
- Die Index:
- 19
- Conductor - Copper Flex M Size Range:
- 350 kcmil
- Dimension - N inch:
- 0.53 in
- Rating - KVA:
- 35 kV
- Rating - Minimum Voltage:
- 600
- Application:
- For Flex Conductor
- Dimension - Bolt Size fraction:
- 1/2
- Dimension - Length Overall inch:
- 3.12 in
- Certification - CSA Approved:
- Yes
- Plating Type:
- Tin
- Dimension - Pad Width inch:
- 1.55 in
- Standards - RoHS Compliance Status:
- CM
- Conductor - Material:
- Copper
- Trade Name:
- HYLUG™
- Physical Attribute - Number of Holes:
- 1
- Dimension - L Length Overall mm:
- 79 mm
- Conductor - Copper Flex M Size:
- 350 kcmil
- Dimension - Stud Size inch:
- 1/2
- Feature - Barrel Type:
- Standard
- Dimension - Bolt Hole Size inch:
- 0.52 in
- Dimension - B Length inch:
- 1.27 in
- Conductor - Copper Flex H Size Range:
- 350 kcmil
- UPC 12 Digit:
- 7818105432144
- Conductor - Copper Flex I Size:
- 350 kcmil
- Conductor - Copper Flex G Size:
- 350 kcmil
- Voltage - Maximum:
- 35000
- Conductor - Copper Flex G Size Range:
- 350 kcmil
- Conductor - Copper Flex I Size Range:
- 350 kcmil
- Dimension - Z inch:
- 0.55 in
- Conductor - Copper DLO Size Range:
- 373 kcmil
- Color Code:
- Blue
- Dimension - Strip Length inch:
- 1-5/16
- Product Type:
- Compression Lug
- Connector Type:
- STANDARD BARREL
- Product Details:
- Standard Barrel, Tin Plated
- Sub Brand:
- HYLUG
- Minimum Pack Quantity:
- 1
- Feature - Barrel Style:
- Chamfered
- UPC:
- 781810543214
- Conductor - Copper Flex H Size:
- 350 kcmil
- Conductor - Copper DLO Size:
- 373.7 (925/#24) DLO
- Product Material:
- Copper
- Product Size:
- 1/2"
