Burndy YAV10BOX HYLUG Ring Terminal Lug, Copper, #14-#10 AWG, Pack of 100

Burndy YAV10BOX HYLUG Ring Terminal Lug, Copper, #14-#10 AWG, Pack of 100

(No reviews yet) Write a Review

Model: YAV10BOX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$114.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy YAV10BOX HYLUG Ring Terminal Lug, Copper, #14-#10 AWG, 100-Pack

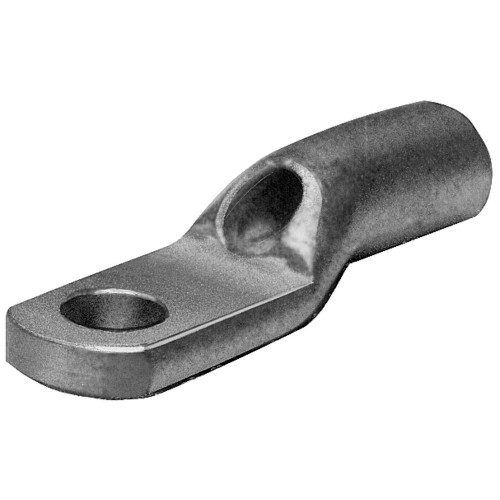

The Burndy YAV10BOX is a HYLUG™ copper compression ring terminal lug engineered for code conductor terminations in commercial and industrial electrical systems. This standard-barrel connector accepts #14-#10 AWG stranded (Str) and #12-#10 AWG solid (Sol) conductors on a #8-#10 stud, and carries a broad 600V-35kV voltage rating for versatile use across low- and medium-voltage applications. The tin-plated copper terminal features a single-hole ring design with an inspection window and a bevelled conductor entry for fast, verifiable installation. Supplied in a convenient 100-pack, the YAV10BOX delivers consistent, code-compliant compression connections engineered for professional electrical work.

Key Features

  • Wire Range: Accepts #14-#10 AWG stranded (Str) and #12-#10 AWG solid (Sol) code conductors.
  • Durable Construction: Copper barrel construction provides high conductivity and long-term reliability for compression terminations.
  • Connection Type: Compression-style ring terminal lug forms a permanent, code-conductor connection.
  • Voltage Rating: Rated 600V-35kV for a broad range of electrical applications.
  • Stud Size: #8-#10 stud accommodates standard mounting hardware.
  • Standard Barrel: Standard barrel design supports reliable, repeatable compression crimping.
  • Inspection Window: Single-hole ring design with an inspection window allows visual confirmation that the conductor is fully seated before crimping.
  • Bevelled Entry: Bevelled conductor entry eases wire insertion and reduces installation time.
  • Finish: Tin-plated copper construction for enhanced corrosion resistance.

Technical Specifications

  • Pack size (unit): 100
  • Trade Name: HYLUG™
  • Material: Copper
  • Connector Type: Ring Terminal

Typical Applications

  • Code Conductor Terminations
  • Panelboard and Switchboard Wiring
  • Grounding and Bonding Connections
  • Industrial and Commercial Electrical Installations
  • Standard Barrel Compression Connector Applications

Why Burndy?

Burndy's HYLUG™ ring terminal lugs are built from copper with a tin-plated finish for dependable, corrosion-resistant compression connections. The bevelled entry and inspection window design help ensure proper conductor seating, supporting consistent, code-compliant terminations for demanding commercial and industrial electrical installations. Rated 600V-35kV and sized for #14-#10 AWG stranded and #12-#10 AWG solid conductors on a #8-#10 stud, the YAV10BOX is engineered for dependable, professional-grade compression terminations.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260916
Pack size (unit):
100
Product Type:
Ring Terminal
Trade Name:
HYLUG™
Connector Type:
Ring Terminal
Product Material:
Copper
Department:
Electrical
Product Subgroup:
Lugs & Terminals
Product Group:
Wire Connectors & Terminals
Dimension - B Length inch:
0.40 in
Certification - cULus:
No
Certification - UL Recognized:
No
Feature - Barrel Type:
Standard
Conductor - Copper Str Size Range:
14 AWG-10 AWG
Certification - ETL:
No
Physical Attribute - Number of Holes:
1
Physical Attribute - Tongue Angle:
Straight
Physical Attribute - Tongue Type:
Ring
Certification - CSA Approved:
Yes
Minimum Pack Quantity:
50
Dimension - Strip Length inch:
7/16 in
Dimension - B Length fraction:
2/5
Plating Type:
Tin
Sub Brand:
HYLUG
Plated:
Y
UL Listed:
Yes
Dimension - Pad Width inch:
0.38 in
Standards - RoHS Compliance Status:
CM

Burndy YAV10BOX – Frequently Asked Questions

1) What wire sizes does the Burndy YAV10BOX ring terminal accept?
The YAV10BOX HYLUG takes #14 through #10 AWG stranded and #12 through #10 AWG solid code conductors. If your conductor is larger than #10, this barrel will not compress correctly and you need the next size up in the HYLUG range.
2) Is the Burndy YAV10BOX crimped or screwed onto the wire?
Compression only. The YAV10BOX is a standard-barrel compression lug, so it needs a crimp tool and die set to form the termination. There is no set screw, and once crimped the connection is permanent. If you want a reusable mechanical connection instead, use a set-screw lug rather than a HYLUG compression terminal.
3) What voltage is the Burndy YAV10BOX rated for?
Rated 600V through 35kV, so the same terminal covers low-voltage panel work and medium-voltage terminations.
4) Is the Burndy YAV10BOX copper lug plated for corrosion resistance?
Yes, the barrel is copper with a tin plating. Tin plating is what lets a copper lug sit against aluminum or steel bus hardware without the bare copper-to-dissimilar-metal corrosion you would otherwise get in damp or outdoor enclosures.
5) How do I verify the wire is fully seated before crimping a HYLUG terminal?
The YAV10BOX has an inspection window in the barrel, so you can see the conductor end through the opening and confirm full insertion before you close the die. The entry is also bevelled, which helps push stranded conductor in without birdcaging the strands.
6) Can I use the Burndy YAV10BOX for equipment grounding and bonding connections?
Yes. Grounding and bonding connections are among the listed applications for this copper ring terminal, along with panelboard and switchboard wiring. The #8-#10 ring tongue matches typical ground bar screw sizes for #14 to #10 conductors.
7) How many lugs come in a box of Burndy YAV10BOX?
100 pieces per box. That is the sell unit, so a single order line covers a full panel or switchboard fit-out rather than individual terminations.
8) What is the exact part number to order this Burndy ring terminal box under?
Order it as Burndy YAV10BOX. That designation is the 100-piece box of the HYLUG copper ring terminal; the trailing BOX is the packaging, not a separate model.
