Burndy YS29 Long Barrel Copper Compression Splice, 250 kcmil

Burndy YS29 Long Barrel Copper Compression Splice, 250 kcmil

(No reviews yet) Write a Review

Model: YS29

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

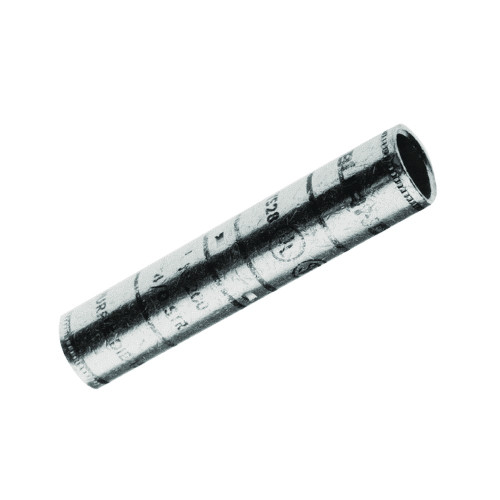

You may also like

Burndy YS29 Long Barrel Copper Compression Splice, 250 kcmil

The Burndy YS29 is a long barrel copper compression splice for 250 kcmil copper conductors, with an internal chamfer and tin-plated finish for corrosion resistance. Rated up to 35kV at 90°C, this UL/CSA listed splice uses a 16 die index and is color-coded yellow for fast ID. Part of Burndy's HYLINK series, it suits heavy-duty, higher-voltage copper connections.

Key Features

  • Conductor Size: Fits 250 kcmil (61-strand) copper conductors, Navy-coded for quick size ID.
  • Copper Construction: Solid copper body for high conductivity and long-term reliability.
  • Compression Termination: 16 die index compression with internal chamfer for smooth, secure conductor insertion.
  • Voltage Rating: Rated from 600V up to 35kV for higher-voltage copper systems.
  • Temperature Rating: 90°C operating rating.
  • Tin-Plated Finish: Electro-plated tin resists corrosion and maintains a reliable connection.
  • Yellow Color Code: Yellow coding allows fast visual ID of splice size in the field.
  • Chamfered Long Barrel: Chamfered long barrel simplifies conductor insertion.

Certifications & Compliance

  • UL Listed
  • CSA Approved
  • Meets UL468A-468B Industry Standards

Technical Specifications

  • Product Material: Copper
  • Termination Method: Compression
  • Series: Hylink
  • Dimension - Strip Length inch: 1-11/16
  • Plating Type: Tin - Electro Plated
  • Certification - CSA Approved: Yes
  • Feature - Barrel Style: Chamfered
  • Minimum Pack Quantity: 1
  • UPC 12 Digit: 7818105079577
  • Sub Brand: HYLINK
  • Conductor - Copper Str Navy Size: 250 (61) Navy
  • UL Listed: Yes
  • Rating - KVA: 35 kV
  • Standards - Industry Standards Met: UL468A-468B
  • Dimension - L Length Overall mm: 91 mm
  • Dimension - B Length inch: 1.58 in
  • Voltage - Maximum: 35000
  • Rating - Minimum Voltage: 600
  • Standards - RoHS Compliance Status: CM
  • Dimension - Length Overall inch: 3.58 in
  • Product Details: YS, Long Barrel
  • Application: For Heavy Duty Applications And Used At Higher Voltages Up To 35 KV
  • Trade Name: HYLINK™
  • Product Family: COMPRESSION
  • Product Type: Splice

Typical Applications

  • Heavy-Duty Industrial Electrical Connections
  • Higher-Voltage Copper Splicing Up To 35kV
  • Utility And Industrial Power Distribution
  • Commercial Installations Requiring UL/CSA Compliance

Why Burndy?

Burndy's HYLINK series delivers solid copper construction, tin-plated corrosion resistance, and UL/CSA listed performance for demanding compression splicing. With a 90°C rating and voltage up to 35kV, the YS29 meets reliability and code-compliance standards electricians depend on for heavy-duty copper connections.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Wire Size:
250 KCMIL
Plating:
Tin Plated
Termination Method:
Compression
Series:
Hylink
Dimension - Strip Length inch:
1-11/16
Plating Type:
Tin - Electro Plated
Certification - CSA Approved:
Yes
Feature - Barrel Style:
Chamfered
Minimum Pack Quantity:
1
UPC 12 Digit:
7818105079577
Feature - Barrel Type:
Long
Color Code:
Yellow
Sub Brand:
HYLINK
Conductor - Copper Str Navy Size:
250 (61) Navy
UL Listed:
Yes
Rating - KVA:
35 kV
UPC:
781810507957
Connector Type:
LONG BARREL
Standards - Industry Standards Met:
UL468A-468B
Dimension - L Length Overall mm:
91 mm
Conductor - Copper Str Size:
250 kcmil
Plated:
Y
Dimension - B Length inch:
1.58 in
Voltage - Maximum:
35000
Rating - Minimum Voltage:
600
Standards - RoHS Compliance Status:
CM
Dimension - Length Overall inch:
3.58 in
Product Details:
YS, Long Barrel
Trade Name:
HYLINK™
Industry Standard(s):
UL468A-468B
Product Type:
Splice
Product Material:
Copper
