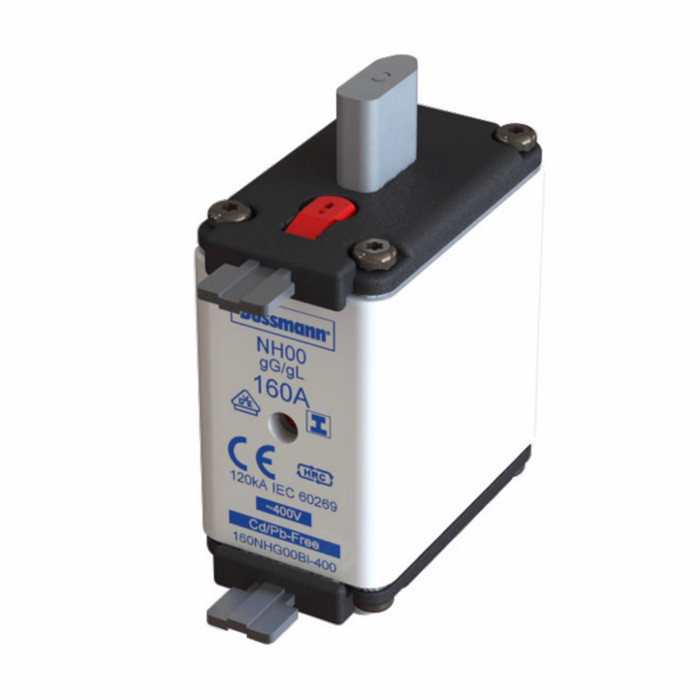

Bussmann 160NHG00BI-400 Eaton NH00 Low-Voltage Fuse, 400V 160A Class gL/gG

Bussmann 160NHG00BI-400 Eaton NH00 Low-Voltage Fuse, 400V 160A Class gL/gG

(No reviews yet) Write a Review

Model: 160NHG00BI-400

In Stock (leaves warehouse same day if ordered before 3pm ET)

$190.51
$163.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann 160NHG00BI-400 Eaton NH00 Low-Voltage Fuse, 400V 160A Class gL/gG

The Bussmann 160NHG00BI-400 is an Eaton series low-voltage NH00 fuse engineered for reliable overcurrent protection in industrial power distribution systems. Rated 400V and 160A with a 120 kAIC interrupt rating, this Class gL/gG fuse delivers combination cable and equipment protection, backed by a built-in fuse status indicator for fast visual verification of fuse condition. Its square-body NH00 construction with insulated metal gripping lugs (IMGL) is built for demanding industrial applications and is RoHS compliant.

Key Features

  • Voltage & Current Rating: Rated 400V AC at 160A for dependable low-voltage circuit protection.
  • High Interrupt Capacity: 120 kAIC short-circuit interrupt rating supports demanding, high-fault-current industrial systems.
  • Class gL/gG Utilization: General-purpose gL/gG rating provides combination cable protection and equipment protection.
  • NH00 Construction: Square-body NH00 fuse body with insulated metal gripping lugs (IMGL) for secure, safe handling and installation.
  • Fuse Status Indicator: Combination fuse status indicator allows quick visual confirmation of a blown fuse without removal.
  • Frequency Range: Rated for AC voltage systems from 45 Hz to 62 Hz.
  • Compact Footprint: Measures 79 mm long x 58 mm high x 30 mm wide for standard NH00 fuse bases and disconnects.

Certifications & Compliance

  • RoHS Compliant

Technical Specifications

  • Amperage Rating: 160 A
  • Voltage Rating: 400 V
  • Voltage Type: AC
  • Construction: NH00
  • Utilization Category: gL/gG (cable protection/equipment protection)
  • Fuse Shape: Square body
  • Insulated Metal Gripping Lugs (IMGL): Yes
  • Frequency Rating Min: 45 Hz
  • Frequency Rating Max: 62 Hz
  • Application: industrial
  • Compliances: RoHS Compliant
  • Packaging Type: Standard
  • Item Quantity: 3
  • Product Height: 58 mm
  • Product Length Depth: 79 mm
  • Product Width: 30 mm
  • Product Weight: 196.6666667 g

Typical Applications

  • Industrial Power Distribution Systems
  • Motor and Feeder Circuit Protection
  • Panelboards and Switchgear Assemblies
  • Cable and Equipment Overcurrent Protection

Why Bussmann?

Bussmann by Eaton engineers this NH00 fuse with a square-body construction, insulated metal gripping lugs, and a combination status indicator for safer, faster fault diagnosis on the plant floor. Backed by a 120 kAIC interrupt rating and RoHS-compliant construction, it delivers dependable, code-conscious overcurrent protection for industrial cable and equipment circuits.

Manufacturer Resources

Product Specs

Amperage Rating:
160 A
Application:
industrial
Breaking Capacity:
120 kA
Class:
Class C gL/gG
Compliances:
RoHS Compliant
Construction:
NH00
Frequency Rating Max:
62 Hz
Frequency Rating Min:
45 Hz
Fuse Indicator:
Combination fuse status indicator
Fuse Shape:
Square body
Insulated Metal Gripping Lugs Imgl:
Yes
Interrupt Rating:
120 kAIC
Packaging Type:
Standard
Product Height:
58 mm
Product Length Depth:
79 mm
Product Weight:
196.6666667 g
Product Width:
30 mm
Rated Switching Capacity:
120 kA
Utilization Category:
gL/gG (cable protection/equipment protection)
Voltage Rating:
400 V
Voltage Type:
AC
Product Group:
Fuses
Department:
Electrical
Product Subgroup:
Other Fuses
Product Type:
fuse
Product Details:
fuse
Item Quantity:
3
