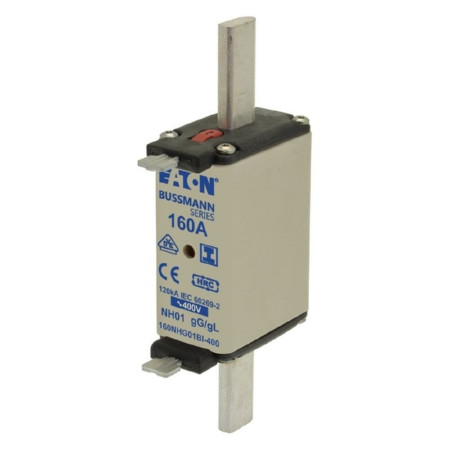

Bussmann 160NHG01BI-400 NH01 Low Voltage Fuse, 400V, 160A, Class gL/gG

Bussmann 160NHG01BI-400 NH01 Low Voltage Fuse, 400V, 160A, Class gL/gG

(No reviews yet) Write a Review

Model: 160NHG01BI-400

In Stock (leaves warehouse same day if ordered before 3pm ET)

$235.96
$217.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann 160NHG01BI-400 NH01 Low Voltage Fuse, 400V, 160A, Class gL/gG

The Bussmann 160NHG01BI-400 is an Eaton Bussmann series NH01 low voltage fuse rated 400V, 160A, with a 120 kAIC interrupt rating for demanding industrial power distribution applications. Built to Class C gL/gG utilization for combined cable and equipment protection, this square-body NH fuse features a combination fuse status indicator for quick visual verification of fuse condition. Insulated metal gripping lugs (IMGL) support safe handling and reliable connection in fuse switch-disconnectors and panelboards.

Key Features

  • Compact Square Body: NH01 construction measuring 135 mm length/depth x 58 mm height x 30 mm width for standard NH fuse holders and switch-disconnectors.
  • Insulated Metal Gripping Lugs (IMGL): Insulated lugs allow secure, safe manual handling during installation and replacement.
  • Class gL/gG Protection: Utilization category gL/gG delivers combined cable protection and equipment protection for general-purpose industrial circuits.
  • Electrical Rating: Rated 400V AC, 160A, with a 120 kAIC interrupt rating and 45-62 Hz frequency rating for robust short-circuit and overload protection.
  • Fuse Status Indicator: Combination fuse status indicator provides a visual cue of fuse operation, simplifying troubleshooting and maintenance.
  • Fuse Shape: Square body design for compatibility with standard NH-type fuse bases and disconnect switches.

Certifications & Compliance

  • RoHS Compliant

Technical Specifications

  • Amperage Rating: 160 A
  • Voltage Rating: 400 V
  • Voltage Type: AC
  • Construction: NH01
  • Fuse Shape: Square body
  • Utilization Category: gL/gG (cable protection/equipment protection)
  • Insulated Metal Gripping Lugs (IMGL): Yes
  • Frequency Rating Min: 45 Hz
  • Frequency Rating Max: 62 Hz
  • Product Height: 58 mm
  • Product Length/Depth: 135 mm
  • Product Width: 30 mm
  • Product Weight: 294.67 g
  • Application: industrial
  • Compliances: RoHS Compliant
  • Packaging Type: Standard
  • Item Quantity: 3

Typical Applications

  • Industrial Power Distribution Systems
  • Cable and Equipment Overcurrent Protection
  • Fuse Switch-Disconnectors and Panelboards
  • Low Voltage Switchgear Installations
  • Commercial and Industrial Electrical Renovation and New Construction

Why Bussmann?

Bussmann by Eaton engineers the 160NHG01BI-400 with insulated metal gripping lugs and a 120 kAIC interrupt rating to deliver dependable, code-compliant overcurrent protection for industrial power systems. The Class gL/gG utilization category and built-in fuse status indicator make this NH01 fuse a reliable choice for professionals who need clear, safe, and RoHS-compliant circuit protection.

Manufacturer Resources

Product Specs

Amperage Rating:
160 A
Application:
industrial
Breaking Capacity:
120 kA
Class:
Class C gL/gG
Compliances:
RoHS Compliant
Construction:
NH01
Frequency Rating Max:
62 Hz
Frequency Rating Min:
45 Hz
Fuse Indicator:
Combination fuse status indicator
Fuse Shape:
Square body
Insulated Metal Gripping Lugs Imgl:
Yes
Interrupt Rating:
120 kAIC
Packaging Type:
Standard
Product Height:
58 mm
Product Length Depth:
135 mm
Product Weight:
294.6666667 g
Product Width:
30 mm
Rated Switching Capacity:
120 kA
Utilization Category:
gL/gG (cable protection/equipment protection)
Voltage Rating:
400 V
Voltage Type:
AC
Product Group:
Fuses
Department:
Electrical
Product Subgroup:
Other Fuses
Product Type:
fuse
Product Details:
fuse
Item Quantity:
3
