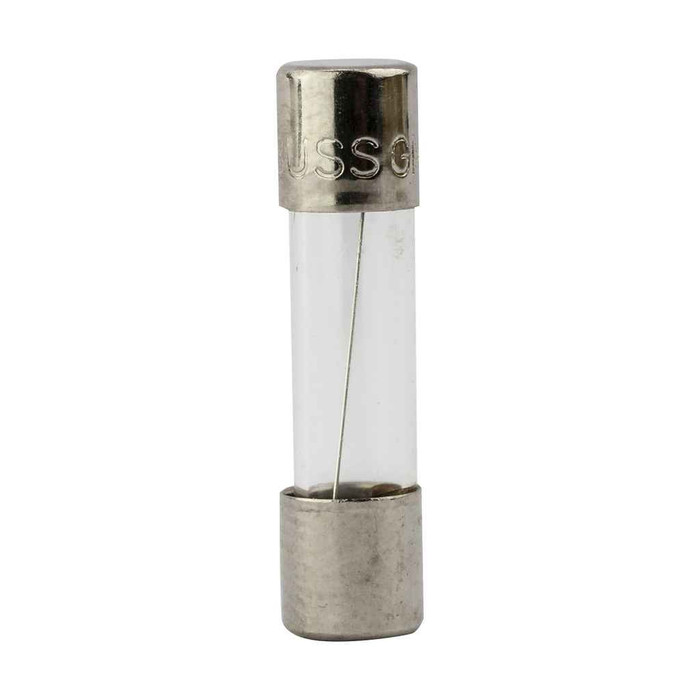

Bussmann GMA Fast-Acting Electronic Fuse, Glass Tube, 250VAC/32VDC

Bussmann GMA Fast-Acting Electronic Fuse, Glass Tube, 250VAC/32VDC

(No reviews yet) Write a Review

Model: GMA-1-R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann GMA Fast-Acting Electronic Fuse, Glass Tube, 250VAC/32VDC

The Bussmann GMA Fast-Acting Electronic Fuse series delivers reliable overcurrent protection for sensitive electronic circuits, available in amp ratings from 1A to 3A to match a range of applications. Each fuse features a durable glass tube body with nickel-plated brass endcaps and ferrule end x ferrule end connections, rated 250VAC and 32VDC for AC and DC circuits. With a compact .25" x .75" profile, RoHS compliance, and CE marking, the GMA series is built for professional electronic and control-panel protection.

Key Features

  • Amp Rating Options: Available in 1A and 3A ratings for precise overcurrent protection matched to the circuit's load.
  • Fast-Acting Response: Quick interruption with 60 min maximum at 135% and 2 min maximum at 200% protects against short circuits and overloads.
  • High Interrupt Rating: 35A at 250VAC and 10 kAIC at 125VAC ensures reliable fault clearing in demanding applications.
  • Dual Voltage Rating: 250VAC and 32VDC compatibility supports both AC and DC electronic circuits.
  • Glass Tube Construction: Durable glass body with nickel-plated brass endcaps ensures reliable performance and corrosion resistance.
  • Ferrule End Connections: Ferrule end x ferrule end termination for secure, standardized fuse holder compatibility.
  • Compact Dimensions: Small .25" x .75" profile fits tight spaces in electronic equipment and control panels.

Certifications & Compliance

  • RoHS Compliant
  • CE Marked

Technical Specifications

  • Available Amp Ratings: 1A, 3A
  • Connection: Ferrule end x ferrule end
  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 35A at 250 Vac, 10 kAIC at 125 Vac
  • Voltage Rating: 250 Vac, 32 Vdc (self certified)
  • Response Time: 60 min max at 135%, 2 min max at 200%
  • Product Material: Glass tube, nickel-plated brass endcaps
  • Dimensions: .25 IN H x .75 IN L x .25 IN W
  • Product Weight: .002 LB
  • Packaging Type: Standard

Typical Applications

  • Electronic Control Circuits
  • Instrumentation and Measurement Equipment
  • Power Supply Protection
  • Industrial Control Panels
  • Telecommunications Equipment
  • Computer and Data Processing Systems

Why Bussmann?

Bussmann delivers proven reliability in circuit protection, with RoHS compliant and CE marked fuses built to meet international standards. The precision-engineered glass tube construction with nickel-plated brass endcaps and ferrule end connections ensures consistent performance and long service life across the GMA series' 1A-3A range for demanding electronic applications.

Manufacturer Resources

Product Specs

Product Type:
Fuse
Packaging Type:
Standard
Product Material:
Glass
Fuse Indicator:
Non Indicating
Response Time:
60 min maximum at 135%, 2 min maximum at 200%
Connection:
Ferrule end X ferrule end
Department:
Electrical
Application:
Electronic circuits
Product Finish:
Nickel-Plated Brass
Voltage Rating:
250VAC / 32VDC
Connection Type:
Ferrule
Standards:
RoHS Compliant
Product Group:
Fuses
Product Subgroup:
Other Fuses

Bussmann GMA-1-R – Frequently Asked Questions

1) Is the GMA fast-acting or time-delay, and will it nuisance-trip on motor inrush?
Fast-acting. It clears in 60 minutes maximum at 135 percent of rating and 2 minutes maximum at 200 percent, which is sized for electronics and low-inrush loads. For transformer or motor inrush you want a time-delay fuse instead, not the GMA.
2) What amp ratings does the Bussmann GMA glass fuse come in?
Two ratings are offered: 1 amp (GMA-1-R) and 3 amp (GMA-3-R). Pick the rating against the circuit's steady load, not the supply, since this is a fast-acting fuse with no inrush tolerance built in.
3) What is the interrupting rating on the Bussmann GMA fuse?
35A at 250VAC, and 10 kAIC at 125VAC. That 10 kAIC figure is the one to quote when a panel spec calls for a minimum interrupting capacity on the branch protection.
4) Can you tell if a GMA fuse is blown without pulling it?
Not by an indicator. The GMA is non-indicating, so there is no pop-up pin or LED flag. The upside of the glass tube is that you can usually see the open element through the body, but for panels where you need visual status at a glance, specify an indicating fuse or an indicating holder.
5) Do Bussmann GMA fuses meet RoHS for equipment shipping into Europe?
The GMA series is RoHS compliant and CE marked, which covers the two things an OEM procurement team usually has to document for export builds. The 32VDC rating is self certified.
6) Will GMA fuses corrode in a humid panel or outdoor enclosure?
The endcaps are nickel-plated brass on a glass tube body, which holds up better against contact corrosion than bare brass in damp enclosures. The ferrule ends seat in standard clip-style holders, so plating condition matters for keeping contact resistance low over time.
