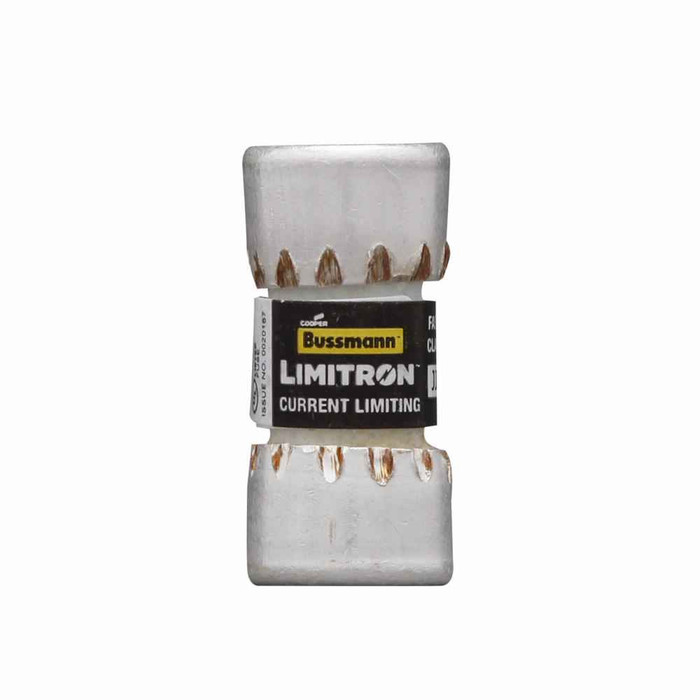

Bussmann JJN Series Class T Current-Limiting Fast-Acting Fuse, 300VAC

Bussmann JJN Series Class T Current-Limiting Fast-Acting Fuse, 300VAC

(No reviews yet) Write a Review

Model: JJN-10

In Stock (leaves warehouse same day if ordered before 3pm ET)

$119.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann JJN Series Class T Current-Limiting Fast-Acting Fuse, 300VAC

The Bussmann JJN Series Class T fuse delivers current-limiting, very fast acting overcurrent protection for VFD line protection, motor circuits, and industrial power distribution. Rated 300VAC/160VDC with a bolted blade end x bolted blade end connection, this non-indicating Class T fuse is available in 16 amp ratings from 6A to 600A to match a wide range of circuit protection requirements. CE marked for international compliance, the JJN Series combines a compact Class T footprint with high interrupting capacity for space-constrained industrial and commercial installations.

Key Features

  • Amp Rating Range: Available in 16 ratings from 6A to 600A, allowing selection of the exact overcurrent protection level for the circuit.
  • Application: Purpose-built for VFD line protection where fast fault clearing and coordinated current limiting are critical.
  • Current Limiting Technology: Reduces let-through fault current to protect downstream equipment and improve system coordination.
  • Very Fast Acting Response: Clears faults rapidly to minimize equipment damage and reduce arc flash hazards.
  • Class T Design: Compact construction with high interrupting capacity for space-constrained panels and enclosures.
  • Voltage Rating: 300VAC/160VDC for use across AC and DC circuit protection applications.
  • High Interrupt Rating: 200 kAIC at 300V and 20 kAIC at 160VDC for comprehensive fault protection.
  • Bolted Blade End Connection: Bolted blade end x bolted blade end termination for a secure, low-resistance connection.
  • Non-Indicating Design: Professional, low-profile construction for standard fuse holder installations.

Certifications & Compliance

  • CE Marked

Technical Specifications

  • Product Type: Fast Acting Fuses

Typical Applications

  • VFD Line Protection
  • Motor Protection Circuits
  • Industrial Power Distribution
  • Transformer Protection
  • Control Panel Applications
  • Electrical Switchgear

Why Bussmann?

Bussmann current-limiting, very fast acting fuse technology gives electrical contractors and facility managers the reliable overcurrent protection VFD and motor circuits demand. With CE marked compliance, a compact Class T footprint, and a bolted blade end connection built for secure high-amperage contact, the JJN Series is engineered for dependable, code-compliant performance across the full 6A-600A rating range.

Manufacturer Resources

Product Specs

Class:
Class T
Fuse Indicator:
Non-indicating
Compliances:
CE Marked
Packaging Type:
Standard
Department:
Electrical
Product Type:
Fast-Acting Fuse
Series:
JJN
Voltage Rating:
300VAC/160VDC
Amperage Rating:
6A - 600A
Connection Type:
Bolted Blade End
Configuration:
Class T
Listing:
CE Marked
Product Group:
Wiring Devices

Bussmann JJN-10 – Frequently Asked Questions

1) Can I use a Bussmann JJN Class T fuse on a 480V system?
No. The JJN Series is rated 300VAC/160VDC, so it cannot be applied on a 480V circuit. Use it on 240V and 208V three-phase distribution, control panels, and DC buses up to 160V. For 480V or 600V applications you need the 600V Class T family, not the JJN.
2) Is a Class T fuse the right choice for protecting a VFD line side?
It is one of the standard choices. The JJN is current limiting and very fast acting, which is what a drive's input rectifier and DC bus capacitors need, since they fail faster than a time delay fuse will clear. A dual element time delay fuse is the better pick on an across-the-line motor starter where inrush would nuisance blow a fast acting fuse. Check the drive manufacturer's recommended fuse table, because many VFDs specifically call out Class T or Class J.
3) How does a JJN fuse mount, and will it drop into a standard fuse block?
The JJN uses a bolted blade end on both ends, so it bolts through the blade into a Class T fuse block rather than clipping in. It will not fit ferrule or knife blade clips. You need a Class T block or holder sized for the same voltage class and amp range as the fuse you are ordering, since Class T mounting centers change with the amp bracket.
4) What is the difference between a JJN and a JJS fuse?
Both are Bussmann Class T, very fast acting and current limiting. The difference is voltage class: JJN is the 300VAC unit, and JJS is the 600V version. If your equipment nameplate calls for a 600V Class T fuse, a JJN is not a substitute even at the same amp rating.
5) What amp ratings does the Bussmann JJN fuse come in?
JJN fuses run from 1A up through 1200A. The low end covers control and transformer primaries (1, 2, 3, 6, 10, 15, 20, 25, 30A), the mid range covers motor and feeder work (35 through 200A), and the large bolted sizes go 250, 350, 400, 450, 600, 700, 800, 1000 and 1200A. Order by amp rating, for example JJN-100 style part numbers such as JJN-200 or JJN-600.
6) Why pick Class T over Class J for a tight control panel?
Footprint. Class T bodies are substantially shorter and narrower than Class J at the same amp rating, which is the usual reason a panel builder specifies them when the enclosure is already full. Both are current limiting with high interrupting capacity. If you have the room and the equipment label calls out Class J, use Class J, because the rejection features are not interchangeable and a Class T fuse will not mount in a Class J block.
7) Can I use the JJN fuse on a DC circuit like a battery bank or drive bus?
Yes, up to 160VDC, with a 20 kA interrupting rating at that voltage. Above 160VDC this fuse is not applicable and you need a fuse specifically rated for the higher DC voltage. DC arcs do not self extinguish at a zero crossing, so never apply an AC-only rating to a DC bus.
8) Will a JJN fuse tell me when it has blown?
No. The JJN is non-indicating, so there is no pop-up pin or window. On a panel where you need to spot an open fuse without pulling it, plan on a blown fuse indicator light across the fuse holder or a separate indicating fuse type.
9) Are Bussmann JJN fuses acceptable for equipment shipping to Europe?
The JJN Series is CE marked, which covers the European conformity requirement on panels built for export. That is the compliance mark carried on this series.
