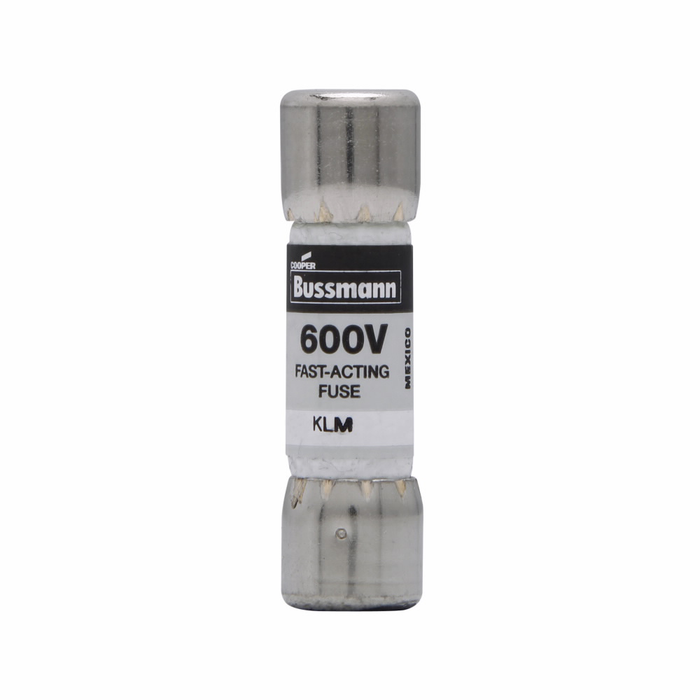

Bussmann KLM-1 KLM Series Fast-Acting Fuse

Bussmann KLM-1 KLM Series Fast-Acting Fuse

(No reviews yet) Write a Review

Model: KLM-1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$79.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann KLM-1 KLM Series Fast-Acting Fuse, 1A, 600V

The Bussmann KLM-1 is an Eaton Bussmann series KLM fast-acting fuse rated 1A at 600 Vac and 600 Vdc, engineered to deliver dependable overcurrent protection in demanding electrical systems. Housed in a melamine tube with nickel-plated bronze ferrule ends, this fuse features a non-indicating, ferrule end x ferrule end design for straightforward installation and reliable connection to compatible fuse holders. With an interrupt rating of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc, the KLM-1 provides high short-circuit interrupting capacity suitable for both AC and DC power distribution applications.

Key Features

  • Amperage Rating: 1A fast-acting fuse element sized for precise overcurrent protection.
  • Voltage Rating: Rated 600 Vac and 600 Vdc, suitable for both alternating current and direct current circuits.
  • Interrupt Rating: 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc for high fault-current interrupting capability.
  • Fast-Acting Response: Fast acting time-current characteristic for circuits without inherent inrush current.
  • Non-Indicating Design: Non indicating construction provides standard fuse operation without a visual blown-fuse indicator.
  • Ferrule End Termination: Ferrule end x ferrule end configuration for secure mounting in compatible fuse blocks and holders.
  • Durable Construction: Melamine tube body paired with nickel-plated bronze end ferrules for dependable conductivity and long service life.

Technical Specifications

  • Series: Eaton Bussmann KLM
  • Voltage Rating: 600 Vac, 600 Vdc
  • Amperage Rating: 1A
  • Interrupt Rating: 100 kAIC at 600 Vac, 50 kAIC at 600 Vdc
  • Speed: Fast Acting
  • Indication: Non Indicating
  • Termination: Ferrule End x Ferrule End
  • Tube Material: Melamine
  • Ferrule Material: Nickel-Plated Bronze

Typical Applications

  • Industrial Control Panels and Circuit Protection
  • Motor Control Centers and OEM Equipment
  • AC and DC Power Distribution Systems
  • Panelboard and Switchgear Overcurrent Protection
  • Machine Wiring and Electrical Control Circuits

Why Bussmann?

Bussmann fuses from Eaton are built with quality materials, including nickel-plated bronze ferrules and durable melamine tube construction, to deliver consistent overcurrent protection for demanding electrical systems. The KLM series' high interrupt ratings of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc make it a dependable choice for professionals who require reliable fast-acting fuse protection across both AC and DC applications.

Manufacturer Resources

Product Specs

Product Type:
Fast-Acting Fuse
Voltage Rating:
600V
Amperage Rating:
1A
Series:
KLM
Connection Type:
Ferrule End
Department:
Electrical
Product Subgroup:
Fuses
list_batch:
BUSS-20260919
Product Material:
Nickel-Plated Bronze
Product Weight:
.18 pounds
Product Details:
Fast Acting
End Type:
Ferrule
Product Group:
Circuit Protection
Compliances:
RoHS Compliant

Bussmann KLM-1 – Frequently Asked Questions

1) Can a Bussmann KLM fuse be used on a DC circuit as well as AC?
Yes. The KLM series is rated 600 Vac and 600 Vdc, so it works in both AC and DC power distribution. The interrupting capacity differs by circuit type: 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc. On a DC application, size your available fault current against the 50 kAIC figure, not the AC number.
2) Is the KLM fuse fast-acting or time-delay, and does that matter for motor loads?
The KLM is a fast-acting fuse with no time delay. That makes it right for circuits without inherent inrush, control circuits, panelboard and switchgear branch protection, and machine wiring. If you are protecting a motor or a transformer that draws a heavy starting surge, a fast-acting element will open on inrush, and you want a time-delay fuse instead.
3) Will a Bussmann KLM fuse fit my existing fuse block?
The KLM is built as ferrule end x ferrule end, so it drops into fuse blocks and holders made for cylindrical ferrule-style fuses, clipped or screw-clamped at both ends. It is not a blade or bolt-on fuse, so it will not seat in a block prepped for knife-blade ends.
4) Does the KLM fuse have a blown-fuse indicator?
No. The KLM is a non-indicating fuse, so there is no pop-out pin or visual flag when the element opens. Troubleshooting means pulling the fuse and testing continuity, or using a fuse holder or panel with its own indication. If your maintenance crew needs to spot a blown fuse at a glance, specify an indicating-style fuse instead.
5) What amp ratings does the Bussmann KLM fast-acting fuse come in?
Two ratings are offered: KLM-1 at 1 amp and KLM-3 at 3 amps. Both carry the same 600 Vac / 600 Vdc rating and the same fast-acting, non-indicating ferrule construction, so the only ordering decision between them is the amperage your circuit needs.
6) Can I use a 600V KLM fuse on a 120V or 240V control circuit?
Yes. A fuse voltage rating is a maximum, so the 600V KLM can be applied at any system voltage at or below 600 volts, including 120V and 240V control circuits. What you cannot do is go the other way and apply a lower-rated fuse on a 600V system.
7) What is the KLM fuse body made of, and will it hold up in a hot control panel?
The tube is melamine with nickel-plated bronze end ferrules. Melamine is a thermoset insulating body used for high-interrupting-capacity fuses, and the nickel plating on the bronze ferrules resists corrosion and keeps contact resistance low in the clips. That construction is what the series is specified around for industrial control panels and motor control centers.
