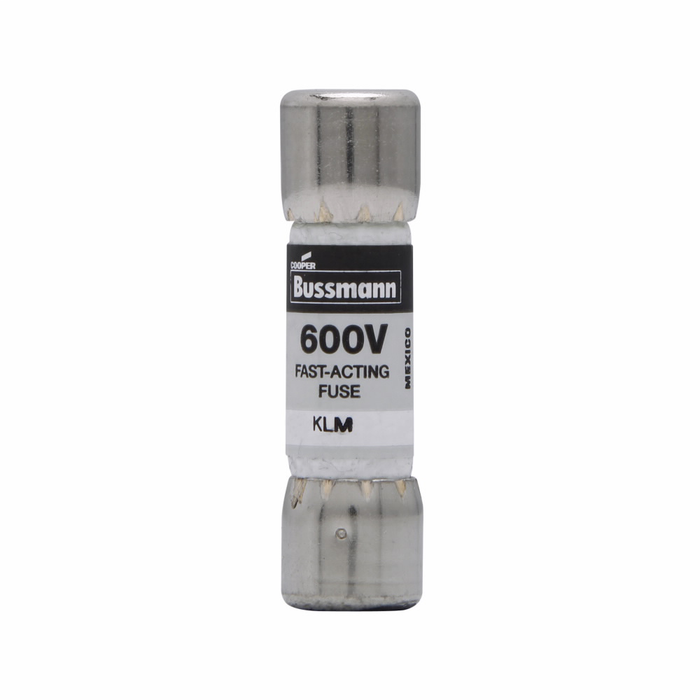

Bussmann KLM-2 KLM Series Fast-Acting Ferrule Fuse, 2A, 600V

Bussmann KLM-2 KLM Series Fast-Acting Ferrule Fuse, 2A, 600V

The Bussmann KLM-2 is a KLM Series fast-acting fuse from the Eaton Bussmann series, rated 2A at 600 Vac and 600 Vdc with an interrupting rating of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc. This non-indicating fuse features ferrule end x ferrule end terminals, a melamine tube body, and nickel-plated bronze construction, delivering dependable fast-acting overcurrent protection for demanding AC and DC electrical circuits. Designed as a direct-fit replacement fuse, the KLM-2 is well suited for industrial, commercial, and OEM applications requiring compact, high-interrupting-capacity current-limiting protection. The KLM-2 current-limiting characteristics make it well suited for protecting sensitive control circuits, instrumentation, and low-amperage branch circuits where compact fuse dimensions and dependable performance are required.

Key Features

• Voltage Rating: Rated 600 Vac and 600 Vdc for use in both AC and DC circuit protection applications.
• Amperage Rating: 2A rating provides precise overcurrent protection sized for low-current circuits.
• Interrupting Rating: 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc for high fault-current withstand capability in demanding power systems.
• Fast-Acting Response: Fast acting element design provides rapid response to overcurrent conditions, helping protect connected equipment and wiring.
• Ferrule End Terminals: Ferrule end x ferrule end configuration with nickel-plated bronze ferrules for reliable, low-resistance connections in standard fuse holders.
• Melamine Tube Body: Durable melamine tube construction provides insulation and mechanical protection for the fuse element.
• Non-Indicating Design: Non indicating body style for standard fuse holder and panel compatibility.
• Eaton Bussmann Series: Part of the Eaton Bussmann series, engineered for consistent, code-compliant overcurrent protection performance.

Technical Specifications

• Refer to manufacturer documentation for complete technical specifications.

Typical Applications

• Industrial and Commercial Power Distribution Equipment
• Motor Control Circuit and Branch Circuit Protection
• Panelboard and Switchboard Fuse Protection
• OEM Equipment and Control Panel Overcurrent Protection
• AC and DC Electrical Circuit Protection Applications
• Control Circuit and Instrumentation Protection

Why Bussmann?

Bussmann fuses from Eaton are engineered for dependable overcurrent protection in demanding electrical environments. The KLM-2 combines a durable melamine tube body, nickel-plated bronze ferrule end terminals, and a fast-acting element rated to 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc, delivering the reliable performance professionals expect from the Eaton Bussmann series for critical circuit protection. Choosing genuine Eaton Bussmann series fuses like the KLM-2 helps ensure proper fit, performance, and protection coordination across your electrical system.
