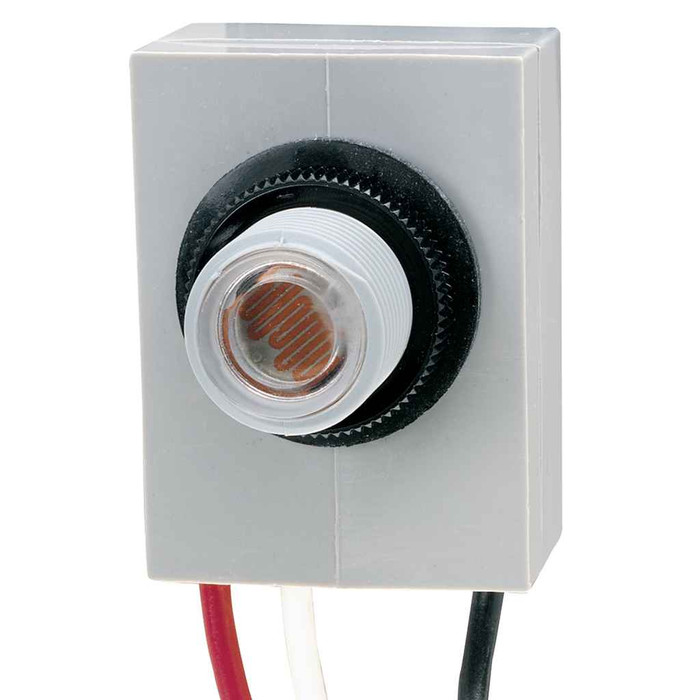

Intermatic K4023C Button Thermal Photocontrol, 208-277 V

Intermatic Button Thermal Photocontrol 208-277V with Delay Feature and Mechanical Bimetal Switch

(No reviews yet) Write a Review

Model: K4023C
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80.96
$23.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic Button Thermal Photocontrol 208-277V with Delay Feature and Mechanical Bimetal Switch

Professional outdoor lighting control with thermal protection and delay switching

The Intermatic Button Thermal Photocontrol delivers reliable dusk-to-dawn lighting control for outdoor applications with 208-277V compatibility. This professional-grade photocontrol features a mechanical bimetal switch with Cadmium Sulfide photocell and thermal protection, ensuring consistent performance in varying weather conditions. The compact design fits standard outlet boxes, post lamps, wall packs and other lighting fixtures, while the delay feature prevents unwanted OFF switching for enhanced reliability.

Professional Features & Benefits

  • 208-277V AC Operation: Compatible with commercial and industrial voltage systems for versatile installation applications
  • Delay Feature: Prevents unwanted OFF switching caused by temporary light sources or brief illumination changes
  • Mechanical Bimetal Switch: Provides thermal protection and reliable switching operation in outdoor environments
  • Cadmium Sulfide Photocell: Delivers accurate light sensing for consistent dusk-to-dawn operation
  • Compact Design: Fits into standard outlet boxes, post lamps, wall packs and other lighting fixtures
  • 3/8"-18 NPSM Threading: Standard mounting with 3/4" long stem, locking nut and washer gasket for secure installation
  • 2-Year Limited Warranty: Professional warranty coverage ensures long-term reliability and performance

Technical Specifications

  • Applications: Outdoor Lighting Control
  • Country Of Origin: Mexico
  • Depth: 0.811 in
  • Input Voltage Rating Range S : 208-277 VAC, 50/60 Hz
  • Marketing Description: These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-
  • Product Color: Gray
  • Product Height: 1.813 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: 0.938 in
  • Warranty Period: 2-Year limited

Professional Applications

  • Commercial Building Exterior Lighting
  • Industrial Facility Perimeter Lighting
  • Parking Lot and Area Lighting
  • Post Lamp and Decorative Lighting
  • Wall Pack and Security Lighting
  • Retail and Office Building Lighting
  • Multi-Unit Residential Properties

Why Choose Intermatic Quality?

Intermatic photocontrols deliver proven reliability with professional-grade construction and thermal protection. The 2-year limited warranty and gray finish provide long-term durability for outdoor lighting applications, while the compact design ensures compatibility with standard fixtures and mounting configurations.

Manufacturer Resources

Product Specs

Application:
Outdoor Lighting Control
Country Of Origin:
Mexico
Input Voltage Rating Range S :
208-277 VAC, 50/60 Hz
Marketing Description:
These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-
Product Color:
Grey
Product Height:
1.813 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
0.938 in
Warranty Period:
2-Year limited
Product Depth:
0.811 in

Intermatic K4023C – Frequently Asked Questions

1) Will an Intermatic K4023C photocontrol work on a 277V lighting circuit?
Yes. The K4023C button photocontrol is rated 208-277 VAC, 50/60 Hz, so it covers 208V, 240V and 277V circuits, which is the range you see on commercial wall packs, parking lot poles and area lighting fed from a 480/277 or 208 three phase system. It is not a 120V control, so don't put it on a 120V post lamp circuit.
2) What size hole does the Intermatic K4023C button photocontrol need in the fixture or box?
It mounts through a threaded stem, 3/8"-18 NPSM, 3/4 inch long, and comes with the locking nut and a washer gasket. Drill or use the existing 3/8 inch conduit-size knockout in the fixture housing, wall pack back plate or outlet box, push the stem through from outside, gasket on the outside face, nut inside. Overall body is 1.813 x 0.938 x 0.811 inches, so it needs very little clearance behind the wall.
3) Why do my dusk-to-dawn lights flicker off when a car's headlights hit them, and does the K4023C fix that?
That is a photocontrol with no delay reacting to a passing light source. The K4023C has a delay feature specifically to prevent unwanted OFF switching from temporary light, so headlights sweeping a parking lot or a neighboring fixture cycling on will not drop your lights. It is the behavior you want on parking lot, perimeter and security lighting where traffic passes the sensor.
4) Is the Intermatic K4023C a button photocontrol or a twist-lock (shorting cap) type?
Button style, not twist-lock. It threads into the fixture or box on a 3/8"-18 NPSM stem and wires directly, so it is what you use on wall packs, post lamps and in-wall boxes that have no receptacle. If the pole or luminaire already has a three-prong photocontrol receptacle on top, you want a locking-type photocontrol instead, not this one.
5) Can the Intermatic K4023C photocontrol be mounted in a standard outdoor outlet box?
Yes, it fits standard outlet boxes as well as post lamps and wall packs. The whole unit is under an inch deep at 0.811 inches and 0.938 inches across, so it clears the wiring in a typical box. The washer gasket seats against the outside of the box or housing to keep water out of the penetration.
6) How does a thermal bimetal photocontrol switch, and does that matter for the lamps I'm running?
The K4023C uses a Cadmium Sulfide photocell driving a mechanical bimetal switch, which is the traditional thermal design: the cell heats a bimetal element that snaps the contacts. It gives you a gradual, thermally protected transition rather than an instant electronic switch, and it is a proven approach for outdoor HID and similar fixtures. Electronic photocontrols switch faster and cleaner, so for large LED driver loads with high inrush check the fixture manufacturer's control requirement.
7) What is the Intermatic part number for the 208-277V button photocontrol with delay, and what color is it?
The model and manufacturer part number are both K4023C, and the housing is grey. That is the identifier to quote for the 208-277 VAC button thermal photocontrol with the delay feature.
8) Can I standardize on one photocontrol across a property with mixed 208V and 277V lighting?
For the higher-voltage side, yes. One K4023C covers 208V through 277V at 50/60 Hz, so parking lot poles on 277V and building-mounted fixtures on 208V take the same part number, which keeps one line item on the truck stock. Any 120V fixtures on the same property need a different photocontrol, since this one does not go down to 120V.
9) Does the Intermatic K4023C photocontrol come with the mounting hardware, or do I need to order it separately?
The mounting hardware is included: the 3/4 inch long 3/8"-18 NPSM stem, a locking nut, and a washer gasket for the fixture penetration. Nothing else is needed to mount it. You supply the wire connectors and any conduit fitting your install calls for.
