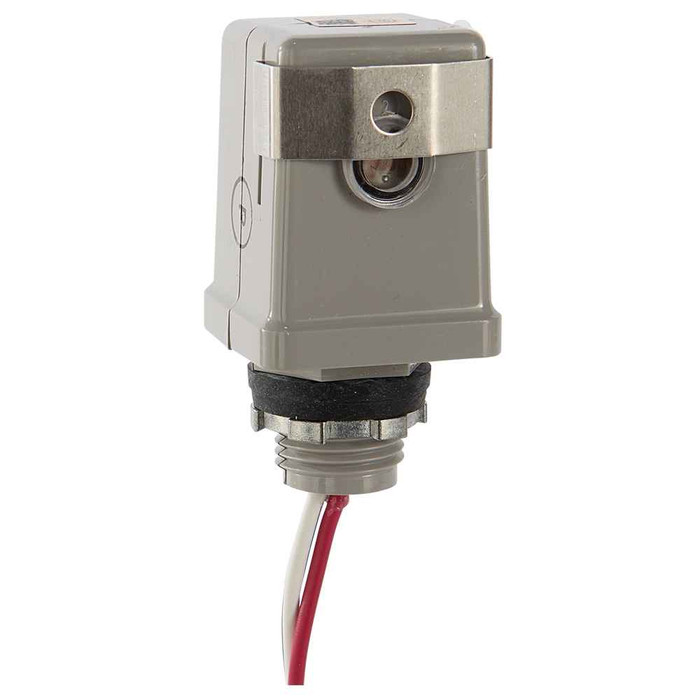

Intermatic Stem Mount Thermal Photocontrol 208-277V with Delay Feature and Cadmium Sulfide Photocell
Professional Outdoor Lighting Control with Thermal Protection
The Intermatic stem mount thermal photocontrol delivers reliable automatic lighting control for outdoor applications with 208-277V compatibility. Featuring a mechanical bimetal switch with cadmium sulfide photocell technology, this gray plastic housing unit provides dependable dusk-to-dawn operation with built-in thermal protection and delay functionality to prevent unwanted switching cycles.
Professional Features & Benefits
- 208-277V AC Operation: Compatible with commercial and industrial voltage systems for versatile outdoor lighting applications
- Thermal Bimetal Switch: Provides reliable switching action with built-in thermal protection for extended service life
- Cadmium Sulfide Photocell: Delivers accurate light-sensing performance for consistent dusk-to-dawn operation
- Delay Feature: Prevents unwanted OFF switching from temporary light sources or brief shadows
- 1/2"-14 NPSM Threaded Stem: Standard mounting configuration fits most outdoor light fixtures and electrical boxes
- Complete Installation Kit: Includes washer gasket and locking nut with 18 AWG 9-inch wire leads for straightforward installation
- 2-Year Limited Warranty: Backed by manufacturer warranty for reliable long-term performance
Technical Specifications
- Applications: Outdoor Lighting Control
- Country Of Origin: Mexico
- Depth: 1.563 in
- Input Voltage Rating Range S : 208-277 VAC, 50/60 Hz
- Marketing Description: These photocontrols install on standard outdoor light fixtures and electrical boxes with 1�2"-14 NP
- Product Color: Gray
- Product Height: 3 in
- Product Length: NA NA
- Product Weight: NA lbs
- Product Width: 1.563 in
- Warranty Period: 2-Year limited
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Commercial Building Exterior Lighting
- Industrial Facility Perimeter Lighting
- Parking Lot and Garage Lighting Control
- Security and Area Lighting Systems
- Retail and Office Building Outdoor Lighting
- Multi-Unit Residential Properties
- Municipal and Public Lighting Applications
Why Choose Intermatic Quality?
Intermatic photocontrols provide dependable outdoor lighting control with proven mechanical bimetal switch technology and durable gray plastic housing construction. The 2-year limited warranty and standard 1/2"-14 NPSM threading ensure reliable performance and compatibility with existing lighting infrastructure for professional installations.
Manufacturer Resources
Product Specs
- Applications:
- Outdoor Lighting Control
- Country Of Origin:
- Mexico
- Depth:
- 1.563 in
- Input Voltage Rating Range S :
- 208-277 VAC, 50/60 Hz
- Marketing Description:
- These photocontrols install on standard outdoor light fixtures and electrical boxes with 1⁄2"-14 NP
- Product Color:
- Gray
- Product Height:
- 3 in
- Product Length:
- NA NA
- Product Weight:
- NA lbs
- Product Width:
- 1.563 in
- Warranty Period:
- 2-Year limited
