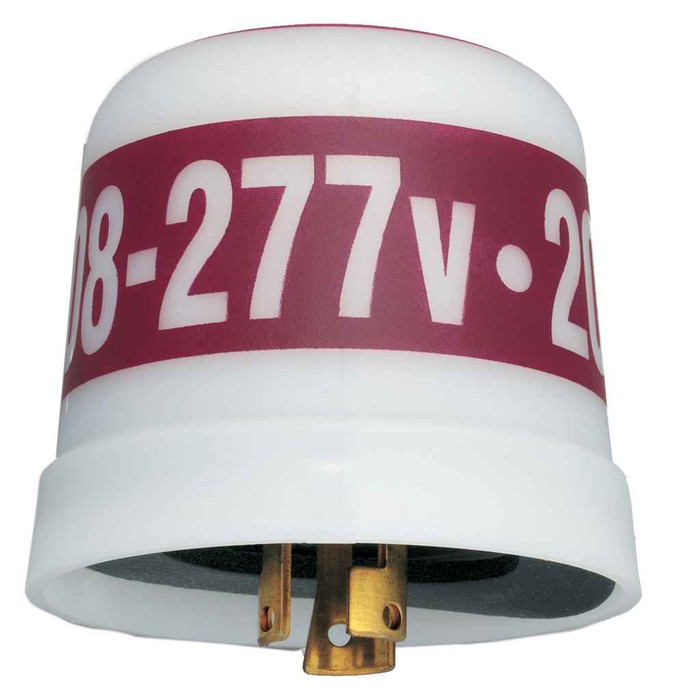

Intermatic LC4523 Locking Type Thermal Photocontrol, 208-277 V

Intermatic Locking Type Thermal Photocontrol 208-277V with Cadmium Sulfide Photocell

(No reviews yet) Write a Review

Model: LC4523
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$84.66
$30.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic Locking Type Thermal Photocontrol 208-277V with Cadmium Sulfide Photocell

Professional Outdoor Lighting Control with Thermal Protection

The Intermatic Locking Type Thermal Photocontrol delivers reliable automatic lighting control for outdoor applications with 208-277V operation. Featuring a mechanical bimetal switch with Cadmium Sulfide photocell technology, this photocontrol provides dependable dusk-to-dawn operation with thermal protection. The locking type plug design ensures quick installation and changeover on ANSI C136.10 NEMA receptacles, while the integral high impact thermoplastic housing delivers durability in outdoor environments.

Professional Features & Benefits

  • 208-277V Operation: Compatible with commercial and industrial lighting systems for versatile installation applications
  • Mechanical Bimetal Switch: Provides thermal protection and reliable switching performance in varying temperature conditions
  • Locking Type Plug: Enables quick installation and easy changeover on standard ANSI C136.10 NEMA receptacles
  • Delay Feature: Prevents unwanted OFF switching for stable operation and reduced cycling
  • 3,650 Cycle Testing: Proven durability through extensive ON/OFF cycle testing for long-term reliability
  • ANSI C136.10 Compliance: Meets industry standards for photocontrol compatibility and performance
  • High Impact Housing: Integral thermoplastic construction provides weather resistance and mechanical protection

Technical Specifications

  • Applications: Outdoor Lighting Control
  • Country Of Origin: Mexico
  • Depth: NA in
  • Input Voltage Rating Range S : 208-277 VAC, 50/60 Hz
  • Marketing Description: These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on
  • Product Color: White with Maroon Band
  • Product Height: 2.75 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: NA in
  • Warranty Period: 2-Year limited

Professional Applications

  • Commercial Building Exterior Lighting
  • Industrial Facility Perimeter Lighting
  • Parking Lot and Garage Lighting
  • Street and Roadway Lighting
  • Security and Area Lighting
  • Municipal and Public Lighting
  • Retail and Office Complex Lighting

Why Choose Intermatic Quality?

Intermatic photocontrols deliver proven reliability with ANSI C136.10 compliance and extensive cycle testing. The 2-year limited warranty and high impact thermoplastic housing construction ensure dependable performance in demanding outdoor lighting applications.

Manufacturer Resources

Product Specs

Application:
Outdoor Lighting Control
Country Of Origin:
Mexico
Input Voltage Rating Range S :
208-277 VAC, 50/60 Hz
Marketing Description:
These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on
Product Color:
White with Maroon Band
Product Height:
2.75 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
NA in
Warranty Period:
2-Year limited
Product Depth:
NA in

Intermatic LC4523 – Frequently Asked Questions

1) Does the LC4523 fit the twist-lock receptacle already on my pole-mounted fixture?
If the fixture has an ANSI C136.10 NEMA photocontrol receptacle, yes. The LC4523 uses a locking type plug base that twists into that standard receptacle, which is the socket found on most street, roadway and area light heads. No wiring is needed at the fixture, so swapping a failed control is a plug and turn job.
2) Does the LC4523 meet ANSI C136.10 for photocontrol interchangeability?
Yes, it is built to ANSI C136.10, the standard that governs locking-type photocontrol and receptacle compatibility. That is what lets it drop into any fixture already fitted with a C136.10 receptacle regardless of the luminaire brand.
3) Is the LC4523 a thermal (bimetal) photocontrol or an electronic one, and does that matter?
It is a mechanical bimetal thermal type using a cadmium sulfide photocell. The bimetal switch gives thermal protection and keeps switching dependable across temperature swings, and the built-in delay stops nuisance OFF switching from passing headlights or lightning. Electronic solid-state controls switch faster and silently; a thermal control like this one is the long-standing choice for street and area lighting where ride-through on brief light flashes is what you want.
4) Can I mount the Intermatic LC4523 photocontrol outdoors with no extra enclosure?
Yes. The housing is integral high impact thermoplastic built for weather and mechanical protection outdoors, which is where this control is meant to be used for dusk-to-dawn lighting control. It mounts on the fixture itself through the receptacle, so no separate box is required.
5) How much vertical clearance do I need above the fixture receptacle for this photocontrol?
Allow at least 2.75 inches of clearance. That is the stated height of the LC4523 body above the twist-lock base, which matters when the head sits under a shroud, a decorative cap or a tight canopy.
6) My other poles have Intermatic photocontrols with a maroon band. Is the LC4523 the same one?
The LC4523 is white with a maroon band, which on Intermatic locking photocontrols identifies the 208-277V group. If the existing controls on your other poles carry that same maroon band and the heads are on 208-277V circuits, this is the matching unit for standardizing a site.
7) How many switching cycles has the LC4523 photocontrol been tested to?
3,650 ON/OFF cycles. At one cycle per night that is roughly ten years of dusk-to-dawn duty, which is the figure to quote when a spec calls for cycle-tested photocontrols on a municipal or campus lighting package.
8) What model should I order and where is this Intermatic photocontrol made?
Order Intermatic model LC4523. It is manufactured in Mexico.
