B-Line CABLE SUPPORT FITTING, ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,610.55

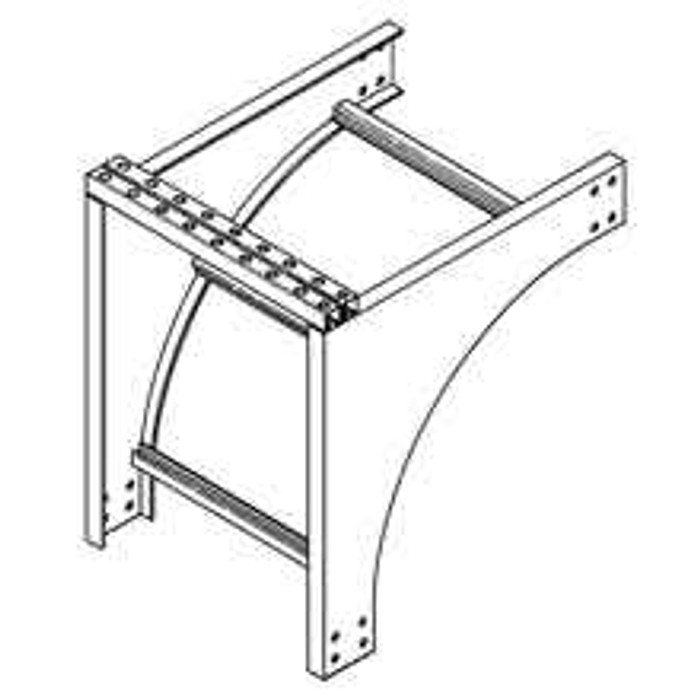

B-Line CABLE SUPPORT FITTING, SERIES 2,3,4&5, 5" / 6" HEIGHT, 24" WIDTH, 48" RADIUS, ALUMINUM

B-Line CABLE SUPPORT FITTING, SERIES 2,3,4&5, 5" / 6" HEIGHT, 24" WIDTH, 48" RADIUS, ALUMINUM

(No reviews yet) Write a Review

Model: 6A-24-CSF48
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,610.55
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
CABLE SUPPORT FITTING, SERIES 2,3,4&5, 5" NEMA / 6" HEIGHT, 24" WIDTH, 48" RADIUS, ALUMINUM

  • Related Products

    • Flextray Wire Basket Tray and Accessories
    • Redi-Rail™ Cable Tray System
    • Non-Metallic Cable Tray Systems (GRP)
    • DataComm Equipment Supports
    • Bolted Framing (Strut Systems)
    • Channel Cable Tray - Non-Metallic (GRP)
    • Channel Cable Tray - Metallic
    • Spring Steel Fasteners (North America)


6A-24-CSF48 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Department:
Electrical

B-LINE 6A-24-CSF48 – Frequently Asked Questions

1) What size cable tray does the B-Line 6A-24-CSF48 cable support fitting match up to?
The B-Line 6A-24-CSF48 is built for 24 inch wide tray with a 6 inch loading depth, and it turns on a 48 inch radius. It is an aluminum fitting for the Series 2, 3, 4 and 5 tray lines, so the tray sections it joins to need to be the same 24 inch width and the same series family for the side rails to line up.
2) Does the B-Line 6A-24-CSF48 work with Flextray wire basket or Redi-Rail systems?
It is a fitting for the B-Line Series 2, 3, 4 and 5 ladder-type tray. Flextray wire basket, Redi-Rail, the non-metallic GRP trays and channel cable tray are separate B-Line systems with their own fittings and their own splice hardware, so a Series 2-5 support fitting is not the part for those runs.
3) What does the 5 inch NEMA rating mean on the B-Line 6A-24-CSF48 fitting?
The 6A-24-CSF48 is a 5 inch NEMA load depth fitting with a 6 inch overall rail height. NEMA depth is the usable cable fill depth inside the rails, while the 6 inch figure is the outside dimension of the rail. If your drawing calls out a 6 inch tray by outside height, this matches; if it calls out 6 inch NEMA depth, it does not.
4) Is the B-Line 6A-24-CSF48 aluminum or steel?
Aluminum. That keeps the weight down for overhead runs and suits it to damp or corrosive areas where a plain steel fitting would need coating. If the rest of your run is steel tray, mixing materials at a fitting is something to review for galvanic contact and for matching rail profiles.
5) What part number do I order for a 24 inch wide, 6 inch aluminum cable support fitting with a 48 inch radius?
Order B-Line 6A-24-CSF48. The number reads out as the spec: 6 for the 6 inch height, A for aluminum, 24 for the tray width in inches, CSF for cable support fitting, and 48 for the radius in inches.
