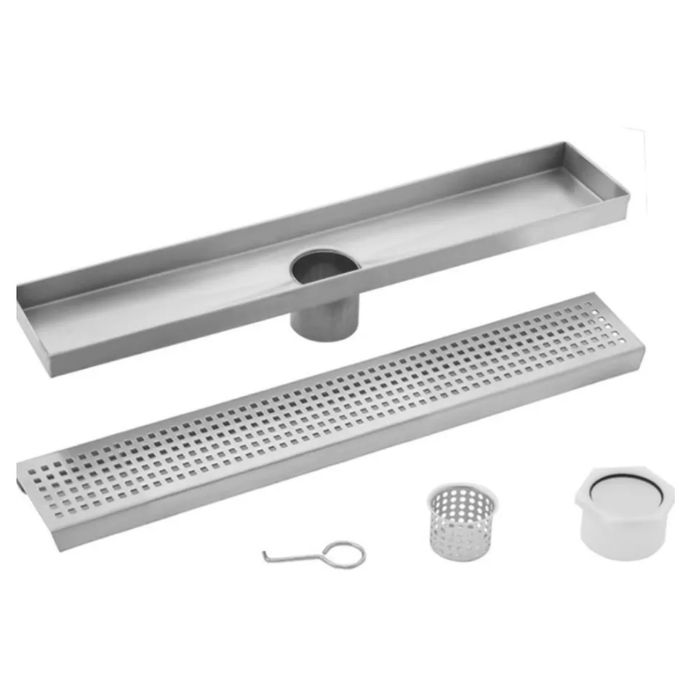

Cahaba CASP26 26 in. Stainless Steel Square Grate Linear Shower Drain

Cahaba CASP26 26 in. Stainless Steel Square Grate Linear Shower Drain

(No reviews yet) Write a Review

Model: CASP26
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$158.00
$118.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

26 in. Stainless Steel Square Grate Linear Shower Drain

The linear format of our 26 in. stainless steel square grate linear shower drain offers a decorative alternative to standard plumbing fixtures. A modern, square grate features a sleek brushed stainless steel finish and is easily removed for cleaning. The industrial-inspired design provides a seamless transition from drain to shower floor to create the ultimate at-home spa experience.

FEATURES

  • Suitable for installation with all decorative tile, natural stone, and solid surface flooring materials
  • Sloped inner channel funnels water toward a central drain for maximum water removal
  • Removable grate for easy cleaning & maintenance
  • Basket filter included
  • Fast drain rate up to 9 gallons per minute

SPECIFICATIONS

Product Type: Drain

Finish: Brushed Stainless Steel
ProductSubType: Linear Drain
InstallationType: Flush Mount
Gauge: 18
Material: Stainless Steel
Product Width: 3-3/8
Color Family: Silver
Country Of Origin: China
Drain Cover Type: Square Grate
Drain Placement: Center
Gallons per Minute: 9
MFG SKU: CASP26
Product Height: 7/8
Product Length/Depth: 26
Product Weight: 4.2
Warranty: 1 Year Limited Residential

Specification Sheet



Manufacturer Resources

Product Specs

Drain Cover Type:
Square Grate
Drain Placement:
Center
Gauge:
18
InstallationType:
Flush Mount
Product Height:
7/8"
Product Length/Depth:
26
Product Weight:
4.2 lbs.
Product Width:
3-3/8"
Warranty:
1 Year Limited Residential
Product Material:
Stainless Steel
Product Category:
Drain
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Drains and Cleanouts
Product Type:
Shower Drain

Cahaba CASP26 – Frequently Asked Questions

1) What is the actual channel size of the Cahaba CASP26 linear shower drain?
The CASP26 body measures 26 inches long by 3-3/8 inches wide, with a 7/8 inch height. The 7/8 inch height is the number that usually decides the job: your mortar bed and tile thickness have to accommodate a channel that shallow while still holding slope to the drain, and the low profile is what lets the grate sit flush with a finished tile floor.
2) Will a 26 inch linear shower drain handle the flow from a multi-head or rain shower?
The CASP26 is rated to drain up to 9 gallons per minute. A single standard showerhead runs well under that, so one head is no issue. If you are running a rain head plus body sprays that together exceed 9 gpm, you are past what this channel will carry and water will pond on the floor. Add up the rated flow of every outlet in the valve before you commit.
3) Can a linear drain like the Cahaba CASP26 be set in natural stone or large format tile?
Yes. The CASP26 is made to finish into decorative tile, natural stone, and solid surface flooring. Because it is a flush mount channel, the grate sits level with the finished surface rather than sitting proud of it, which is the reason installers pick a linear channel for large format tile: you slope the floor in one direction to the channel instead of building a four-way slope to a center point.
4) Is the grate on this Cahaba linear drain removable for cleaning out hair?
It lifts out. The square grate on the CASP26 pulls free by hand for cleaning, and a basket filter is included underneath to catch hair and debris before it reaches the trap. For a rental or a multi-family unit, that matters: maintenance can clear it without tools and without pulling the drain body.
5) What finish does the Cahaba CASP26 come in, and can I get it in black or brass?
Brushed stainless steel is the only finish offered on the CASP26. There is no matte black, bronze, or brass option in this model, so if the spec calls for a dark or warm toned grate you need a different drain. The silver tone pairs with most chrome, polished nickel, and brushed nickel trim already in a bath.
6) Should I use a linear drain or a standard center point drain in a curbless shower?
A linear channel like the 26 inch Cahaba CASP26 lets the floor pitch in a single plane toward one wall or the entry, which is what makes large format tile and curbless, roll-in showers work. A traditional round center drain needs the floor broken into four sloped quadrants, so it forces small tile or mosaic in the pan. Pick the linear channel when the finish material is big or rigid; a center drain is simpler and cheaper when you are using mosaic anyway.
7) How durable is the stainless steel on the CASP26 grate for a commercial or high traffic shower?
The drain is stainless steel in 18 gauge, in a brushed finish. Eighteen gauge is a substantial wall thickness for a shower channel, so the grate holds up to being walked on and to repeated removal for cleaning. The brushed surface also hides water spotting better than a polished finish, which is why it reads well in hotel and multi-family baths where nobody is polishing a drain daily.
8) How much does the Cahaba CASP26 shower drain weigh?
It weighs 4.2 lbs. Light enough that one person can set and level it in the mortar bed without help, which is the practical question on a bathroom remodel where you are working alone in a small footprint.
