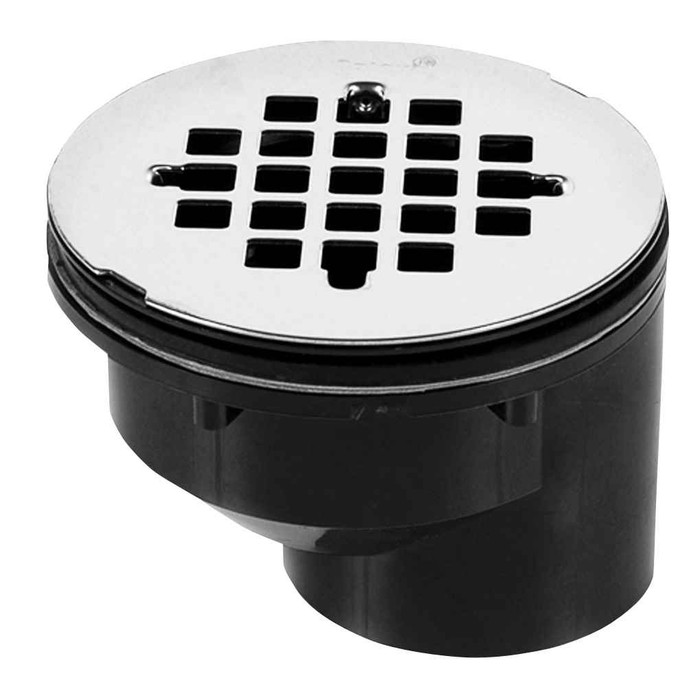

OATEY 42788 2 in. Offset ABS Shower Drain with Stainless Steel Strainer

OATEY 42788 2 in. Offset ABS Shower Drain with Stainless Steel Strainer

(No reviews yet) Write a Review

Model: 42788
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$75.71
$25.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
2 in. Offset ABS Shower Drain with Stainless Steel Strainer

  • Features

    • Provides a solution when joists can't be moved
    • Strainer snaps onto the drain body after installation
    • Includes universal 4-1/4 in. round snap-tite stainless steel strainer
    • Fiber and rubber washer provides drain body with airtight seal to the shower base
    • Drain for use with preformed shower stall bases
    • Drain body provides 1-1/2 in. offset to work around joists and imperfect slab penetrations
    • Easy to install
    • Solvent weld over 2 in. ABS DWV pipe
    • Drain top also accommodates Oatey 4-1/4 in. Universal Snap-Tite Strainers, available in a variety of designer finishes (not included)
    • ABS shower drain with receptor base
    • Included drain cover helps keep drain clear of unwanted items to keep it flowing freely with fewer clogs


42788 - spec sheet

Manufacturer Resources

Product Specs

Connection Type:
Solvent Weld
Drain Orientation:
Shower
Volume:
0.036
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Drainage Products
Product Type:
Drain
Product Finish:
Black
Product Material:
ABS
Product Weight:
0.833

OATEY 42788 – Frequently Asked Questions

1) What does the 1-1/2 in. offset on the Oatey 42788 shower drain actually solve?
The 42788 drain body shifts the outlet 1-1/2 inches off center, so you can land on an existing 2 inch drain line when a joist is in the way or the slab penetration didn't come out where the shower base opening sits. It's the fix when moving the joist or recoring the slab isn't an option.
2) Will the Oatey 42788 connect to 2 inch ABS DWV pipe, and does it need a coupling?
It solvent welds directly over 2 in. ABS DWV pipe, no coupling needed. The connection is solvent weld only, so it pairs with ABS cement and ABS pipe. If your stack is PVC, this is the wrong drain for it.
3) Can I use this drain with a tile shower pan or a liner?
No. The 42788 is built for preformed shower stall bases, sealing to the receptor with a fiber and rubber washer. A mortar-bed tile shower with a PVC or CPE pan liner needs a clamping ring drain with weep holes instead, not this receptor-style body.
4) Is a strainer included with the Oatey 42788, and what size is it?
A 4-1/4 in. round snap-tite stainless steel strainer ships with the drain. It snaps onto the drain body after the body is installed and sealed, so you set the drain first and press the cover in last.
5) Can I swap the strainer for a brushed nickel or bronze cover later?
Yes. The drain top accepts any Oatey 4-1/4 in. Universal Snap-Tite strainer, which come in a range of designer finishes. Those covers are sold separately, so order the finish you want alongside the drain if you're matching other trim in the unit.
6) How does the Oatey 42788 seal against the shower base so it doesn't leak?
A fiber washer and a rubber washer clamp the receptor base to the shower pan for an airtight seal at the pan opening. That's the sealing surface, so the pan's drain hole has to be clean and flat where the washers bear.
7) What color and material is the Oatey 42788 drain body?
Black ABS for the body and receptor, with a stainless steel strainer on top. Property managers doing repeat unit turns get a consistent look with the standard stainless cover, or can spec a different Snap-Tite finish per unit.
8) What is the manufacturer part number to order this Oatey offset shower drain?
Oatey part number 42788. Quote it as the 2 in. offset ABS shower drain with stainless steel strainer so it isn't confused with a straight, non-offset receptor drain.
