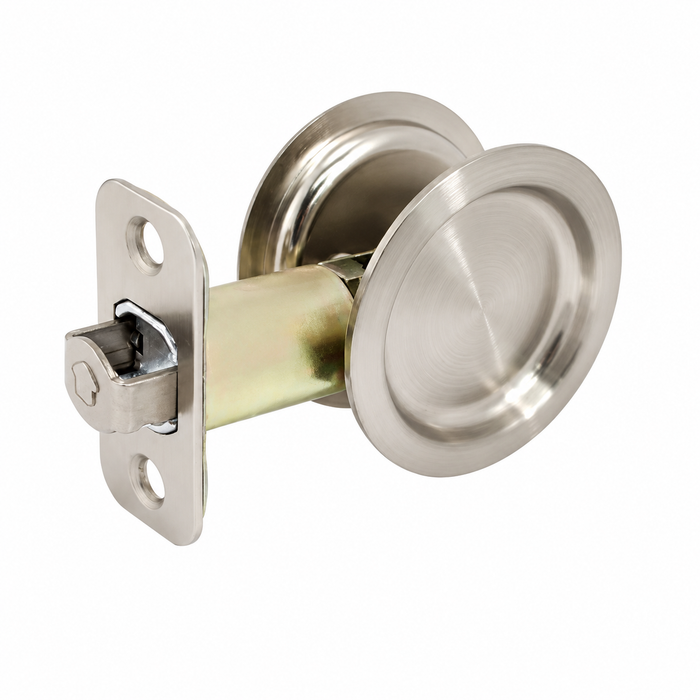

Cal-Royal 14SDLR/30SDLR Passage Sliding Door Lock with Pop-Up Finger Pull

Cal-Royal 14SDLR/30SDLR Passage Sliding Door Lock with Pop-Up Finger Pull

(No reviews yet) Write a Review

Model: 30SDLR-US26
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.71
$23.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal 14SDLR/30SDLR Passage Sliding Door Lock with Pop-Up Finger Pull

The Cal-Royal 14SDLR/30SDLR Passage Sliding Door Lock is a purpose-built pocket door lock engineered for smooth, reliable operation on interior sliding doors. The 14SDLR model features a 2 × ½" backset, while the 30SDLR model offers a 2 3/4" backset, giving installers flexibility to match existing door preparations. Both models incorporate an easy pop-up finger pull for simple, low-profile operation, and are designed for straightforward installation onto pocket-type interior doors commonly found in commercial applications.

Key Features

  • Backset Options: 14SDLR offers a 2 × ½" backset, while 30SDLR offers a 2 3/4" backset, allowing compatibility with a range of pocket door preparations.
  • Finish Availability: 14SDLR is available in US15, 26, 26D, and US10B finishes; 30SDLR is available in US26D finish, providing options to match surrounding hardware.
  • Pop-Up Finger Pull: An easy pop-up finger pull mechanism allows for simple, low-profile operation without protruding hardware that could interfere with door travel.
  • Simplified Installation: Designed for easy installation onto pocket-type interior doors, reducing labor time during setup.
  • Passage Function: Configured as a passage-style lock, suited for interior doors where privacy locking is not required but smooth latching operation is desired.
  • Pocket Door Compatibility: Purpose-built for pocket-type sliding doors, a category distinct from standard hinged door hardware, ensuring proper fit and function.

Technical Specifications

  • Subcategory: Sliding Door Locks
  • Product Group: Sliding Door and Barn Door Hardware
  • Product Subgroup: Pocket Door Hardware
  • Product Type: Sliding Door Locks
  • Commercial/Residential: Commercial
  • Product Model: 14SDLR / 30SDLR
  • Product Category: Sliding Door and Barn Door Hardware
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal 14SDLR/30SDLR?

Cal-Royal pocket door hardware is engineered to deliver dependable passage function with backset options and finish choices that make it easy to match existing door preparations and hardware finishes. The pop-up finger pull design simplifies daily operation while supporting the streamlined aesthetic pocket doors require. Built for commercial-grade interior applications, this lock offers a practical, easy-to-install solution for pocket-type sliding doors.

Product Specs

Subcategory:
Sliding Door Locks
Product Group:
Sliding Door and Barn Door Hardware
Product Subgroup:
Pocket Door Hardware
Product Type:
Sliding Door Locks
Commercial/Residential:
Commercial
Product Model:
14SDLR / 30SDLR
Product Category:
Sliding Door and Barn Door Hardware
Department:
Door Hardware

Cal-Royal 30SDLR-US26 – Frequently Asked Questions

1) What backset do I need to order for a Cal-Royal 14SDLR/30SDLR pocket door lock?
Two backsets are offered on the Cal-Royal SDLR pocket door lock: 2-3/8 inches and 2-3/4 inches. Measure from the edge of the door to the center of the existing cross bore in the door face and match it. The 2-3/4 inch option is the 30SDLR. Getting this wrong is the usual reason a pocket door lock will not sit into an existing prep, since the mortise pocket and the face bore have to line up together.
2) Will a Cal-Royal SDLR sliding door lock work on a regular hinged door?
No. The 14SDLR/30SDLR is built for pocket-type sliding doors, and the hardware is a flush pull-and-latch set that mounts into the face and edge of a sliding leaf. A hinged door needs a bored or mortise lockset with a knob or lever and a strike in the jamb. If the door swings, this is the wrong part.
3) Does the Cal-Royal 14SDLR/30SDLR lock the door, or is it passage only?
Passage only. It latches and pulls, it does not lock, so it is not the part for a restroom, a changing room, or any opening that needs privacy. If someone needs the pocket door to secure or hold shut against occupants, specify a privacy or keyed sliding door lock instead. For closets, storage, and office pass-through openings, passage is what you want.
4) Can I replace an existing pocket door pull with a Cal-Royal SDLR without re-prepping the door?
Often yes, if the backset matches. The SDLR is offered in 2-3/8 and 2-3/4 inch backsets specifically so an installer can pick up an existing pocket door preparation rather than cut a new one. Pull the old plate, measure edge of door to the center of the face bore, and order the matching backset. If the existing hole falls at neither dimension, the door face will need patching and re-boring.
5) How does the pull on a pocket door lock stay out of the way when the door slides into the wall?
The SDLR uses a pop-up finger pull that sits flush in the face plate and lifts out only when you grab it. Nothing protrudes past the door face, so the leaf can travel fully into the pocket without the pull catching on the jamb or the split stud. That is the whole reason pocket door hardware is built this way rather than using a knob.
6) What finishes does the Cal-Royal SDLR pocket door lock come in, and can I match the levers on the rest of the floor?
Four finishes: US15 satin nickel, US26 polished chrome, US26D satin chrome, and US10B antique bronze oiled. US26D satin chrome is the common commercial default and is what most institutional lever and closer hardware is specified in, so a pocket door on the same corridor will read as part of the set. Both the 2-3/8 and 2-3/4 inch backsets are offered in all four.
7) Is the Cal-Royal 14SDLR rated for commercial use or is it residential-grade pocket door hardware?
Cal-Royal classes the SDLR as commercial hardware, and the applications it is aimed at are office buildings, schools, healthcare, retail, multi-tenant residential, and government facilities. For a property manager standardizing pocket door hardware across a portfolio, that is the relevant point: it is the same part whether the opening is in a leased suite or a common area.
8) Do I get everything I need in one Cal-Royal SDLR pocket door lock, or is the edge pull sold separately?
The SDLR is a passage sliding door lock with the pop-up finger pull built into it, so the pull and the latching hardware come as one unit rather than as a pull kit plus a separate latch. What it does not include is the sliding track and hangers. Those are separate pocket door frame hardware, and on a new opening you order them alongside this.
9) How do I keep the finish on a satin chrome or antique bronze pocket door pull from wearing at a high-traffic opening?
A pop-up finger pull takes hand contact directly on the plated surface every cycle, so oils and cleaner residue are what dull it, not the traffic itself. Wipe with a damp cloth and dry it, and keep abrasives and solvent cleaners off it. Cal-Royal publishes finish care guidance covering its plated finishes, including the US26D satin chrome and US10B antique bronze oiled the SDLR is offered in. Oiled bronze in particular is meant to change with handling rather than stay uniform.
