Cal-Royal 8652-KIT Basic 6" Ro...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$404.24

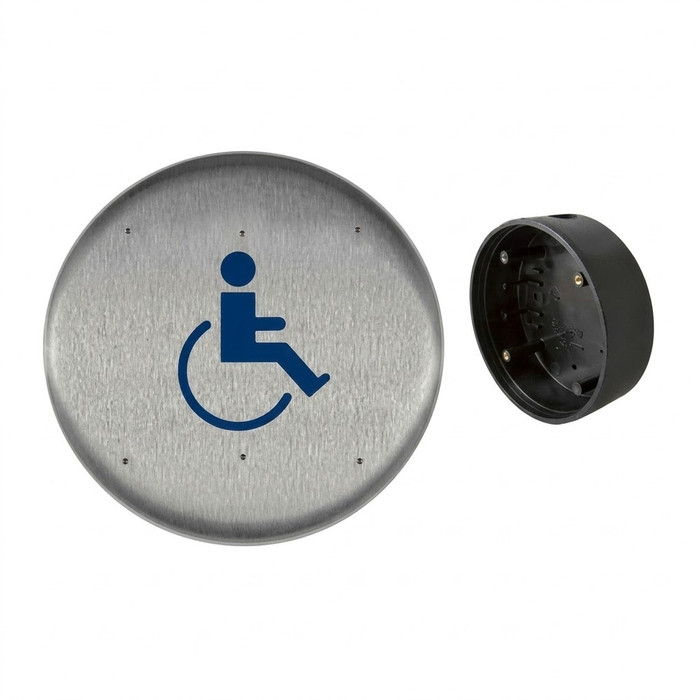

Cal-Royal Cal-Royal 8652-KIT Basic 6" Round Push Plate package, 2x 8637-SW, 8600 Series 8652-KIT

Cal-Royal 8652-KIT Basic 6" Round Push Plate Package with 8600 Series Automatic Swing Door Operator

(No reviews yet) Write a Review

Model: 8652-KIT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$404.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal 8652-KIT Basic 6" Round Push Plate Package with 8600 Series Automatic Swing Door Operator

The Cal-Royal 8652-KIT pairs a Basic 6" round push plate package (including 2x 8637-SW switches) with the 8600 Series Automatic Swing Door Operator to convert virtually any manual swing door into a fully automatic, ADA-compliant entry. Compatible with wood, metal, and glass doors, this kit is engineered for fast, easy retrofit installation in commercial, retail, and industrial environments. The 8600 Series operator features a programmable controller with digital LED display, selectable Push & Go operation, and a standard 14" push side reveal, delivering effortless door convenience while supporting improved traffic flow and accessibility compliance.

Key Features

  • Extendable Spindle: Spindle extends up to 3" for unique installations requiring the operator to be mounted higher than typical setups.
  • Standard Push Side Reveal: 14" standard reveal on the push side for consistent, reliable installation.
  • Electrified Lock Input Option: Selectable Fail Safe or Fail Secure electric strike operation with adjustable 0.2 to 2.0 sec. electric lock delay between activation and opening cycle start.
  • Digital Impulse Signal Connection: Wet input supports 12/24 VDC accessories, allowing impulse signals to connect directly to the control board without costly relays.
  • Programmable Digital Controller: LED display interface simplifies installation setup and programming for technicians.
  • Push & Go Feature: Selectable operation with separate adjustable hold-open times engages automatic opening after a pedestrian manually moves the door.
  • Built-In Obstacle Detection: Safety feature on opening and closing operations reverses door direction to prevent pedestrian entrapment, with up to 4 attempts.
  • Power Close Force Settings: 5 separate force settings from fully open 90° position to fully closed for tailored operation.
  • Wind Force Dampening: Engages the motor to reduce abrupt door speed and help prevent damage to the door, hinges, and operator arms.
  • Stack Pressure Compensation: Adjustable force feature engages power close operation during the last 30° of swing to manage stack pressure.
  • Before Open Latch Assist: Selectable 2.0 sec. power close "before open" latch assist helps prevent binding of the electric strike.
  • Blow Open for Smoke: Enables the door to open on receipt of an alarm system signal, allowing air and smoke to ventilate out.
  • Electronic & Mechanical Stop: Adjustable stop feature helps prevent damage to door hinges, walls, and operator arms.
  • Presence Detector Input: Supports input from 2 external safety sensors for enhanced pedestrian protection.
  • Compatible Accessories: Includes 2x 8637-SW switch plates as part of the Basic 6" round push plate package.

Technical Specifications

  • Subcategory: Door Closers Accessories
  • Product Group: Electronic Access Controls
  • Product Subgroup: Parts and Accessories
  • Product Type: Parts and Accessories
  • Electronic: Yes
  • Product Model: 8652-KIT
  • Product Category: Electronic Access Controls
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal 8652-KIT?

Cal-Royal engineers the 8600 Series operator with a programmable digital controller, multiple safety systems including built-in obstacle detection and presence detector input, and flexible power close and lock delay adjustments to suit demanding commercial applications. The 8652-KIT's combination of a durable 6" round push plate package and a feature-rich automatic operator delivers dependable, ADA-supportive door automation designed for reliable everyday performance.

Product Specs

Subcategory:
Door Closers Accessories
Series:
8600 Series
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
8652-KIT
Product Category:
Electronic Access Controls
Department:
Door Hardware

Cal-Royal 8652-KIT – Frequently Asked Questions

1) What exactly comes in the Cal-Royal 8652-KIT?
The 8652-KIT bundles the 8600 Series automatic swing door operator with a basic 6 inch round push plate package, including two 8637-SW switch plates. That gives you the operator plus the actuators for both sides of the opening in one order, so a typical single swing door retrofit is covered without sourcing switches separately.
2) Can the Cal-Royal 8652-KIT be installed on an existing manual door, or do I need a new door?
It is a retrofit package. The 8600 Series operator converts an existing manual swing door to automatic operation, and it works on wood, metal, and glass doors in commercial, retail, and industrial openings. No new door leaf is required.
3) How much reveal does the Cal-Royal 8600 Series operator need on the push side?
The operator is built around a 14 inch standard push side reveal. If your header condition puts the operator higher than a typical mount, the spindle extends up to 3 inches to make up the difference.
4) Will the Cal-Royal 8600 Series operator work with an electric strike?
Yes. The operator has an electrified lock input you can set for either fail safe or fail secure strike operation, with an adjustable 0.2 to 2.0 second lock delay so the strike releases before the door starts its opening cycle. There is also a selectable 2.0 second power close before open latch assist to relieve pressure on the strike and keep it from binding.
5) Can the LCN 8310-3803 wireless conversion kit be used instead of the Cal-Royal 8652-KIT to automate a door?
No. The Cal-Royal 8652-KIT is a complete package that pairs the 8600 Series automatic swing door operator with a Basic 6 inch round push plate package including two 8637-SW switches, so it converts a manual swing door to automatic operation on its own. The LCN 8310-3803 is a 3V wireless conversion kit for jamb mount touchless actuators - it changes how an existing actuator signals, and does not include an operator that moves the door. Use the 8310-3803 when an operator is already installed and the goal is to make the jamb actuator wireless or touchless; use the 8652-KIT when the door is still manual.
6) Do I need relays to connect a card reader or other access control to this Cal-Royal operator?
Not for standard impulse signals. The 8600 Series control board has a wet digital impulse input supporting 12/24 VDC accessories, so activation devices land directly on the board without added relay hardware. There are also two presence detector inputs for external safety sensors.
7) What keeps the door from closing on someone with the Cal-Royal 8600 operator?
Obstacle detection is built into the operator on both the opening and closing cycle. When it senses an obstruction it reverses the door direction to prevent entrapment, and it will retry up to 4 times. Two presence detector inputs are available if the opening also calls for external safety sensors.
8) What is Push and Go on the Cal-Royal 8600 Series, and can I turn it off?
Push and Go is selectable. With it enabled, a pedestrian starts the door by hand and the operator takes over and completes the opening automatically, using its own separate adjustable hold open time. Turn it off and the door only cycles from an actuator such as the included 8637-SW push plates.
9) Will this Cal-Royal operator hold up on a windy exterior entrance?
There are several settings aimed at that. Wind force dampening engages the motor to slow abrupt door movement and protect the door, hinges, and arms. Stack pressure compensation adds adjustable force through the last 30 degrees of swing, and there are 5 separate power close force settings from the fully open 90 degree position to fully closed. An adjustable electronic and mechanical stop limits over-swing into walls.
10) Does the Cal-Royal 8652-KIT include a request-to-exit switch for the exit device?
No. The kit covers the operator and two push plate actuators only. If you also need latch or exit device monitoring tied back to access control, that is a separate item, for example the Command Access CRSREXKIT-ED field installable request to exit kit for Cal-Royal 22/98 and Sargent 80 Series devices.
11) For a touchless activation instead of the 6 inch round push plates in the 8652-KIT, what are the options?
The 8652-KIT ships with the Basic 6 inch round push plate package and two 8637-SW switches, which require contact to activate. Where a hands-free jamb actuator is preferred, the LCN 8310-3803 is a 3V wireless conversion kit for jamb mount touchless actuators and addresses that activation method. The 8600 Series controller accepts impulse signals on a 12/24 VDC wet input, which is the connection point any alternate activation device would use.
12) We are automating an all-glass storefront door - is the Cal-Royal 8652-KIT the right choice, or do we need Securitron glass door accessories?
The 8652-KIT operator is stated as compatible with wood, metal, and glass doors, so the operator and 6 inch round push plate package suit a glass swing door application. The Securitron GDB glass door accessories are a separate line of mounting accessories for glass doors, rated Grade 2, used where a device has to be attached to a frameless glass leaf. They solve mounting on glass, not automation, so they are a complement to a door hardware installation rather than a substitute for an automatic operator package.
13) Does the Cal-Royal 8652-KIT need a separate transformer like the Adams Rite 4605?
The 8652-KIT's 8600 Series operator has a wet input that supports 12/24 VDC accessories, letting impulse signals connect directly to the control board without costly relays, so low voltage accessory power is handled at the operator's controller. The Adams Rite 4605 is a standalone transformer stepping 115 VAC down to 12/24 VAC with a 40 volt-amp output, used where a separate device needs its own AC supply. It is a power source for other hardware rather than a required companion to the 8652-KIT package.
14) We already have an exit device on the door - do Command Access REX kits replace what the 8652-KIT provides?
No, they address different functions. The Command Access CRSREXKIT-ED is a field installable request to exit kit for Cal Royal 22/98 and Sargent 80 Series exit devices with an SPDT switch, and the REX-KIT-ML is a field installable request to exit kit for ML1-Series mortise locks. Those send a signal when the exit device or lock is operated. The 8652-KIT supplies the 8600 Series automatic swing door operator plus two 8637-SW push switch plates that trigger the opening cycle, and the operator includes a selectable fail safe or fail secure electrified lock input with an adjustable 0.2 to 2.0 second lock delay for coordinating with an electric strike. A REX kit can feed an access control system on the same opening, but it will not open the door.
15) Can the door be tied into the fire alarm to release for smoke ventilation?
Yes. The 8600 Series operator has a blow open for smoke function that opens the door when it receives a signal from the alarm system, letting air and smoke vent out of the space.
16) Is the Cal-Royal 8652-KIT suitable for a residential entry door?
It is specified as commercial. The 8652-KIT is aimed at office buildings, schools, healthcare facilities, retail, warehouses, government buildings, and multi-tenant residential common areas rather than single-family residential use.
17) Is the Cal-Royal 8600 operator programmed with dip switches or a display?
Setup runs through a programmable digital controller with an LED display interface, so a technician adjusts hold open times, force settings, lock delay, and Push and Go from the board readout rather than guessing at switch positions.
18) Is the DynaLock 6451-36 exit sensor bar an alternative to the push plates supplied with the 8652-KIT?
They serve different openings. The DynaLock 6451-36 is an exit sensor bar sized for a 36 inch door and mounts across the door to signal egress. The 8652-KIT includes two 8637-SW switch plates in a 6 inch round format for wall or jamb mounting, which activate the 8600 Series operator's opening cycle from either side of the opening. A sensor bar is tied to a specific door width, while the round push plates are mounted independent of door size.
