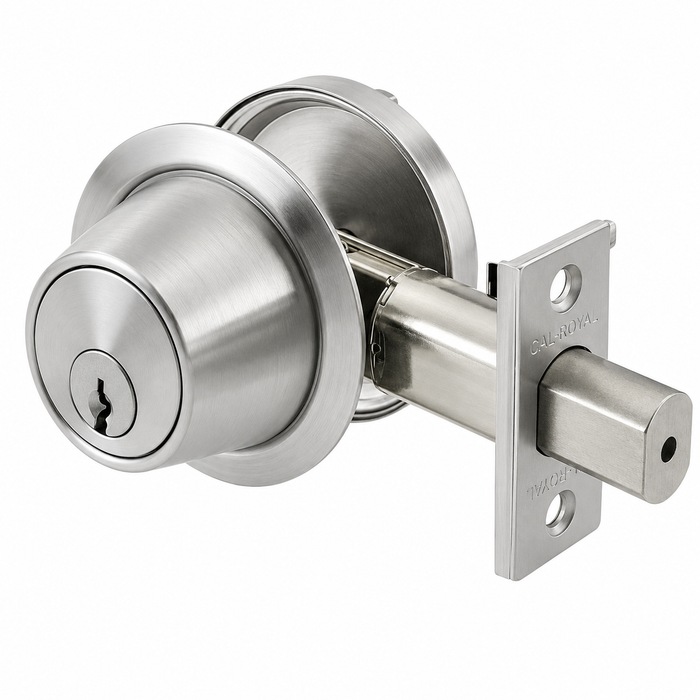

Cal-Royal CB162 Grade 2 Double Cylinder Deadbolt with Tampered Cylinder Guard

Cal-Royal CB162 Grade 2 Double Cylinder Deadbolt with Tampered Cylinder Guard

(No reviews yet) Write a Review

Model: CB162-US5
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$139.89
$42.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal CB162 Grade 2 Double Cylinder Deadbolt with Tampered Cylinder Guard

The Cal-Royal CB162 is a Grade 2 double cylinder deadbolt from the CB160 Series, engineered for standard commercial and residential applications. Constructed with wrought brass or stainless steel trim, this deadbolt is adjustable for 1 × ¼" (35mm) to 1 ¾" (45mm) door thickness and features an adjustable 2 × ½" or 2 ¾" backset for versatile door preparation compatibility. A 2" diameter tampered cylinder guard with metal insert turns freely with any removal attempt, adding an extra layer of security to this double cylinder function lock.

Key Features

  • Door Thickness Range: Adjustable 1 × ¼" (35mm) to 1 ¾" (45mm) to fit a wide range of door applications.
  • Adjustable Backset: 2 × ¼" or 2 ¾" adjustable backset, square corner, for flexible installation.
  • Deadbolt Faceplate: Standard 2 × ¼" x 1" latchbolt faceplate packed with × ⅛" plastic filler to convert to 1 × ⅛" wide door preparations.
  • Bore Diameter: 1" bore for latch, with 1 ½" or 2 × ⅛" bore for lock housing, plus a 2 × ⅝" diameter adapter ring for 2 × ⅛" door preparations.
  • Standard Strike: 1 × ⅛" x 2 ¾" square corner strike for reliable engagement.
  • Tamper Protection: 2" diameter tampered cylinder guard with metal insert that turns freely with any removal attempt, resisting forced entry.
  • Keyway Options: Standard 6-pin solid brass "C" keyway, with optional Schlage C-K composite, Schlage "E", Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA, and Yale 8 keyways available.
  • Double Cylinder Function: Requires a key on both interior and exterior sides for added security control in commercial and residential settings.

Technical Specifications

  • Product Group: Mechanical Locks
  • Series: CB160 Series
  • Grade: Grade 2
  • Product Subgroup: Bored Locksets
  • Product Type: Deadbolts
  • Subcategory: Deadbolts
  • Commercial/Residential: Commercial
  • Features: 2-5/8" Diameter Adapter Ring for 2-1/8" Door Preparations; 2" Diameter Tampered Cylinder Guard and Metal Insert, Turns Free With Any Removal Attempt; Standard Commercial and Residential Applications
  • Keyed: Yes
  • Front Size: 2-1/4" x 1"
  • Product Attribute: Deadbolts
  • Standard Strike: 1-1/8" x 2-3/4", Square Corner
  • Product Model: CB160
  • Backset (Distance): 2-3/8 or 2-3/4 Adjustable, Square Corner
  • Product Function: Double Cylinder
  • Product Category: Mechanical Locks
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal CB162?

Cal-Royal CB162 deadbolts deliver dependable Grade 2 performance backed by a tampered cylinder guard that resists removal attempts, along with adjustable backset and door thickness ranges for straightforward installation across commercial and residential doors. With extensive keyway options including Schlage, Russwin, Corbin, Sargent, Falcon/Weiser, Kwikset, Arrow, and Yale compatibility, the CB160 Series offers the flexibility professional installers need for standardized keying programs.

Product Specs

Product Group:
Mechanical Locks
Series:
CB160 Series
Grade:
Grade 2
Product Subgroup:
Bored Locksets
Product Type:
Deadbolts
Subcategory:
Deadbolts
Commercial/Residential:
Commercial
Features:
2-5/8" Diameter Adapter Ring for 2-1/8" Door Preparations; 2" Diameter Tampered Cylinder Guard and Metal Insert, Turns Free With Any Removal Attempt; Standard Commercial and Residential Applications
Lock Function:
Deadbolt
Keyed:
Yes
Front Size:
2-1/4" x 1"
Product Attribute:
Deadbolts
Standard Strike:
1-1/8" x 2-3/4", Square Corner
Product Model:
CB160
Backset (Distance):
2-3/8 or 2-3/4 Adjustable, Square Corner
Product Function:
Double Cylinder
Product Category:
Mechanical Locks
Department:
Door Hardware

Cal-Royal CB162-US5 – Frequently Asked Questions

1) Should I put a double cylinder deadbolt on this door, or a single cylinder with a thumbturn?
The CB162 is keyed on both sides, no thumbturn. That is what you want on a door with glass beside it or in the leaf, where someone could break the lite and reach the turn. The trade-off is egress: nobody leaves without a key, and many jurisdictions restrict double cylinder on a required exit door. If the opening needs free egress from inside, go to a cylinder-by-thumbturn deadbolt instead, like the Hager 3215 or the Dexter DB2000 single cylinder, both Grade 2.
2) Can I key the Cal-Royal CB162 into my building's existing Schlage or Yale system?
Yes. It ships standard with a 6-pin solid brass "C" keyway, and you can order it in Schlage C-K composite, Schlage "E", Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA, or Yale 8. For a property manager standardizing a master key system across a portfolio, that keyway list is the reason to look at the CB160 Series in the first place.
3) The Cal-Royal CB162 needs a key on the inside - what deadbolt takes a thumbturn instead on the same opening?
The CB162 is a double cylinder function, keyed both sides. Where a thumbturn inside is wanted, the Arrow DBX61 and the Callan 200S-G2 are both Grade 2 cylinder x thumbturn deadbolts, and the Hager 3215 is a Grade 2 single cylinder deadbolt with a 1 inch throw for 1-3/8 inch to 1-3/4 inch doors. Egress codes in many occupancies rule out a key on the inside of an exit door, which is the usual reason this swap gets made.
4) Which deadbolt goes on a fire rated opening where the Cal-Royal CB162 is being considered?
The Hager 3214 double cylinder deadbolt and the Hager 3215 single cylinder deadbolt both carry a fire rating and are Grade 2 for 1-3/8 inch to 1-3/4 inch doors, and the Hager 3118 Grade 1 classroom deadbolt is fire rated as well. For a labeled door in a healthcare, education, or government facility, the rated Hager units are the ones to put on the submittal.
5) What does the tampered cylinder guard on the Cal-Royal CB162 actually do against a break-in?
It is a 2 inch diameter guard with a metal insert that spins free the moment anyone tries to twist or wrench the cylinder out. A common attack on an exposed deadbolt is gripping the cylinder with pliers or a wrench and turning it until the retaining screws shear. The free-spinning guard gives the attacker nothing to bite on. Practical on a storefront or a back-of-house door where the cylinder faces the street.
6) Will the Cal-Royal CB162 line up with the strike already in my frame?
The CB162 comes with a 1-1/8 inch by 2-3/4 inch square corner strike. If your frame is prepped for that standard square corner strike, the bolt drops into the existing mortise and you are only chasing screw holes. Radius corner frame preps will need the frame recut or the corners dressed.
7) Is Grade 2 enough for a school or medical office corridor door, or do I need Grade 1?
The CB162 is an ANSI/BHMA Grade 2 deadbolt, which is the medium-duty commercial tier: fine for offices, retail, tenant entries, and back-of-house doors in schools and healthcare buildings. For a high-abuse opening or where the spec sheet calls out Grade 1, step up. Grade 1 double cylinder options include the Design Hardware D1 Series (extra heavy duty, 1-3/4 inch doors) and the Dexter DB1000 double cylinder, rated 1-3/8 to 1-7/8 inch.
8) What is the closest alternative to the Cal-Royal CB162 if I need a double cylinder deadbolt from another brand?
Staying at Grade 2 double cylinder, the Delaney LU Series in stainless steel (US32D) and the Dexter DB2000 double cylinder are the direct equivalents, the Dexter covering 1-3/8 to 1-3/4 inch doors. Drop to Grade 3 and the Callan 210S and Deltana 7312KA2 are double cylinder as well, the Deltana taking 1-3/8 to 2 inch doors if your leaf is thicker than the CB162's 1-3/4 inch ceiling. Where the CB162 separates itself is the keyway list and the free-spinning cylinder guard.
9) Is a Callan 210S the same thing as a Cal-Royal CB162 deadbolt?
Both are double cylinder deadbolts, but they are not the same grade. The Callan 210S is Grade 3; the Cal-Royal CB162 is Grade 2 and is catalogued for commercial use. If a Grade 2 double cylinder was specified, the 210S does not substitute for it. The Deltana 7312KA2 is likewise a Grade 3 double cylinder deadbolt, listed for 1-3/8 inch to 2 inch doors.
10) What is the difference between the Cal-Royal CB162 and a deadlock like the Corbin Russwin DL3211?
The CB162 is a double cylinder deadbolt, keyed on both faces. The Corbin Russwin DL3211 and DL2211 are Grade 1 cylindrical deadlocks built cylinder by blank, meaning one side takes a key and the other side is a blank plate with no operation at all. Where the CB162 lets a keyholder throw and retract from either face, a cylinder x blank deadlock only operates from the keyed side.
11) What replaces the Cal-Royal CB162 on an interchangeable core keying program?
The CB162 ships keyed with a 6-pin solid brass C keyway and a range of optional keyways. Where a facility runs small format interchangeable core, the Arrow E61 is a Grade 2 single cylinder deadlock with SFIC prep less core for 1-3/8 inch to 1-3/4 inch doors, and the Deltana CL200LAIC is a Grade 2 interchangeable core deadbolt with a 2-3/4 inch backset. Both let the facility's own cores go in rather than pinning to a supplied keyway.
12) Can a non-keyed deadlock be used where the Cal-Royal CB162 was planned?
Only if nobody needs key control. The Arrow E60 is a Grade 2 exit deadlock, non-keyed, blank plate by thumbturn, for 1-3/8 inch to 1-3/4 inch doors - it throws from the inside only and has no cylinder on either face. The CB162 is keyed and double cylinder, so it is the choice when the bolt must be operated by key from outside.
13) What deadbolt is used instead of the Cal-Royal CB162 when the opening is going to be keypad or credential controlled?
The Cal-Royal CB162 is a mechanical double cylinder deadbolt operated by key. For credential control, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, the Codelocks CL2200 is a medium duty electronic surface deadbolt, and the Dormakaba Saffire LX-D is an RFID electronic deadbolt with electronic lock override. Those are the ones to look at when the facility wants to issue and revoke access without rekeying.
14) What should be used instead of a Cal-Royal CB162 when the door also needs a latch for everyday use?
The CB162 is a deadbolt only - it throws a bolt and has no latching function. Where the door needs a latch as well, the Falcon H2101 is a Grade 2 entrance interconnected lock with a single cylinder deadbolt, which combines both on one door. That is the usual answer on an apartment or tenant entry where a separate knob or lever is not wanted.
15) What is a classroom function deadbolt compared to the Cal-Royal CB162?
The Falcon D211 is a Grade 2 classroom function deadbolt with single cylinder operation and medium duty rating, and the Falcon D111 is the Grade 1 heavy duty version with adjustable backset. Classroom function means the bolt is controlled from the keyed side rather than by a key on both faces, which is how the CB162 double cylinder works. Schools standardizing on classroom function will spec the D200 or D100 series over a double cylinder unit.
16) What finishes does the Cal-Royal CB162 deadbolt come in?
Four: satin nickel, satin chrome, oil rubbed bronze, and bright brass. Satin chrome is the one that reads closest to the US26D dull chrome most commercial buildings are already standardized on, so it is the usual pick when you are matching existing lever sets and closers down a corridor.
17) Is the Cal-Royal CB162 an add-on deadbolt or does it replace a lockset?
It is a standalone bored deadbolt, no handle and no latch retraction. It installs above an existing knob or lever set as auxiliary security, or on its own on a door that only needs to be locked and unlocked by key. If you want the deadbolt and the entry handle working as one unit off a single trim, that is an interconnected lock instead, like the Falcon H2101 with its Grade 2 single cylinder deadbolt.
18) Is the Baldwin Reserve deadbolt spacer a substitute for a Cal-Royal CB162?
No. The Baldwin Reserve 8BR0618001 is a deadbolt spacer and the BEST 8T is a tubular deadbolt tube component - both are parts that go inside or behind a lock, not complete deadbolts. The Cal-Royal CB162 is a complete double cylinder deadbolt with trim, bolt, strike, and cylinder guard. If a full lock is needed for the opening, a spacer or a tube component will not stand in for it.
19) What double cylinder deadbolt suits a decorative opening where the Cal-Royal CB162 trim is too plain?
The Baldwin Reserve double cylinder deadbolt comes in a contemporary round and a contemporary square trim, the Baldwin Estates 8011 is a contemporary 1-5/8 inch double cylinder deadbolt, and the Emtek 8323 Modern Disc is a brass double cylinder deadbolt. All are keyed both sides like the CB162, which carries wrought brass or stainless steel trim in satin nickel, satin chrome, oil rubbed bronze, and bright brass.
20) Which deadbolt has a fixed backset if the Cal-Royal CB162 adjustable backset is not wanted?
The CB162 is adjustable for a 2-3/8 or 2-3/4 inch backset with a square corner front. Fixed-backset peers include the Accentra D111 Grade 1 deadbolt at 2-3/8 inch and the Deltana CL200LA Grade 2 single cylinder at 2-3/4 inch. The Brinks Raleigh and Mendocino single cylinder deadbolts go the other direction with a 4-way adjustable backset.
