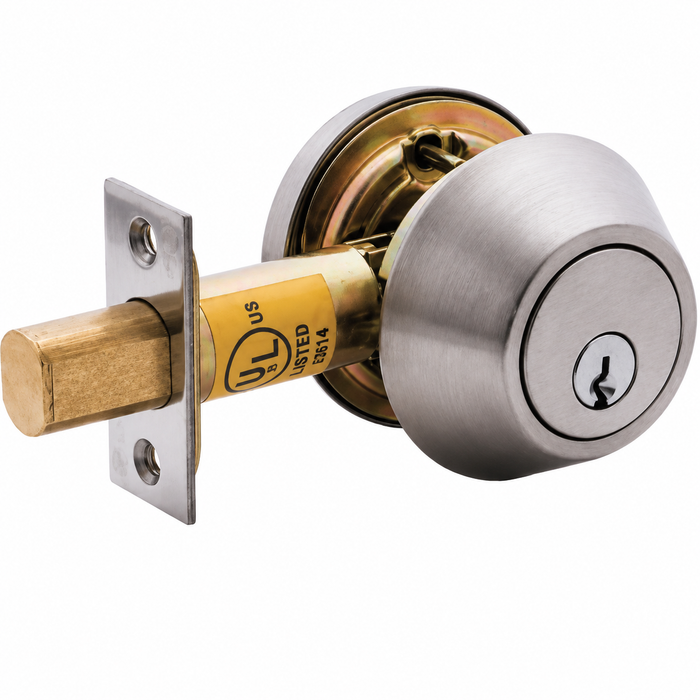

Cal-Royal T220 Grade 2 Single Cylinder Deadbolt with Interchangeable Core Compatibility

Cal-Royal T220 Grade 2 Single Cylinder Deadbolt with Interchangeable Core Compatibility

(No reviews yet) Write a Review

Model: T220-26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$37.80
$32.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal T220 Grade 2 Single Cylinder Deadbolt with Interchangeable Core Compatibility

The Cal-Royal T220 is a Grade 2 single cylinder deadbolt engineered for commercial door applications, featuring an adjustable door range of 1 3/8" (35mm) to 1 3/4" (45mm) and an adjustable backset of 2 3/8" or 2 3/4". Constructed with wrought brass or stainless steel trim, this deadbolt is designed with a dead locking latch bolt that retracts by key from the outside or by thumb turn on the inside. The T220 accepts interchangeable core cylinders compatible with BEST, FALCON, and ARROW 6 or 7 pin cores, as well as SCHLAGE full size format OEM interchangeable core cylinders and compatible Schlage 6-Pin Interchangeable Core.

Key Features

  • Adjustable Door Range: Fits doors from 1 3/8" (35mm) to 1 3/4" (45mm) thickness for versatile commercial door installations.
  • Adjustable Backset: 2 3/8" or 2 3/4" adjustable backset for T220 and T330 models simplifies field fitting.
  • Deadbolt Faceplate: Standard 2 1/4" x 1" faceplate packed with 1/8" plastic filler to convert to 1 1/8" wide door preparations.
  • Bore Diameter: 1" bore for latch and 1 1/2" or 2 1/8" bore for lock housing accommodates standard door prep dimensions.
  • Strike Plate: 1 1/8" x 2 3/4" square corner strike included for proper frame alignment.
  • Cylinder & Keyways: 6 pin solid brass "C" keyway standard for reliable, consistent keying.
  • Interchangeable Core Compatibility: Accepts compatible 6 or 7 pin cores from BEST, FALCON, and ARROW, plus SCHLAGE full size format OEM interchangeable core cylinders and compatible Schlage 6-Pin Interchangeable Core, offered by Cal-Royal Products Inc.
  • Dead Locking Function: Latch bolt retracted by key from outside or by thumb turn on inside for secure single cylinder operation.
  • Trim Options: Available in wrought brass or stainless steel construction for durable commercial-grade performance.

Technical Specifications

  • Product Group: Mechanical Locks
  • Series: T220 Series
  • Grade: Grade 2
  • Product Subgroup: Bored Locksets
  • Product Type: Deadbolts
  • Subcategory: Deadbolts
  • Commercial/Residential: Commercial
  • Features: Interchangeable Core Locks will Accept Compatible 6 or 7 Pin Cores With Best Falcon and Arrow; Dead Locking Latch Bolt Retracted by Key From Outside or by Thumb Turn on Inside
  • Keyed: Yes
  • Product Attribute: Deadbolts
  • Standard Strike: 1-1/8" x 2-3/4", Square Corner
  • Backset (Distance): 2-3/8 or 2-3/4 Adjustable, Square Corner
  • Product Function: Cylinder x Thumbturn
  • Product Category: Mechanical Locks
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal T220?

Cal-Royal T220 deadbolts deliver dependable Grade 2 commercial performance with wrought brass or stainless steel construction built for demanding door applications. Broad interchangeable core compatibility across BEST, FALCON, ARROW, and Schlage systems makes the T220 a flexible choice for facilities standardizing on a single deadbolt platform. Engineered for reliable dead locking security in high-traffic commercial environments.

Product Specs

Product Group:
Mechanical Locks
Series:
T220 Series
Grade:
Grade 2
Product Subgroup:
Bored Locksets
Product Type:
Deadbolts
Subcategory:
Deadbolts
Commercial/Residential:
Commercial
Features:
Interchangeable Core Locks will Accept Compatible 6 or 7 Pin Cores With Best Falcon and Arrow; Dead Locking Latch Bolt Retracted by Key From Outside or by Thumb Turn on Inside
Lock Function:
Deadbolt
Keyed:
Yes
Product Attribute:
Deadbolts
Standard Strike:
1-1/8" x 2-3/4", Square Corner
Product Model:
T220
Backset (Distance):
2-3/8 or 2-3/4 Adjustable, Square Corner
Product Function:
Cylinder x Thumbturn
Product Category:
Mechanical Locks
Department:
Door Hardware

Cal-Royal T220-26D – Frequently Asked Questions

1) Will the Cal-Royal T220 deadbolt fit a 1-3/8 inch door, or do I need a 1-3/4 inch door?
Both. The T220 is adjustable across 1-3/8 inch (35mm) to 1-3/4 inch (45mm), so the same part covers an older 1-3/8 interior door and a standard 1-3/4 commercial door. That matters if you are buying for a building with a mix of vintages: one SKU covers both, and installers adjust in the field rather than sorting stock by door thickness.
2) My doors are prepped with a 2-3/4 inch backset. Does the Cal-Royal T220 deadbolt work, or is it a 2-3/8 only?
The T220 ships with an adjustable backset that sets to either 2-3/8 or 2-3/4 inches, which are the two standard bored preps, so it drops into either existing hole pattern without a separate part number. On a retrofit you do not have to measure the old bolt before ordering, only before installing.
3) Can I put my BEST small format cores into the Cal-Royal T220 deadbolt?
Yes. The T220 accepts compatible 6 or 7 pin interchangeable cores from BEST, FALCON and ARROW, and it also takes SCHLAGE full size format OEM interchangeable core cylinders and the compatible Schlage 6-pin IC. If your facility is already keyed on a BEST system, you buy the deadbolt and core it from your existing stock rather than rekeying to a new keyway.
4) Will the Cal-Royal T220 line up with the strike already in my frame?
The T220 includes a 1-1/8 x 2-3/4 inch square corner strike, which is the ordinary bored-deadbolt frame prep. If the existing frame carries a square corner strike of that size, you reuse the mortise and just swap plates. A radius corner or a full lip mortise strike prep will not match and needs the frame filled or a different strike.
5) Is a Grade 2 deadbolt enough for a commercial building, or should I be buying Grade 1?
The T220 is Grade 2 and catalogued for commercial use, which is the usual pick for tenant doors, back-of-house and multi-family openings. Where a spec or a high-abuse entry calls for Grade 1, the comparable set includes the Accentra D111, the Falcon D111 with adjustable backset, and the Delaney LM Series less-core deadbolt. Grade 1 is the higher ANSI/BHMA durability and strength tier; Grade 2 is the medium-duty tier below it.
6) I need an interchangeable core deadbolt but I want to compare brands. What else is there besides the Cal-Royal T220?
Two close ones in the same class. The Deltana CL200LAIC is a Grade 2 cylinder x thumbturn single deadbolt built for interchangeable core, fixed at a 2-3/4 inch backset rather than adjustable. The Arrow E61 in 26D is a Grade 2 single cylinder deadlock prepped for SFIC and shipped less core, covering 1-3/8 to 1-3/4 inch doors. The T220's difference is the field-adjustable backset plus a standard C keyway cylinder if you decide not to go IC after all.
7) My door is 2 inches thick. Will the Cal-Royal T220 deadbolt still work?
No. The T220 tops out at 1-3/4 inches, so a 2 inch or thicker door is out of range. For thicker leaves the Corbin Russwin DL3011 Grade 1 cylindrical deadlock covers 1-3/4 to 2-1/4 inches, and the Deltana 7312KA2 double cylinder covers 1-3/8 to 2 inches. Measure the leaf before you order rather than after the hole is bored.
8) What single cylinder deadbolt steps up to Grade 1 from the Cal-Royal T220?
The Cal-Royal T220 is Grade 2. For a Grade 1 deadbolt with the same cylinder x thumbturn operation, the Dexter DB1000-SCT is Grade 1 and fits doors 1-3/8 inch to 1-7/8 inch, and the Accentra D111 is Grade 1 cylinder x thumbturn covering 1-3/8 inch to 1-3/4 inch. The Falcon D111 is a Grade 1 heavy duty cylinder x thumbturn deadbolt in the D100 Series. Facilities writing Grade 1 into the door schedule use one of those in place of the T220.
9) The Cal-Royal T220 keys from outside and turns from inside - what deadbolt keys from both sides instead?
The T220 is a single cylinder deadbolt: the bolt retracts by key from the outside or by thumb turn on the inside. On a door with glass beside it where a thumbturn is not wanted, a double cylinder deadbolt is keyed on both faces. The Dexter DB2000-DCT is Grade 2 double cylinder for 1-3/8 inch to 1-3/4 inch doors, the Hager 3214 is a Grade 2 double cylinder deadbolt with a Schlage C keyway for the same 1-3/8 inch to 1-3/4 inch range, and the Delaney LU Series 320601 is Grade 2 double cylinder. Confirm the local egress code allows a double cylinder on the opening before specifying one.
10) What replaces the Cal-Royal T220 on an exit door that should not be keyed at all?
The T220 is keyed, with a cylinder outside and thumbturn inside. Where the opening only needs to be secured from the inside and no outside key is wanted, the Arrow E60 is a Grade 2 exit deadlock, non-keyed, with a blank plate outside and thumbturn inside, covering doors 1-3/8 inch to 1-3/4 inch. The Callan 205S is a Grade 3 one-sided half-bore deadbolt for openings with no outside prep at all.
11) Which other deadbolts accept a small format interchangeable core like the Cal-Royal T220?
The T220 accepts compatible 6 or 7 pin cores from BEST, Falcon, and Arrow. If a keying system already runs on interchangeable cores, the Deltana CL200LAIC is a Grade 2 single cylinder deadbolt supplied for an interchangeable core rather than a fixed cylinder, the Arrow E61 26D IC is a Grade 2 single cylinder deadlock with SFIC prep less core for 1-3/8 inch to 1-3/4 inch doors, and the Delaney LM Series 301702 is a Grade 1 single cylinder less core deadbolt in dull chrome US26D. Those take the core from the existing system the same way the T220 does.
12) What deadbolt fits a door thicker than the Cal-Royal T220 range covers?
The T220 adjusts for doors 1-3/8 inch to 1-3/4 inch. For thicker stock, the Corbin Russwin DL3011 is a Grade 1 cylindrical deadlock covering 1-3/4 inch to 2-1/4 inch doors, and the Deltana 7312KA2 is a Grade 3 double cylinder deadbolt covering 1-3/8 inch to 2 inch. The Dexter DB1000-SCT reaches 1-7/8 inch with cylinder x thumbturn operation, a short step past the T220 range while keeping the same key-outside, turn-inside function.
13) Which alternative to the Cal-Royal T220 carries a fire rating for a rated opening?
For a labeled door, the Hager 3215 is a Grade 2 single cylinder deadbolt with a 1 inch throw carrying a fire rating and fitting 1-3/8 inch to 1-3/4 inch doors, the same range the T220 adjusts across. The Hager 3115 is a Grade 2 cylinder x thumbturn deadbolt with a Schlage C keyway, also fire rated over that range, and the Hager 3118 is the Grade 1 classroom version with a Schlage C keyway and 6-pin cylinder. The T220 ships with a 6 pin solid brass C keyway as standard, so keying carries across to those Hager units.
14) Which deadbolt matches the Cal-Royal T220 adjustable backset for a door prep that is not yet confirmed?
The T220 adjusts between a 2-3/8 inch and 2-3/4 inch backset, so one part covers either prep in the field. The Brinks Raleigh E2401 round and Mendocino E2402 square single cylinder deadbolts both use a 4 way adjustable backset and are cylinder x thumbturn. Where the prep is known to be a fixed 2-3/8 inch, the Accentra D111 is built to that backset; for a fixed 2-3/4 inch, the Deltana CL200LA is a Grade 2 single deadbolt at that backset.
15) What keyway does the Cal-Royal T220 come with if I do not use interchangeable cores?
Standard build is a 6-pin solid brass C keyway cylinder, so it keys straight into a Schlage C system. If you would rather run interchangeable core, the same deadbolt accepts BEST, FALCON and ARROW 6 or 7 pin cores instead. Two keying paths off one part, decided at install.
16) What finishes does the Cal-Royal T220 deadbolt come in for matching the rest of my building?
Five: Oil Rubbed Bronze, Bright Chrome, Satin Chrome, Bright Brass and Antique Brass. Bright and Satin Chrome cover most commercial openings, Bright and Antique Brass match older brass trim packages, and Oil Rubbed Bronze suits darker residential-style hardware in multi-family. Trim is wrought brass or stainless steel underneath.
17) Can I standardize a whole property on the Cal-Royal T220 across doors of different thicknesses and preps?
That is what it is built for. One part number covers 1-3/8 to 1-3/4 inch doors, either a 2-3/8 or 2-3/4 backset, and a 1-1/8 or 2-1/4 inch wide edge prep using the packed filler. Keying stays flexible too, since it takes BEST, FALCON, ARROW or Schlage format cores. For a property manager that means one line item on the stockroom shelf instead of four.
18) Does the Cal-Royal T220 deadbolt have handing I need to specify?
No handing to call out. A deadbolt throws a straight bolt with no bevel and no latch, so the same T220 works on a left or right hand door swinging either way. What you do need to confirm before ordering is the backset you want it set to, the finish, and whether you are running the standard C keyway cylinder or coring it yourself.
19) I need a deadbolt on a classroom door that staff can lock from inside. Is the Cal-Royal T220 the right one?
Not quite. The T220 is keyed outside with a plain thumbturn inside, which locks and unlocks but is not the classroom function most school specs call for. For classroom deadbolt function look at the Falcon D211 in Grade 2, or the Falcon D111 and Hager 3118 in Grade 1, all cylinder x thumbturn classroom deadlocks. Use the T220 on offices, storage, back doors and tenant entries where plain keyed-outside operation is what you want.
20) The Cal-Royal T220 bores into the door face - what secures a door that cannot take a cross bore?
The T220 needs a 1 inch bore for the latch and a 1-1/2 inch or 2-1/8 inch bore for the lock housing. On a door that cannot be bored through, the Codelocks CL200 is a surface deadbolt, the Detex DX Series mounts hinge side locking dead bolts with multi-point security, and the Emtek 2050 and 2051 are European mortise deadbolts with an integrated roller latch in square and round trim, which take a mortise pocket in the edge rather than a face bore.
21) Is the Arrow 460 an alternative to the Cal-Royal T220 deadbolt?
No. The Arrow 460 is a mortise lock strike with latchbolt and deadbolt cutouts and a straight lip - it is frame hardware that the bolt throws into, not a lock. The T220 is the deadbolt itself and ships with a 1-1/8 inch x 2-3/4 inch square corner strike. Likewise the BEST 8T is a T Series tubular deadbolt tube component and the Baldwin 8BR0618001 is a deadbolt spacer, both parts rather than complete deadbolts. For a working substitute deadbolt look to the Arrow DBX61 or Dexter DB2000-SCT, both Grade 2 cylinder x thumbturn.
22) What is a lighter-duty deadbolt than the Cal-Royal T220 for a low-traffic door?
The T220 is a Grade 2 commercial deadbolt. On an interior or low-use door where Grade 2 is more than the opening needs, the Callan 200S is a Grade 3 single cylinder square trim deadbolt with cylinder x thumbturn operation, and the Callan 210S is Grade 3 double cylinder. Both keep the deadbolt function at a lower grade than the T220.
23) What should be used instead of the Cal-Royal T220 when the deadbolt needs to be operated by a code or credential?
The T220 is a mechanical deadbolt keyed on the outside with a thumbturn inside. Where no key should be carried, the Codelocks CL200 is a surface deadbolt with key override, the Codelocks CL2200 is an electronic surface deadbolt in brushed steel rated medium duty, and the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote. For an access-controlled opening released by the system rather than by hand, the DynaLock 1300 Series is a heavy duty mortise electric deadbolt.
24) Is the Falcon D211 the same thing as the Cal-Royal T220?
Both are Grade 2 deadbolts with cylinder x thumbturn operation, but the Falcon D211 is a classroom function deadbolt in the D200 Series, rated medium duty. The T220 is a plain single cylinder deadbolt, cylinder outside and thumbturn inside, with an adjustable 2-3/8 or 2-3/4 inch backset. If the door schedule calls out classroom function, the D211 or the Grade 1 Falcon D111 answers it; if it calls out a straight single cylinder deadbolt, the T220 does.
25) What is an alternative to the Cal-Royal T220 for a residential-look door where the trim shape matters?
The T220 comes in wrought brass or stainless steel trim across oil rubbed bronze, bright chrome, satin chrome, bright brass, and antique brass finishes. Where a specific trim shape is wanted, the Bravura 310RC Elite is a Grade 2 contemporary round deadbolt and the 310SC Elite is the contemporary square version, both cylinder x thumbturn, with the 310B Elite in a traditional round shape. The Bravura BV910005 is a Grade 2 single cylinder deadbolt with rectangle trim. All four keep the Grade 2 rating and the key-outside, turn-inside function of the T220.
26) What deadbolt goes with a Cal-Royal T220 opening that also needs a latch in the same door?
The T220 is a deadbolt only - it throws a dead locking bolt and does nothing to latch the door closed. Where one lock must do both, the Falcon H2101 is a Grade 2 entrance interconnected lock with a single cylinder deadbolt in the H2 Series, combining the deadbolt and the latching lever in one prep. The Arrow 460 mortise strike is prepped for latchbolt and deadbolt functions where the frame side needs to receive both.
