Cal-Royal SC8010 Grade 1 Passa...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$9,436.74

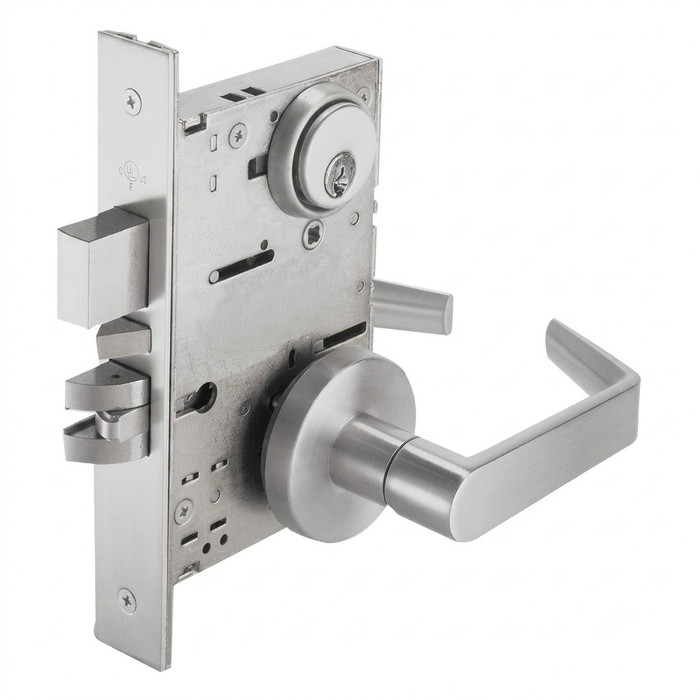

Cal-Royal Cal-Royal SC8010 Grade 1, Passage Mortise Lockset, SS Lever, Satin Chrome SC8010-26D

Cal-Royal SC8010 Grade 1 Passage Mortise Lockset with Field Reversible Handing (Pack of 6)

(No reviews yet) Write a Review

Model: SC8010 SS US26D
Selected Finish is
Selected Sectional / Wide Escutcheon Trims is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9,436.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal SC8010 Grade 1 Passage Mortise Lockset with Field Reversible Handing (Pack of 6)

The Cal-Royal SC8010 is a heavy-duty Grade 1 passage mortise lockset engineered for 1 ¾" (44.5mm) thick standard doors, featuring a 2 ¾" (70mm) backset and a 3 7/8" (98mm) center-to-center dimension from lever to cylinder. Built with a heavy-duty wrought steel lock case that is zinc dichromate plated, this lockset conforms to all dimensional and operational performances of ANSI A156.13, Grade 1, and exceeds 1,000,000 test cycles, making it a durable choice for high-traffic commercial applications. The design is fully field reversible, eliminating the need to specify handing when ordering.

Key Features

  • Door Thickness Compatibility: Designed for 1 ¾" (44.5mm) thick standard doors for consistent fit across commercial door applications.
  • Backset & Center-to-Center: 2 ¾" (70mm) backset with a 3 7/8" (98mm) center-to-center measurement from lever to cylinder for precise installation alignment.
  • Heavy-Duty Durability: Lock body conforms to ANSI A156.13 Grade 1 standards and exceeds 1,000,000 cycles for long-term reliability in high-traffic applications.
  • Heavy-Duty Construction: Wrought steel lock case with zinc dichromate plating provides exceptional durability for commercial use.
  • Armor Faceplate: Brass or stainless steel faceplate measuring 8" x 1 7/32" (203mm x 31.3mm) per ANSI Standard A115.1.
  • Deadbolt & Latch Bolt: 1" (25.4mm) throw hardened stainless steel deadbolt paired with a ¾" (19mm) throw one-piece stainless steel latch bolt with anti-friction reversible tongue.
  • Field Reversible Handing: Lock bodies are easily field reversible, eliminating the need to specify hand when ordering.
  • Free-Wheeling Clutch Lever: The outside lever rotates when locked, preventing excessive force on the horizontal lever and reducing the chance of breakage or damage.

Certifications & Compliance

  • Meets ANSI/BHMA A156.13 Series 1000, Operational & Security Grade 1 Standards
  • UL and cUL Listed to Canadian safety standard for A label (3-hour fire door); stamped letter F and UL symbol on armor faceplate
  • Meets positive pressure requirements UL 10C and UBC 7-2 (1997)
  • Meets ADA requirements, specifically designed for Barrier Free Application

Technical Specifications

  • Product Group: Mechanical Locks
  • Cylinder and Keyways: 6-pin solid brass "C" keyway standard, Interchangeable Core locks will accept compatible 6 or 7 Pin cores with BEST, FALCON and ARROW (SFIC)
  • Product Subgroup: Mortise Locks and Trim
  • Product Type: Mortise Locks
  • Subcategory: Mortise Lockset
  • Latch Throw: 3/4" (latch), 1" (deadbolt)
  • Commercial/Residential: Commercial
  • Keyed: No
  • Product Attribute: Mortise Locks
  • Electronic: No
  • Product Model: SC8010
  • (CTC) Center-to-Center: 3-7/8"
  • Door Hand Direction: Field Reversible
  • Door Thickness Range: 1-3/4"
  • Face Plate: Brass or stainless steel, 8" x 1-7/32"
  • Product Category: Mechanical Locks
  • Backset (Distance): 2-3/4"
  • Department: Door Hardware
  • Package Quantity: 6

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal SC8010?

Cal-Royal SC8010 mortise locksets deliver professional-grade reliability with heavy-duty wrought steel construction and a lock body rated to exceed 1,000,000 cycles under ANSI A156.13 Grade 1 standards. Engineered for demanding commercial applications where dependable passage function and long-term performance are essential.

Product Specs

Product Group:
Mechanical Locks
Cylinder and Keyways:
6-pin solid brass "C" keyway standard, Interchangeable Core locks will accept compatible 6 or 7 Pin cores with BEST, FALCON and ARROW (SFIC)
Grade:
Grade 1
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Subcategory:
Mortise Lockset
ANSI/BHMA:
ANSI Standard A115.1
Latch Throw:
3/4" (latch), 1" (deadbolt)
Commercial/Residential:
Commercial
Lock Type:
Mortise
Handle Type:
Lever
Keyed:
No
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
SC8010
(CTC) Center-to-Center:
3-7/8"
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Face Plate:
Brass or stainless steel, 8" x 1-7 /32"
Product Category:
Mechanical Locks
Product Substrate:
Steel
Backset (Distance):
2-3/4"
Department:
Door Hardware
Package Quantity:
6

Cal-Royal SC8010 SS US26D – Frequently Asked Questions

1) Will the Cal-Royal SC8010 mortise lockset fit a 1-3/4 inch commercial door?
That is exactly the door it is built for. The SC8010 mortise lockset is a single-thickness device rated for 1-3/4 inch doors, with a 2-3/4 inch backset and 3-7/8 inch center-to-center from lever to cylinder. If your leaf is thinner or thicker than 1-3/4, this is the wrong body for the opening. Hager's 3800 Series passage mortise locks cover 1-3/4 to 2-1/2 inch doors if you have thicker leaves in the same building.
2) Do I have to specify left or right hand when ordering the Cal-Royal SC8010?
No handing to specify. The SC8010 lock body is field reversible, so one part number covers both hands and the installer flips it on site. That matters if you are stocking spares for a portfolio of buildings, since a six-pack covers any door in the fleet regardless of swing. BEST's 45H heavy duty mortise bodies are also field reversible if you are matching an existing BEST standard.
3) Is the Cal-Royal SC8010 a keyed lock or does it just latch?
Passage function, non-keyed. The lever retracts the latch from either side at all times and there is no locking of the outside lever, so use it on corridors, hallways, closets and any door that only needs to stay closed and latched. If you need the door to lock, you want a storeroom, office, classroom or entry function body instead, such as the Accentra 8805FL storeroom mortise lock or the Hager 3850E office function.
4) Can I use the Cal-Royal SC8010 on a 3 hour fire rated door?
Yes. The SC8010 is UL and cUL Listed for A label 3-hour fire doors, with the F letter and UL symbol stamped on the armor faceplate, and it meets positive pressure requirements under UL 10C and UBC 7-2 (1997). That stamp is what an inspector looks for on the edge of the leaf, so keep the faceplate visible and unpainted over the marking.
5) Will the Cal-Royal SC8010 drop into my existing ANSI mortise pocket and strike?
It uses the standard commercial mortise prep: 2-3/4 inch backset, 3-7/8 inch lever-to-cylinder center-to-center, and an 8 x 1-7/32 inch armor faceplate in brass or stainless per ANSI A115.1. The latch bolt throws 3/4 inch and the deadbolt 1 inch. If the door was previously fitted with an A115.1 mortise lock of the same backset and CTC, the pocket and the faceplate cutout line up and the existing ANSI strike accepts the 3/4 inch latch. Different CTC on the old lock means new escutcheon or rose prep even though the pocket fits.
6) Is the Cal-Royal SC8010 tough enough for a school or hospital corridor?
It is built for that traffic. The lock body conforms to ANSI/BHMA A156.13 Series 1000 Operational and Security Grade 1 and exceeds 1,000,000 test cycles, on a wrought steel case with zinc dichromate plating. The outside lever is a free-wheeling clutch design, so when it is held rigid the lever spins rather than transferring force into the spindle, which is where abused corridor levers usually break. It also meets ADA requirements for barrier free application.
7) What else can I buy if I need a Grade 1 passage mortise lock but not the Cal-Royal?
Straight equivalents in passage function include the Falcon MA101 Grade 1 heavy duty mortise passage lock, which is also field reversible and fire rated, and the Schlage PM010 Grade 1 passage latch mortise lock for 1-3/4 inch doors. Hager's 3810E and 3810S are Grade 1 passage bodies with a 2-3/4 inch backset, the E with escutcheon trim and the S with rose, covering 1-3/4 to 2-1/2 inch doors. For behavioral health or detention openings where a standard lever is a ligature risk, TownSteel's MRX-L-01 and MRX-A-01 are Grade 1 heavy duty passage mortise locksets with anti-ligature lever and arch trim.
8) What is the closest cross-brand equivalent to the Cal-Royal SC8010 passage mortise lockset?
The Falcon MA101 is the nearest match. Both are Grade 1 mortise locks in passage function with field reversible operation, so neither requires handing to be specified at the time of order. The Falcon MA101 is listed as heavy duty with a fire rating, and its passage function is catalogued as Passage/Hall/Closet. The Cal-Royal SC8010 carries a 2-3/4 inch backset, fits 1-3/4 inch doors, and uses a lever handle.
9) If the door is not prepped for a mortise pocket, what passage lock should I use instead?
The Schlage PC10 is a Grade 1 passage cylindrical lock, non-keyed with a rose, for 1-3/4 inch doors. It is a bored-door prep rather than a mortise pocket. The Cal-Royal SC8010 is a mortise lock and needs the door mortised for the lock case and prepped for an 8 inch x 1-7/32 inch armor faceplate, so it is not a drop-in on a cylindrical-prepped door.
10) What is the equivalent passage mortise lockset for a behavioral health or detention opening?
The TownSteel MRX-L-01 is a Grade 1 heavy duty stainless steel anti-ligature lever mortise lockset in passage function for 1-3/4 inch doors, and the MRX-A-01 is the same passage function with ligature resistant arch trim. The Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset, ligature resistant and ADA compliant in satin stainless steel. The Cal-Royal SC8010 is a Grade 1 passage mortise lockset with a conventional lever and is built to ADA barrier free requirements, but it is not an anti-ligature design.
11) Why does a passage lockset have a deadbolt in the body?
The SC8010 body is a full Grade 1 mortise case built across a function family, so it carries a 1 inch throw hardened stainless deadbolt alongside the 3/4 inch stainless latch bolt with anti-friction reversible tongue. On passage function the lever always retracts the latch and nothing keys or locks from outside. The practical value is that the case, faceplate and pocket are identical to the keyed functions in the same family, so a building can be prepped once and the function changed later without re-machining the door.
12) What do I have to pick when I order the Cal-Royal SC8010 mortise lockset?
Two choices, and no handing. Pick a finish from US3 Polished Brass, US4 Satin Brass, US10B Antique Bronze Oiled, US26D Satin Chrome or US32D Satin Stainless Steel, then pick a trim designation from the sectional and wide escutcheon range: AE, AS, GE, GS, HE, HS, JE, JS, SE, SS, TE, TS, WE and WS. The E and S pairing runs through the list, escutcheon versus sectional, so the letter picks the lever style and the second character picks the trim plate. It ships six locksets to a pack.
13) Should I use a mortise passage lock or a cylindrical passage lock on a commercial corridor door?
A mortise body like the SC8010 goes into a machined pocket in the door edge and carries a heavier case with a 3/4 inch latch, which is why it holds up on high-cycle openings and why it is the standard on institutional corridors. A cylindrical passage lock installs through two bores and is far quicker to retrofit into a door that is already bored, but you cannot swap one for the other without new door prep. If your doors are bored rather than mortised, the Schlage PC10 Grade 1 passage cylindrical lock is the equivalent function in that prep.
14) Can I put the Cal-Royal SC8010 on my building's BEST small format interchangeable core key system?
Not this one. The SC8010 is passage function and non-keyed, so there is no cylinder in it to core. Within the SC8010 family the cylinder standard is a 6-pin solid brass C keyway, and the interchangeable core versions accept compatible 6 or 7 pin SFIC cores from BEST, FALCON and ARROW. So you can standardize a building on one prep and one keyway, keying the entry and storeroom doors while the corridor and closet doors run this passage body uncored.
15) What is the simpler option if I only need a passage latch and not a full mortise lock body with deadbolt?
The Schlage PM010 is a Grade 1 passage latch mortise lock, non-keyed, for 1-3/4 inch doors. If the opening never needs to be secured, that latch-only body covers it. The Cal-Royal SC8010 is a full mortise lock case carrying both a 3/4 inch throw latch and a 1 inch throw deadbolt, so it brings the deadbolt whether or not the opening uses it.
16) What do I use instead if the opening needs credential or keypad access rather than free passage?
For electronic access on a mortise prep, the TownSteel FME-2000 is a Grade 1 heavy duty classroom mortise lockset with RFID for 1-3/4 inch doors, the Schlage CO-100 is a Grade 1 heavy duty standalone electronic mortise lock with a keypad reader for 1-3/4 inch doors, and the Alarm Lock DL3500CR is a Grade 1 Trilogy electronic mortise lock with 300 user codes in classroom function. The Cal-Royal SC8010 is a mechanical, non-electronic lockset, so it has no credential management of any kind.
17) Is the Schlage L0170 dummy trim a substitute for a Cal-Royal SC8010?
No. The Schlage L0170 is half dummy trim, a Grade 1 non-keyed lever with dummy function for 1-3/4 inch doors, and it has no working latch. The Emtek 3019 Brisbane, 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are likewise dummy function. The Cal-Royal SC8010 is a working passage lockset with a 3/4 inch throw stainless steel latch bolt. Dummy trim is a pull on an inactive leaf, not a latching device.
18) Can I order just the mortise lock body and reuse the existing trim?
The BEST 45HCA public entrance lock body and the 45HCA intruder function lock body are heavy duty mortise lock bodies, the public entrance version field reversible. The Cal-Royal SC8010 is supplied as a complete lockset with lever trim, offered in sectional and wide escutcheon trim styles including AE, AS, GE, GS, HE, HS, JE, JS, SE, SS, TE, TS, WE and WS, so the trim comes with it rather than being reused.
19) Which Grade 1 mortise passage lock takes a small format interchangeable core if I later want to key the opening?
The Cal-Royal SC8010 ships with a 6-pin solid brass C keyway as standard, and interchangeable core versions accept compatible 6 or 7 pin cores from BEST, FALCON and ARROW. Among the mortise peers, the Accentra 8805FL is a Grade 1 storeroom lock in the 8800 Series and the Corbin Russwin ML2003 is a Grade 1 classroom lockset in the ML2000 Series if the opening needs to be keyed from the outset rather than converted later.
20) What is the difference between the Cal-Royal SC8010 and the Hager 3850E office mortise lock?
The Hager 3850E is a Grade 1 office function mortise lock with lever and escutcheon, non-keyed, with a 2-3/4 inch backset and a 1-3/4 inch to 2-1/2 inch door thickness range. Office function lets the inside control whether the outside lever is locked. The Cal-Royal SC8010 is passage function, so the lever always operates from both sides, and it fits 1-3/4 inch doors on the same 2-3/4 inch backset.
21) Does the Cal-Royal SC8010 need power or wiring at the door?
No wiring at all. It is a purely mechanical passage lockset, so there is no transfer hinge, no power supply and no door loop to plan for. If the opening actually needs access control, that is a different body: the BEST 45HW wired electromechanical mortise lock runs on 12V or 24V, and Command Access ML190 is a motorized mortise lock with field selectable fail safe or fail secure operation on 24VDC.
22) Will the Cal-Royal SC8010 finish match the other lever hardware in my building?
Five finishes are offered: US3 Polished Brass, US4 Satin Brass, US10B Antique Bronze Oiled, US26D Satin Chrome and US32D Satin Stainless Steel. Most commercial buildings run US26D satin chrome or US32D satin stainless on corridor hardware, and those are the two that will sit alongside existing closers, exit devices and hinges without standing out. The armor faceplate on the door edge is brass or stainless.
23) Is a mortise deadbolt like the Sargent 4874 an alternative to the SC8010?
They solve different problems. The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset in the 4870 Series, and the Kaba Ilco 185 Series is a no-handing mortise lock in deadbolt function. Neither retracts a latch with a lever. The Cal-Royal SC8010 is a passage lockset whose lever operates a 3/4 inch throw latch bolt, with a 1 inch throw deadbolt in the same case, so it handles both latching and bolting on one prep.
