Cal-Royal SDL16 Pocket Door Pr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$19.00

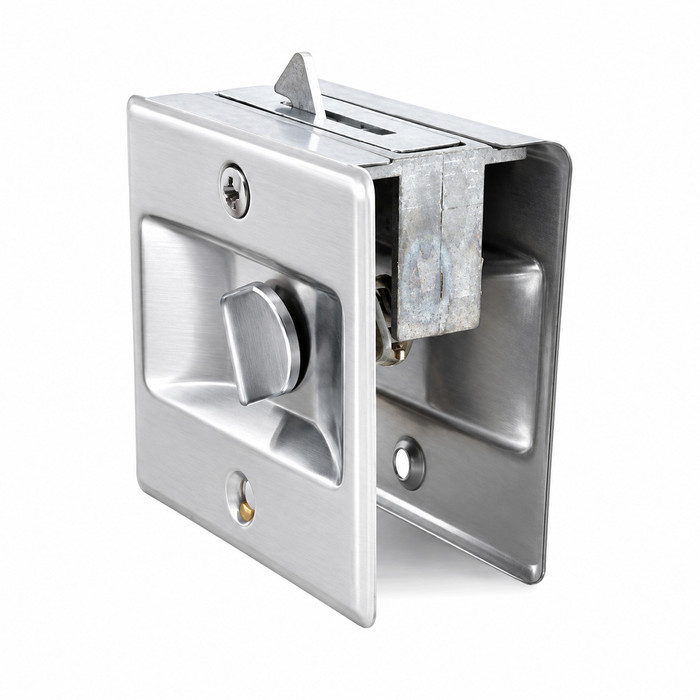

Cal-Royal Cal-Royal SDL16 Pocket Door Lock, Privacy Function SDL16

Cal-Royal SDL16 Pocket Door Privacy Lock with Decorative Coined Edges

(No reviews yet) Write a Review

Model: SDL16
$19.00
Selected Finish is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$19.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal SDL16 Pocket Door Privacy Lock with Decorative Coined Edges

The Cal-Royal SDL16 is a privacy-function sliding door lock and pull designed specifically for passageway (pocket) doors. Comparable to Quality No. 101, this lock features decorative coined edges and a reversible, non-handed design that simplifies installation and stocking. It is engineered for doors ranging from 1-3/8" to 1-3/4" thick, with a standard door prep of 2-1/4" (L) x 1-3/4" (W), making it a reliable choice for commercial interior door applications.

Key Features

  • Door Prep Dimensions: Standard prep of 2-1/4" (L) x 1-3/4" (W) for straightforward, consistent installation.
  • Door Thickness Compatibility: Designed for use on doors 1-3/8" to 1-3/4" thick; use SDLPIN accessory for 1-3/4" doors.
  • Reversible Non-Handed Design: Fully reversible construction allows use on either left- or right-configured pocket doors, reducing inventory complexity.
  • Decorative Coined Edges: Coined edge detailing provides a refined, finished appearance suitable for commercial interior settings.
  • Comparable to Quality No. 101: Matches the specifications of the widely recognized Quality No. 101 pocket door lock, offering a familiar and dependable replacement or upgrade option.
  • Easy Installation: Designed for easy installation onto pocket-type interior doors with just a simple cut in the door edge, minimizing labor and installation time.
  • Compatible Accessories: Optional SDLPIN component available for use with 1-3/4" thick doors for a proper, secure fit.

Technical Specifications

  • Product Group: Sliding Door and Barn Door Hardware
  • Series: SDL Series
  • Features: Decorative Coined Edges; Reversible (Non-Handed); Comparable to Quality No. 101; Easy Installation onto Pocket-Type Interior Doors with Just a Simple Cut in Door Edge
  • Application: For Passageway (Pocket) Doors; 1-3/8" to 1-3/4" Thick Doors
  • Product Subgroup: Pocket Door Hardware
  • Product Type: Pocket Door Locks
  • Subcategory: Pocket Door Hardware
  • Commercial/Residential: Commercial
  • Product Model: SDL16
  • Door Thickness Range: 1-3/8" - 1-3/4"
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Interior Passageway and Pocket Door Installations

Why Cal-Royal SDL16?

Cal-Royal pocket door hardware delivers dependable privacy function with decorative coined edge detailing and a reversible, non-handed design that streamlines installation and reduces stocking complexity. Built as a comparable match to the widely trusted Quality No. 101, the SDL16 provides commercial facilities with a proven, easy-to-install solution for passageway doors that demands minimal door preparation while maintaining a polished, professional appearance.

Product Specs

Product Group:
Sliding Door and Barn Door Hardware
Series:
SDL Series
Features:
Decorative Coined Edges; Reversible (Non-Handed); Comparable to Quality No. 101; Easy Installation onto Pocket-Type Interior Doors with Just a Simple Cut in Door Edge
Application:
For Passageway (Pocket) Doors; 1-3/8" to 1-3/4" Thick Doors
Product Subgroup:
Pocket Door Hardware
Product Type:
Pocket Door Locks
Subcategory:
Pocket Door Hardware
Commercial/Residential:
Commercial
Lock Function:
Privacy
Product Model:
SDL16
Product Function:
Privacy
Door Thickness Range:
1-3/8" - 1-3/4"
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Cal-Royal SDL16 – Frequently Asked Questions

1) Does the SDL16 pocket door lock have to be handed left or right?
No handing to specify. The SDL16 is fully reversible and non-handed, so the same part works on a pocket door that slides either direction. For a property manager stocking spares across a building, that means one part number covers every passageway opening instead of a left and a right.
2) Does a pocket door privacy lock actually lock, or is it just a thumbturn for bathrooms?
Privacy function. The SDL16 locks from inside the room only, which is what you want on a restroom, exam room, or dressing room. There is no key and no cylinder, so it is not a security lock. If you need a keyed pocket door lock for an office or storage room, look at an entrance-function unit such as the Delaney Contemporary Square entrance pocket door lock instead.
3) What is the closest equivalent to a Cal-Royal SDL16 privacy pocket door lock from another manufacturer?
The Cal-Royal SDL16 is a privacy-function pocket door lock and pull for passageway doors. The closest same-function alternatives are the Weslock 0677 Round Privacy Pocket Door lock and the Trimco 1065 Pocket Door Pull with privacy locking function, both of which carry a privacy/bed/bath function like the SDL16. The Delaney Traditional Square Privacy Pocket Door Lock is a third privacy-function pocket door option. The visual detailing differs: the SDL16 uses decorative coined edges, the Weslock 0677 is a round design, and the Delaney 2701 is a square Traditional Square series trim, so match the shape to the rest of the door hardware in the space.
4) Can I use a Cal-Royal SDL16 on a pocket door that needs to be keyed or locked from the outside?
No. The Cal-Royal SDL16 is a privacy-function pocket door lock, which secures from the inside of the room only and is not intended as a keyed opening. For a pocket door at a unit entrance or any opening that has to lock from the corridor side, the Delaney Contemporary Square Entrance Pocket Door Lock is the entrance-function option in the pocket door family. Do not treat the SDL16 and an entrance-function pocket door lock as interchangeable trim - the function is different even though both mount in a pocket door edge.
5) Is the Cal-Royal SDL16 rated for commercial use or is it residential hardware?
Cal-Royal specifies the SDL16 as commercial. It is aimed at interior passageway openings in office buildings, schools, healthcare facilities, retail, multi-tenant residential, and government buildings.
6) Do I need to order anything besides the SDL16 lock itself to finish the job?
On a 1-3/8 inch door, nothing, the lock and pull come as the unit and it drops into a 2-1/4 x 1-3/4 inch edge cut. On a 1-3/4 inch door, add the SDLPIN component. Beyond that you pick backset and finish at the time of order, and those are both required selections.
7) Is the Orca AH Series privacy latch a substitute for a Cal-Royal SDL16 pocket door lock?
Not directly. The Orca Hardware AH Series Privacy Latch is a privacy/bed/bath latch for sliding doors, while the Cal-Royal SDL16 is a combined privacy lock and pull sized for passageway (pocket) doors with a 2-1/4 inch by 1-3/4 inch door edge prep. They share the privacy function, but the SDL16 replaces a pocket door lock and pull in one flush unit; the AH Series latch is the answer when the opening is a surface-running sliding or barn door rather than a door that pockets into the wall.
8) What replaces a Quality No. 101 pocket door lock?
The Cal-Royal SDL16 is built as a comparable match to the Quality No. 101 pocket door lock and carries the same privacy function for 1-3/8 inch to 1-3/4 inch doors, so it drops into the same opening as a replacement. If the existing slab is thicker than 1-3/4 inch, the Weslock 0677 Round Privacy Pocket Door lock covers 1-3/8 inch to 2 inch instead.
9) Which pocket door lock should I use if the opening does not need to lock at all?
The Cal-Royal SDL16 is a privacy-function lock, meant for bathrooms, bedrooms and other openings that need to be secured from the inside. For a closet, pantry or hallway pocket door that only needs a pull and latch, the Delaney Contemporary Round Passage Pocket Door Lock is the passage-function alternative. Specifying passage where privacy is not required also removes the emergency-release detail from the punch list.
10) What is a lower-profile alternative to the Cal-Royal SDL16 for a small pocket door edge?
The Trimco 1065 Pocket Door Pull with privacy locking function measures 2-1/2 inches by 2-3/4 inches and gives the same privacy locking function in a pull-style trim. The Cal-Royal SDL16 preps at 2-1/4 inches long by 1-3/4 inches wide in the door edge. Compare both against the existing mortise in the slab before ordering, since a retrofit into an existing pocket door has to land on the cutout already there.
11) I am standardizing pocket door privacy hardware across a building - does the Cal-Royal SDL16 handle both door handings?
Yes. The Cal-Royal SDL16 is fully reversible and non-handed, so one part number covers both left- and right-configured pocket doors and there is no need to stock a handed pair. Among the privacy-function alternatives, the Weslock 0677 and the Delaney Traditional Square 2701 are separate designs with their own trim shapes, so a mixed order will not read as one system across a floor. Standardizing on the SDL16 also lets a facility carry a single finish across the openings, with oil-rubbed bronze, satin nickel, satin nickel blackened, black, polished chrome, satin chrome, bright brass and antique brass all offered.
