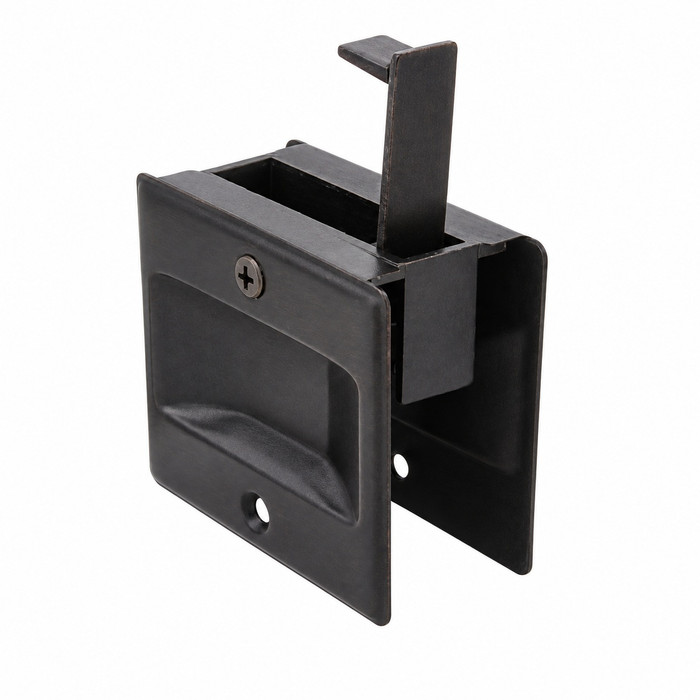

Cal-Royal SDL17 Pocket Door Lock, Passage Function with Decorative Coined Edges
The Cal-Royal SDL17 is a passage function sliding door lock and pull designed specifically for pocket-type interior doors. Comparable to Quality No. 101, this SDL Series lock installs with a standard door prep of 2-1/4" (L) x 1-3/4" (W) and is suited for doors ranging from 1-3/8" to 1-3/4" thick. Featuring decorative coined edges and a reversible, non-handed design, the SDL17 delivers a clean, professional finish for passageway pocket door applications in commercial settings.
Key Features
- Standard Door Prep: 2-1/4" (L) x 1-3/4" (W) cutout for straightforward installation onto pocket-type interior doors.
- Door Thickness Compatibility: Designed for doors 1-3/8" to 1-3/4" thick, covering the most common interior pocket door dimensions.
- Reversible Non-Handed Design: Functions on either left- or right-hand pocket doors without additional parts or reconfiguration.
- Decorative Coined Edges: Provides a refined, finished appearance suitable for visible passageway hardware.
- Easy Installation: Installs onto pocket-type interior doors with just a simple cut in the door edge, minimizing labor and installation time.
- Passage Function: Operates as a non-locking sliding door lock and pull, ideal for passageway applications where privacy locking is not required.
- Compatible Accessories: Use SDLPIN for 1-3/4" doors to ensure proper fit and function on thicker door applications.
- Comparable Cross-Reference: Comparable to Quality No. 101, making it a suitable replacement or upgrade option for existing installations.
Technical Specifications
- Product Group: Sliding Door and Barn Door Hardware
- Series: SDL Series
- Features: Decorative Coined Edges; Reversible (Non-Handed); Comparable to Quality No. 101; Easy Installation onto Pocket-Type Interior Doors with Just a Simple Cut in Door Edge
- Application: For Passageway (Pocket) Doors; 1-3/8" to 1-3/4" Thick Doors
- Product Subgroup: Pocket Door Hardware
- Product Type: Pocket Door Locks
- Subcategory: Pocket Door Hardware
- Commercial/Residential: Commercial
- Product Model: SDL17
- Door Thickness Range: 1-3/8" - 1-3/4"
- Product Category: Door Trim and Accessories
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
Why Cal-Royal SDL17?
Cal-Royal SDL17 pocket door hardware delivers a reversible, non-handed design with decorative coined edges for a polished, professional look on passageway pocket doors. Built to a precise door prep and compatible with a range of standard door thicknesses, this lock offers dependable, straightforward performance for commercial interior applications.
Manufacturer Resources
Cal-Royal Product Catalog
Product Specs
- Product Group:
- Sliding Door and Barn Door Hardware
- Series:
- SDL Series
- Features:
- Decorative Coined Edges; Reversible (Non-Handed); Comparable to Quality No. 101; Easy Installation onto Pocket-Type Interior Doors with Just a Simple Cut in Door Edge
- Application:
- For Passageway (Pocket) Doors; 1-3/8" to 1-3/4" Thick Doors
- Product Subgroup:
- Pocket Door Hardware
- Product Type:
- Pocket Door Locks
- Subcategory:
- Pocket Door Hardware
- Commercial/Residential:
- Commercial
- Lock Function:
- Passage
- Product Model:
- SDL17
- Product Function:
- Passage
- Door Thickness Range:
- 1-3/8" - 1-3/4"
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Cal-Royal SDL17 – Frequently Asked Questions
1) What size cutout do I need in the door edge for a Cal-Royal SDL17 pocket door lock?
The SDL17 goes into a standard pocket door prep of 2-1/4 inches (L) by 1-3/4 inches (W) cut into the door edge. That is the whole install on a pocket-type interior door, one simple edge cut and the lock drops in. If you are replacing an existing pocket door pull, measure the existing cutout first: anything smaller than 2-1/4 x 1-3/4 has to be enlarged, and anything larger will leave a gap the coined edge trim will not cover.
2) Do I need to order anything extra with the SDL17 for a 1-3/4 inch door?
Yes. On 1-3/4 inch doors the SDLPIN is called for so the lock fits and functions properly on the thicker leaf. On 1-3/8 inch doors you do not need it. If you are buying for a building with mixed door thicknesses, count your 1-3/4 inch openings and add that many SDLPINs to the order rather than sorting it out on site.
3) Does the Cal-Royal SDL17 pocket door lock have to be ordered left or right hand?
No handing to specify. The SDL17 is reversible and non-handed, so the same part works on a left- or right-hand pocket door with no extra pieces and nothing to reconfigure in the field. For a property manager stocking spares across a building, that means one part number covers every pocket door opening regardless of which way it slides.
4) Does the SDL17 pocket door lock actually lock, or is it just a pull?
Passage only. The SDL17 is a non-locking sliding door lock and pull, so it operates the door and gives you a finger pull but there is no privacy turn or thumbturn. That makes it wrong for a restroom, a bedroom, or any opening that needs to be secured from the inside. If you need privacy locking on a pocket or sliding door, look at the Trimco 1065 pocket door pull with privacy locking function, the Weslock 0677 round privacy pocket door lock, the Delaney Traditional Square privacy pocket door lock, or the Orca Hardware AH Series privacy latch for sliding doors.
5) I have a 2 inch thick pocket door. Will the Cal-Royal SDL17 fit it?
No. The SDL17 tops out at 1-3/4 inches, so a 2 inch leaf is outside its range. For a door that thick, the Weslock 0677 round privacy pocket door lock covers 1-3/8 inch to 2 inch doors, though note that one is a privacy function rather than passage.
6) What is a passage-function alternative to the Cal-Royal SDL17 pocket door lock?
The Delaney DLY-442224 Contemporary Round Passage Pocket Door Lock is the closest like-for-like: both are passage-function pocket door locks, meaning a pull with no locking mechanism. The difference is the face styling. The Cal-Royal SDL17 uses decorative coined edges on a rectangular plate, while the Delaney unit is from the Contemporary Round series. For a property manager matching hardware already hung on other pocket doors in the building, that face shape is what a tenant sees, so pick the one that matches the existing openings.
7) The pocket door measures thicker than 1-3/4 inches. What pocket door lock fits instead of the Cal-Royal SDL17?
The Cal-Royal SDL17 is built for doors 1-3/8 inch to 1-3/4 inch thick, so a slab measuring above that range is outside what it is designed for. The Weslock 0677 Round Privacy Pocket Door lock carries a door thickness range of 1-3/8 inch to 2 inch and covers the thicker slab. Note the function changes with it: the Weslock 0677 is privacy function rather than passage, so the opening gains an interior lock. Measure the slab at the edge before ordering, since pocket door prep depth is unforgiving.
8) What is the difference between a passage pocket door pull and a privacy one, and which do I need?
A passage unit like the Cal-Royal SDL17 is a pull with an operating mechanism and no locking, so the door just opens and closes. A privacy unit adds a latch you can throw from inside the room. Use passage on closets, connecting doors, offices, and any opening where nobody needs to secure themselves in. Use privacy on restrooms, bedrooms, and exam or changing rooms. If privacy is what you need, the Delaney Contemporary Round passage pocket door lock is the passage counterpart in that family, while the Delaney Traditional Square and the Weslock 0677 are privacy function. There is also an entrance-function option, the Delaney Contemporary Square entrance pocket door lock, if the opening needs to be secured from outside the room.
9) Can the Cal-Royal SDL17 be used on a barn door or a bypass slider?
The SDL17 is made for pocket-type interior doors, where the leaf slides into a wall cavity and the hardware has to sit flush in the door edge and face. It installs into a cut in the door edge, which is the pocket door detail specifically. A surface-mounted barn door slab is a different install. For sliding doors that are not pockets, the Orca Hardware AH Series latch is built for sliding door applications, though it is a privacy latch rather than a passage pull.
10) Is the Orca AH Series privacy latch a substitute for the Cal-Royal SDL17?
No, and it is an easy one to mistake. Both are sliding door hardware, but the Orca AH-PRIVLATCH is a privacy latch for sliding doors, a Privacy/Bed/Bath function device, while the Cal-Royal SDL17 is a passage sliding door lock and pull with no locking function. Swapping one for the other changes how the opening behaves for the occupant. If the specification on the drawing calls for passage on a pocket door, the SDL17 or the Delaney DLY-442224 passage unit is the match, not the Orca latch.
11) What is the difference between the Cal-Royal SDL17 and the Delaney DLY-37000 pocket door lock?
Function is the whole difference. The Cal-Royal SDL17 is a passage unit for passageway pocket doors where no locking is required, and it is reversible and non-handed so it serves a left- or right-hand pocket door without extra parts. The Delaney DLY-37000 is a Contemporary Square entrance pocket door lock, an entrance-function device for an opening that must be secured. A locksmith specifying a closet, pantry, or corridor pocket door takes the passage unit; an opening that gets locked from outside takes the entrance unit.
12) What finishes does the Cal-Royal SDL17 pocket door lock come in?
Eight finishes: oil-rubbed bronze, satin nickel, satin nickel blackened, black, polished chrome, satin chrome, bright brass, and antique brass. All eight are the standard core version. That range covers matching to most existing lever and pull finishes in a building, which is usually the deciding factor when you are adding pocket door hardware to an opening in an already-finished space.
13) Is the Cal-Royal SDL17 suitable for a commercial building or is it residential hardware?
Commercial. The SDL17 is built for passageway pocket doors in commercial interiors, and it is used in office buildings, schools, healthcare facilities, retail spaces, multi-tenant residential, and government buildings. Because it is non-handed and takes one fixed prep, it standardizes well across a facility where you have pocket doors in offices, closets, and connecting rooms.
14) Which pocket door hardware standardizes best across a mixed facility that has both passage and privacy openings?
Pair the Cal-Royal SDL17 with a privacy unit of matching face style rather than mixing shapes across the facility. The SDL17 carries decorative coined edges on a rectangular plate and is a commercial-rated passage unit. For the privacy openings, the Trimco 1065 is a rectangular privacy locking pocket door pull at 2-1/2 inch by 2-3/4 inch, while the Delaney DLY-2701 Traditional Square and DLY-442224 Contemporary Round give square and round faces respectively. An MRO buyer standardizing a building picks one face geometry and holds it across both functions.
