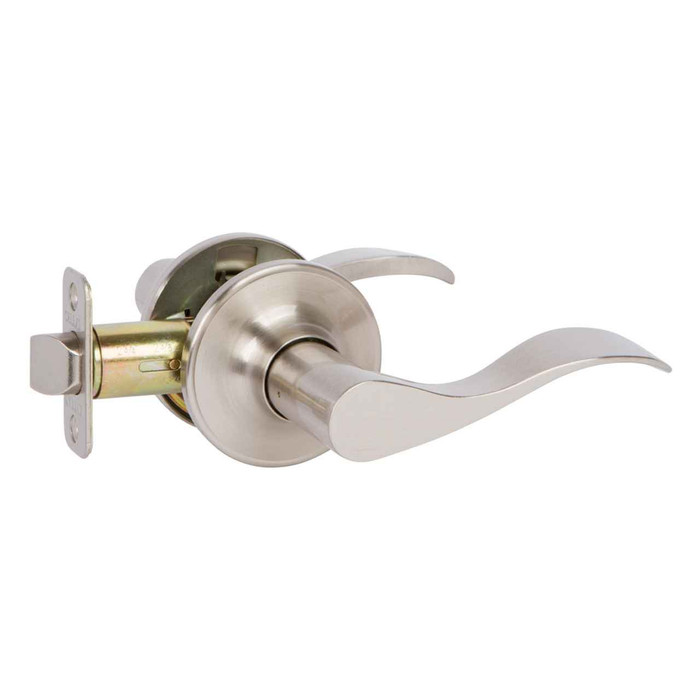

Callan Bennett Grade 3 Passage Leverset
Passage Function: Passage lever sets have no locking function and are free turning on both sides. These are perfect for a hallway or closet where no locking is necessary.
Features:
- Meets BHMA security grade 3 requirements
- Made of durable zinc
- Fully reversible handing for left or right handed applications
- Designed for an easy one person installation
- Comes standard with a round corner latch faceplate and 1/2" throw
- Includes a limited lifetime warranty on mechanical parts and a five year warranty on finish
- Meets the requirements for the American's with Disabilities Act (ADA) requirements
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Reversible Left or Right
- Lever Length: 4-1/8"
- Projection: 1-15/16"
- Latch Faceplate: Round Corner
- Concealed Screws: No
- Material: Zinc
Manufacturer Resources
Product Specs
- Subcategory:
- Leversets
- Series:
- Bennett
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lock Function:
- Passage
- Product Type:
- Leversets
- Grade:
- Grade 3
- Product Attribute:
- Cylindrical Locks
- Product Function:
- Passage/Hall/Closet
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Callan BN5011R – Frequently Asked Questions
1) Will the Callan Bennett passage leverset fit a standard 2-1/8 inch bored door prep?
It drops into the standard residential prep: 2-1/8 inch cross bore, 1 inch edge bore, and an adjustable latch that sets to either 2-3/8 or 2-3/4 inch backset. Those are the two backsets nearly every pre-bored door is drilled to, so if the door already had a knob or lever in it, the Bennett goes back in the same holes. Door thickness range is 1-3/8 to 1-3/4 inches, which covers standard interior doors and 1-3/4 inch commercial-thickness slabs.
2) Do I have to order a left hand or right hand version of the Bennett leverset?
No handing to specify. The Bennett passage lever is fully reversible and works on a left or right hand door out of the same box, so you can buy one part number for a whole building and sort the swing at the door. Installation is a one person job.
3) Will the Callan Bennett latch work with the strike plate that's already in my door frame?
The latch has a 1/2 inch throw with a round corner faceplate, which is the common residential combination. If the existing strike is a round corner or a standard T-strike set for a 1/2 inch throw latch, the bolt will land in it. Where the old latch was a square corner faceplate, the mortise in the door edge will not match the round corner plate and you'll need to file the corners or swap the prep. Adjust the latch to whichever backset the door is bored for, 2-3/8 or 2-3/4 inches, before checking strike alignment.
4) Is a Grade 3 lever like the Callan Bennett good enough for an apartment building or office corridor?
Grade 3 is the residential duty level, and the Bennett is built as a residential leverset in zinc. It suits apartment interiors, closets, and hall doors in a rental unit. For a corridor, a school, or anywhere in a commercial building taking constant traffic, step up: the Falcon B101 is a Grade 2 medium duty passage lever, and the Falcon K101 is Grade 1 heavy duty, fire rated, covering 1-3/8 to 2 inch doors. The Corbin Russwin CL3110 is a Grade 1 vandal resistant passage lever for 1-3/4 to 2 inch doors.
5) Will the Callan Bennett fit a 2 inch thick door?
No. The Bennett tops out at 1-3/4 inches, covering 1-3/8 to 1-3/4 inch doors. For a 2 inch slab you need a lock rated to that thickness: the Hager 2510 passage lever goes to 2 inches, the Falcon K101 covers 1-3/8 to 2-1/4 inches, and the Corbin Russwin CL3110 is built for 1-3/4 to 2 inch doors.
6) I need the same lever on a bedroom or bathroom door - what takes the place of a passage set there?
A passage set like the Callan Bennett has no locking function at all, so it will not serve a bath or bedroom. For a privacy function in the same Grade 3 residential class, the Kwikset 300BRNL RDT Breton is a Grade 3 privacy lever set for 1-3/8 inch to 1-3/4 inch doors, the same thickness range the Bennett covers. In commercial weight, the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors.
7) What is the closest passage leverset to the Callan Bennett if I want a Grade 2 instead of Grade 3?
The Callan Bennett passage leverset is a Grade 3 cylindrical leverset with passage function, free turning on both sides with no locking. If you want the same passage function at Grade 2, the Hager 2510 is a Grade 2 passage cylindrical lever lock with the Withnell design and a 1-3/8 inch to 2 inch door thickness range, and the Falcon B101 is a Grade 2 cylindrical passage lever lock with a non-handed design at medium duty. The Bennett fits doors 1-3/8 inch to 1-3/4 inch, so on a 2 inch door the Hager 2510 covers the thickness the Bennett does not.
8) What is the equivalent of the Callan Bennett passage leverset from Kwikset?
The Kwikset 200BRNL RDT Breton passage lever set is a Grade 3 passage/hall/closet lever for doors 1-3/8 inch to 1-3/4 inch - the same grade, function, and door thickness range as the Callan Bennett passage leverset. The Kwikset 200DL Delta is also a passage lever for interior hall and closet doors, Grade 3, reversible, and supplied with an adjustable 6AL latch and RCS strike. The Bennett is reversible for left or right hand openings and comes with a round corner latch faceplate and 1/2 inch throw.
9) Which of these lever sets looks like a passage lever but will not work as one?
Dummy trim is the usual mix-up. The Accentra 455LN Augusta and the BEST 9K Series 1DT are both single dummy trim - they are fixed pulls with no latch at all, so they cannot latch a hall or closet door the way the Callan Bennett passage leverset does with its round corner latch and 1/2 inch throw. The Baldwin Estate 5103 comes as a passage lever with the 5048 rose and separately as left hand and right hand half dummy levers, so the model number alone does not tell you which one you are ordering. The Callan Bennett is a passage function set, free turning on both sides.
10) Is there a passage lever that fits a door thicker than 1-3/4 inch?
The Callan Bennett covers 1-3/8 inch to 1-3/4 inch doors. For thicker slabs in the same passage function, the Arrow GL01 with the Sierra lever is a Grade 2 non-keyed passage cylindrical lock for 1-3/4 inch to 2 inch doors, the Corbin Russwin CL3110 passage/closet is Grade 1 for 1-3/4 inch to 2 inch, and the Falcon K101 Grade 1 passage covers 1-3/8 inch to 2-1/4 inch.
11) How far does the Bennett lever stick out from the door, and will it clear a door that opens against a wall?
Projection is 1-15/16 inches off the face of the door, with a 4-1/8 inch lever. That is a shallow rose, so in a tight hallway or a door that swings back against a return wall the lever itself is what contacts first, not the rose. Worth measuring the lever length against the wall clearance on a door that opens flat.
12) Is the Callan Bennett passage lever ADA compliant for an accessible unit?
The Bennett meets ADA requirements. A lever operates with a closed fist and no tight grasping or wrist twisting, which is the reason lever hardware gets specified over knobs on accessible doors. The 4-1/8 inch lever gives a full hand's worth of purchase.
13) What finishes does the Callan Bennett passage leverset come in, and can I match it across a whole unit?
Five finishes: US15 satin nickel, US3 polished brass, US19 black, US10BE edged bronze, and US15A antique nickel. Those are standard BHMA finish codes, so they'll read consistently against other hardware ordered to the same code. Since the passage set is non-handed and reversible, a property manager can standardize one finish and one part across every hall and closet door in a building.
14) What's a Grade 3 alternative to the Callan Bennett if I want a different lever style?
Staying at the same residential Grade 3 level, the Kwikset 200BRNL Breton passage lever covers 1-3/8 to 1-3/4 inch doors, the same range as the Bennett. Moving up one grade, the Bravura passage leversets come in several trims: Atlanta and Orlando on a round rose, Tampa on a square rose, and Miramar in US4 satin brass, all Grade 2. Hager's 2510 is a Grade 2 passage lever with the Withnell design for 1-3/8 to 2 inch doors.
15) I need a lever on a closet door that doesn't need to latch at all. Is a passage set right, or should I use a dummy?
If the door needs to stay shut against a stop and be pulled open, the passage set is correct, since it carries a working latch with a 1/2 inch throw. A dummy lever has no latch and no moving mechanism, so it's only a pull for a door held by a ball catch, roller catch, or magnet. For that case look at the BEST 7KC single dummy trim or the Baldwin Estate 5103 half dummy, which comes in left and right hand versions.
16) Which passage lever gives me a heavier grade without changing the 2-3/8 or 2-3/4 backset I already have prepped?
The Callan Bennett has an adjustable 2-3/8 inch or 2-3/4 inch backset with a 2-1/8 inch cross bore and 1 inch edge bore, standard cylindrical prep. Heavier passage sets in that same cylindrical family include the Design Hardware J75 Grade 2 passage lever lockset with a flat lever for 1-3/4 inch doors, the Accentra 4601LN Grade 2 passage lever with Augusta trim from the 4600 series, and the Falcon K101 Grade 1 heavy duty passage lock covering 1-3/8 inch to 2-1/4 inch doors.
17) I need a keyed lever for the office door and passage levers for the halls - what pairs with the Callan Bennett?
The Bennett is passage only, with no locking function. For the keyed openings, the Cal-Royal AUS00 is a Grade 3 entrance/office lever lock with a solid brass forged body for doors 1-3/8 inch to 1-3/4 inch, the same door thickness range the Bennett covers, and the Master Lock BC Series RL01 is a Grade 3 return style keyed entry lockset. In Grade 2 there is the Hager 2525 commercial cylindrical entry lock with a lever handle for 1-3/8 inch to 2 inch doors.
18) What are my options if I want a square rose or a different lever shape than the Callan Bennett?
The Bennett is a zinc leverset with a 4-1/8 inch lever and 1-15/16 inch projection, offered in US15 satin nickel, US3 polished brass, US19 black, US10BE edged bronze, and US15A antique nickel. If the trim shape is what you are choosing on, the Bravura Tampa is a Grade 2 passage leverset with square trim, while the Bravura Atlanta, Orlando, and Miramar are Grade 2 passage leversets with round trim - the Miramar in a US4 satin brass finish.
19) Can I use a keypad lever set where a Callan Bennett passage lever would go?
The Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for doors 1 3/16 inch to 2 inch, and the Lockey 1150 is a heavy duty mechanical keypad lever set with double combination in passage function for 1-1/8 inch to 2 inch doors. Both cover the 1-3/8 inch to 1-3/4 inch range the Callan Bennett fits, so the door prep suits either, but the Bennett is free turning on both sides with no code entry, and it meets ADA requirements as well.
20) Are the mounting screws on the Callan Bennett lever visible from the face of the door?
Screws are exposed, not concealed, on the Bennett rose. That is normal for a residential Grade 3 lever and it makes service faster, since the set comes apart with a screwdriver and no spanner or hidden clip. If exposed fasteners are a problem on a visible door, that's a design call to make before you order the run.
