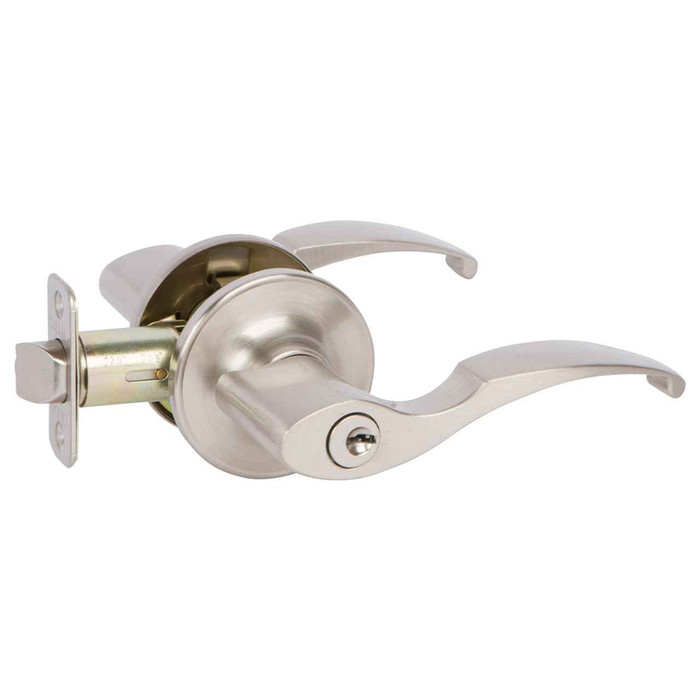

Callan Kendall Grade 3 Passage Leverset
Passage Function: Passage lever sets have no locking function and are free turning on both sides. These are perfect for a hallway or closet where no locking is necessary.
Features:
- Meets BHMA security grade 3 requirements
- Made of durable zinc
- Fully reversible handing for left or right handed applications
- Designed for an easy one person installation
- Comes standard with a round corner latch faceplate and 1/2" throw
- Includes a limited lifetime warranty on mechanical parts and a five year warranty on finish
- Meets the requirements for the American's with Disabilities Act (ADA) requirements
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Reversible Left or Right
- Projection: 2"
- Latch Faceplate: Round Corner
- Concealed Screws: No
- Material: Zinc
Manufacturer Resources
Product Specs
- Subcategory:
- Leversets
- Series:
- Kendall
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lock Function:
- Passage
- Product Type:
- Leversets
- Grade:
- Grade 3
- Product Attribute:
- Cylindrical Locks
- Product Function:
- Passage/Hall/Closet
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Callan KI5011R – Frequently Asked Questions
1) Does the Kendall passage lever go into an existing 2-1/8 inch bore, or does the door need new prep?
Standard prep. The Kendall uses a 2-1/8 inch cross bore and a 1 inch edge bore, which is the normal residential bored-door prep, so it goes into a door already drilled for a knob or lever without re-boring. Latch faceplate is round corner, so if the old latch had a round corner faceplate the mortise in the door edge carries straight over.
2) Do I have to order the Callan Kendall passage lever left hand or right hand?
No handing to specify. The Kendall passage lever is fully reversible and works on either a left or right hand door, so one part number covers every opening in the building. Order by finish only.
3) Does a passage leverset lock, or do I need a privacy set for a bedroom or bathroom?
Passage does not lock. The Kendall turns freely from both sides with no button, no key, no thumbturn. That is right for a hall, closet, laundry, or pantry door. For a bedroom or bathroom you want a privacy set with an inside push button instead, such as the Kwikset 300BRNL Breton privacy lever or the Hager 2540 privacy lock.
4) Is a Grade 3 lever like the Callan Kendall good enough for an apartment building or an office corridor?
Grade 3 is the residential duty tier, and the Kendall is catalogued for residential use. For apartment interiors, closets, and unit hall doors it is the right spend. For a commercial corridor, a school, or anything getting public traffic, step up to a Grade 2 or Grade 1 passage lever: the Falcon B101 is Grade 2 medium duty, and the Falcon K101 is Grade 1 heavy duty and fire rated. Both are non-handed passage function like the Kendall.
5) Can I use the Callan Kendall passage lever on a fire rated door?
The Kendall is a Grade 3 residential passage set and carries no fire rating. For a rated opening use a lever with a stated fire rating, such as the Falcon K101 Grade 1 passage lock, which is fire rated and covers 1-3/8 to 2-1/4 inch doors, or the Corbin Russwin CL3110 Grade 1 passage lock, fire rated for 1-3/4 to 2 inch doors.
6) What is a direct commercial-grade equivalent to the Callan Kendall passage leverset for a hallway door?
The Callan Kendall is a Grade 3 passage leverset for residential hall and closet openings. If the opening needs a higher ANSI/BHMA grade with the same passage function, the Accentra 5301LN Augusta is a Grade 2 cylindrical lever lock in passage/closet function, and the Falcon K101 is a Grade 1 passage cylindrical lock with non-handed levers, fire rated, covering doors 1-3/8 inch to 2-1/4 inch thick. All three are non-keyed and turn freely from both sides.
7) Which Grade 3 lever locks match the Callan Kendall passage set on adjacent doors that need to lock?
The Kendall is a Grade 3 passage lever with no locking function. For doors on the same run that need to secure, the Kwikset 300BRNL RDT Breton is a Grade 3 privacy lever for bed and bath, the Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body, and the Master Lock RL Series RL01 is a Grade 3 keyed entry lever in a return style. All three carry the same Grade 3 rating as the Kendall.
8) Will the Callan Kendall latch into the strike plate that is already in my frame?
The Kendall latch has a 1/2 inch throw, which is the standard bored-lock throw, so it engages a strike already set for a residential knob or lever latch. The faceplate is round corner. If the existing strike is a full-lip commercial strike or the frame was prepped for a deeper deadlatch, check the strike lip alignment before you swap.
9) Is the Callan Kendall lever ADA compliant for a rental unit?
Yes. The Kendall meets Americans with Disabilities Act requirements. Lever operation is what does it, no tight grasping or wrist twisting to open, which is why levers get specified over knobs on accessible units.
10) What else could I buy instead of the Callan Kendall for a hall or closet door?
Same residential Grade 3 passage tier: the Kwikset 200BRNL Breton passage lever covers the same 1-3/8 to 1-3/4 inch door range. Moving up in duty, the Bravura Atlanta, Orlando, and Tampa passage leversets are Grade 2, with Tampa carrying square trim if you want a squared rose instead of round. For a commercial spec, the Accentra 5301LN Augusta is a Grade 2 passage lever and the Design Hardware X75 is Grade 1.
11) Is there a fire rated alternative to the Callan Kendall passage lever?
For a passage lever on a rated opening, the Falcon K101 is a Grade 1 fire rated passage cylindrical lock with non-handed levers for doors 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CL3110 is a Grade 1 fire rated vandal resistant passage lever for doors 1-3/4 inch to 2 inch. Both keep the free turning passage function of the Callan Kendall.
12) Can I use a keypad lever in place of the Callan Kendall passage leverset?
A keypad lever is not a substitute for a passage set on a hall or closet door, because the Kendall is free turning on both sides with no locking function at all. Where the opening does need code controlled access in a lever format, the Lockey 2835 is a mechanical pushbutton keyless lever lock with a passage function that is ADA compliant and fits doors 1 3/16 inch to 2 inch, the Lockey 1150 is a heavy duty mechanical keypad lever set with double combination in passage function for doors 1-1/8 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock.
13) What passage lever should I specify instead of the Callan Kendall for a commercial or institutional opening?
The Callan Kendall is a Grade 3 lever set catalogued for residential use. For heavy traffic openings, the Falcon T101 is a Grade 1 heavy duty passage lever with pressure release technology, the Design Hardware X75 is a Grade 1 passage lever lockset with a flat lever for 1-3/4 inch doors, and the Falcon K101 is a Grade 1 heavy duty passage lock that is fire rated. The Design Hardware J75 is the Grade 2 flat lever passage set in the same family if Grade 1 is more than the opening calls for.
14) Which passage lever alternatives to the Callan Kendall have a decorative trim option?
The Kendall is a zinc lever set offered in US15 Satin Nickel and US10BE Edged Bronze. For a different trim look in the same passage function, Bravura offers the Atlanta and Orlando with round trim and the Tampa with square trim, all Grade 2 passage leversets, and the Miramar with round trim in a US4 Satin Brass finish. The Baldwin Estate 5103 passage lever with the 5048 rose is another passage option with a distinct rose profile.
15) What is the closest match to the Callan Kendall passage lever for a landlord standardizing interior doors across units?
The Kendall is a Grade 3 passage lever, reversible for left or right hand doors, fitting 1-3/8 inch to 1-3/4 inch doors. The Kwikset 200BRNL RDT Breton is also a Grade 3 passage lever for the same 1-3/8 inch to 1-3/4 inch door range, and the Kwikset 200DL Delta passage lever is reversible with an adjustable 6AL latch and RCS strike. The 200DL-RCALFD version of the Delta carries a round corner adjustable 20 minute UL latch with a round corner strike if any of the openings need a fire rated latch.
16) What do I order instead of the Callan Kendall if the door needs a key?
The Kendall has no locking function, so any keyed opening needs a different lockset. The Cal-Royal AG00 is an entrance lever with a 6-pin Schlage C keyway keyed different and a 2-3/8 inch backset for doors 1-3/8 inch to 1-3/4 inch, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt over the same door range, and the Hager 2525 is a Grade 2 commercial entry lock with a lever handle for doors 1-3/8 inch to 2 inch. The Dexter C1000 entry/office lever is the Grade 1 clutching option for 1-3/8 inch to 1-3/4 inch doors.
17) What finishes does the Callan Kendall passage lever come in?
Two: US15 Satin Nickel and US10BE Edged Bronze. If you are matching existing hardware across a unit, satin nickel pairs with brushed chrome and stainless trim, while edged bronze reads as an oil rubbed bronze family finish.
18) How far does the Kendall lever stick out from the door face?
Projection is 2 inches. That matters where a door swings back against a wall, in a tight closet return, or next to a cabinet or appliance, since the lever, not the door, becomes the first thing to hit. Trim rose has exposed screws rather than concealed ones.
19) What is the Kendall lever made of, and how does that hold up on a rental turn?
Zinc body and trim. Zinc die cast is the normal material at the Grade 3 residential tier and handles interior hall and closet duty. If you need a forged brass body for a Grade 3 opening that sees harder use, the Cal-Royal AUS00 is a solid brass forged lever, though it is an entrance/office function rather than passage.
20) Can one person install the Callan Kendall passage lever, or does it take two?
One person. The Kendall is built for single-installer mounting on a standard bored door: 2-1/8 inch cross bore, 1 inch edge bore, backset adjusts on the latch itself between 2-3/8 and 2-3/4 inches, and there is no handing to set. Screws through the rose are exposed rather than concealed, so no snap ring tool is needed.
21) What is a lighter duty commercial passage lever than the Grade 1 options, similar in function to the Callan Kendall?
Between the Grade 3 Callan Kendall and the Grade 1 sets, the medium duty tier holds the Falcon B101, a Grade 2 cylindrical passage lever with a non-handed design, and the Accentra 4601LN, a Grade 2 passage cylindrical lever with Augusta trim. The Design Hardware J75 is a Grade 2 flat lever passage lockset for 1-3/4 inch doors. All three hold the same passage/hall/closet function as the Kendall.
