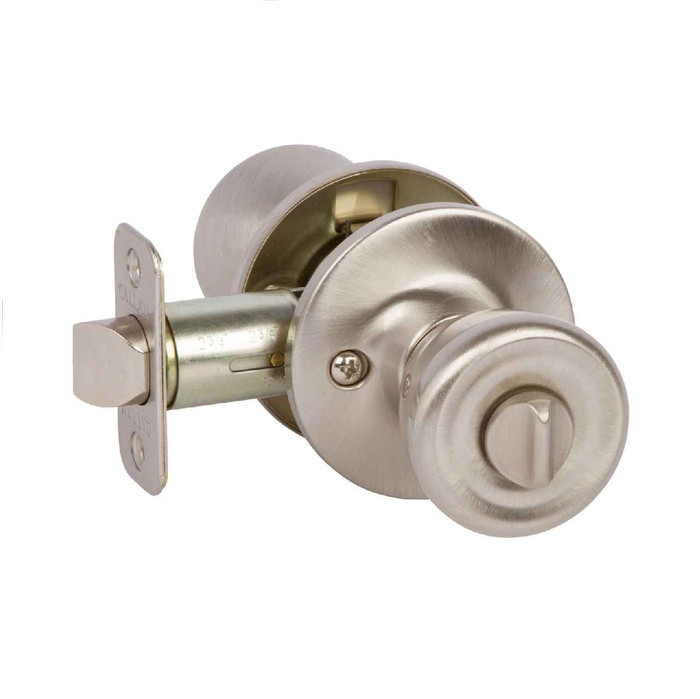

Callan Brayden Privacy Door Knobset
Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Features:
- Meets BHMA security grade 3 requirements
- Made of durable zinc
- Fully reversible handing for left or right handed applications
- Designed for an easy one person installation
- Comes standard with a round corner latch faceplate and 1/2" throw
- Includes a limited lifetime warranty on mechanical parts and a five year warranty on finish
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Reversible Left or Right
- Projection: 2-3/8"
- Latch Faceplate: Round Corner
- Cylinder: 5 Pin KW1
- Concealed Screws: No
- Material: Zinc
Manufacturer Resources
Product Specs
- Subcategory:
- Bored Locksets
- Series:
- Brayden
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lock Function:
- Privacy
- Product Type:
- Knobsets
- Grade:
- Grade 3
- Product Attribute:
- Cylindrical Locks
- Product Function:
- Privacy/Bed/Bath
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Callan KA1021 – Frequently Asked Questions
1) Will the Callan Brayden privacy knob fit a standard 1-3/8 inch interior bedroom door?
Yes. The Brayden privacy knobset covers doors from 1-3/8 inch through 1-3/4 inch, so it works on older 1-3/8 inch interior doors and on 1-3/4 inch doors without any extra kit. Backset is adjustable to either 2-3/8 or 2-3/4 inches, which are the two standard bore locations.
2) Does the Brayden knob drop into an existing 2-1/8 inch bore without redrilling?
It does. The Brayden is a bored cylindrical knobset prepped for a 2-1/8 inch cross bore and a 1 inch edge bore, which is the standard residential prep. If your existing knob came out of that hole, this goes back in. The latch faceplate is round corner, so it matches a round corner mortise in the door edge.
3) Do I need to order a left hand or right hand version of this Callan knobset?
No handing to specify. The Brayden is fully reversible for left or right hand doors, so one part number covers either swing. That makes it easier to stock a single item across a building.
4) How does a privacy knob differ from a keyed entry knob for a bathroom door?
Privacy means it locks from the inside only, with a turn button or push button on the room side and a small pin hole on the outside for emergency release. There is no key. That is what you want on a bedroom or bathroom. If the door needs to be locked from the outside with a key, you need an entrance function instead, such as the Cal-Royal BER00 Grade 3 entrance/office knob or the Pamex FTF Baron entrance/office lockset.
5) Is a Grade 3 knobset good enough for apartment bedroom and bathroom doors?
For residential interior openings, yes. The Brayden meets BHMA Grade 3 requirements and is built as residential hardware in zinc. For commercial corridors, schools, or anything with heavy daily traffic, step up to a Grade 2 or Grade 1 cylindrical privacy lock like the Dexter C2000 Grade 2 privacy knob.
6) What is the closest Grade 3 privacy knob equivalent to the Callan Brayden from another brand?
The Pamex FTF Baron knob lockset in privacy function is the nearest match: it is a Grade 3 privacy knob lockset for doors 1-3/8 inch to 1-3/4 inch thick, the same door thickness range the Callan Brayden Grade 3 privacy knobset covers. The Cal-Royal BER20 is also a Grade 3 privacy knob lock for 1-3/8 inch to 1-3/4 inch doors, with brass trim. Both share the Brayden's privacy bed and bath function, so either drops into the same bedroom or bathroom opening.
7) I need a heavier duty privacy knob than a Grade 3 for a commercial corridor restroom. What should I use instead?
Step up to the Dexter C2000 Series Grade 2 privacy cylindrical ball knob lock, which is non-clutching, non-keyed, and fits doors 1-3/8 inch to 1-3/4 inch. It carries a higher ANSI/BHMA grade than the Callan Brayden knobset, which meets Grade 3 requirements and is catalogued for residential use. For a facility standardizing on one line, the C2000 privacy knob also has passage, entry/office, and classroom siblings in the same series.
8) The bedroom door needs a key, not a privacy pin. What replaces the Callan Brayden privacy knobset?
Move to a keyed function. The Cal-Royal BER00 is a Grade 3 entrance/office knob lock with a Kwikset keyway for 1-3/8 inch to 1-3/4 inch doors, which matches the Brayden's 5 pin KW1 cylinder keyway family. The Pamex FTF Baron in entrance/office function and the Kwikset 400P-CP Polo keyed entry knob are also Grade 3 for 1-3/8 inch to 1-3/4 inch doors. The Brayden itself is privacy only, with an interior turn and an emergency pin hole outside.
9) We have doors thicker than 1-3/4 inch. What privacy or knob option goes beyond the Callan Brayden range?
The Callan Brayden knobset is built for doors 1-3/8 inch to 1-3/4 inch. For thicker doors, the Deltana 6112 St. Thomas privacy knob covers 1-3/8 inch to 2 inch. If the opening also allows a non-privacy function, the Corbin Russwin CK4310 Grade 1 passage lock and the Falcon X101 Grade 1 passage knobset cover 1-3/8 inch to 2 inch and 1-3/8 inch to 2-1/4 inch respectively.
10) Will the 1/2 inch latch throw catch my existing strike plate?
The Brayden ships with a standard 1/2 inch throw latch, which is the normal residential deadlatch projection, so it engages a standard strike in a wood frame. The faceplate is round corner. If your existing strike and latch mortise are square corner, plan on either swapping the strike or dressing the mortise.
11) The Brayden has a KW1 cylinder listed. Can I key it into my Kwikset master system?
Careful here. The Brayden is a privacy function, so it does not lock with a key at all, even though a 5 pin KW1 cylinder is referenced for the series. To key an opening into a Kwikset KW1 system you need a keyed entry knob, such as the Cal-Royal BER00, which uses the Kwikset keyway.
12) What other Grade 3 privacy knobs could I use instead of the Callan Brayden?
Two close substitutes at the same grade and same 1-3/8 to 1-3/4 inch door range: the Cal-Royal BER20 privacy knob with brass trim, and the Pamex FTF Baron privacy lockset. If you want a step up in duty, the Dexter C2000 Grade 2 privacy ball knob covers the same door thicknesses. For a decorative solid brass look on the same function, Deltana's 6112 St. Thomas privacy knob handles 1-3/8 to 2 inch doors.
13) I need matching hardware for a hall closet next to the bathroom. What pairs with this?
A closet or hall door does not need to lock, so use a passage function rather than privacy. Passage options that share the same 1-3/8 to 1-3/4 inch door range include the Pamex FTF Baron passage lockset and the Dexter C2000 Grade 2 passage ball knob. For a door that just needs a pull with no latch, a dummy trim like the Cal-Royal BA40 works.
14) The door does not need to lock - what matches the Callan Brayden knob for a hall or closet?
For a non-locking opening you want a passage function rather than the Brayden's privacy function. The Pamex FTF Baron knob lockset in passage function is Grade 3 for 1-3/8 inch to 1-3/4 inch doors, keeping the same grade and door thickness range as the Brayden privacy knobset. Other passage knobs include the Bravura Albany and Bravura Lynchburg round trim knobsets, both Grade 2, and the Arrow MK01 Grade 2 passage knob for 1-3/8 inch to 1-3/4 inch doors.
15) Will a Baldwin or Deltana privacy knob work in place of the Callan Brayden?
Functionally yes, on the right door. The Baldwin Estate 5000 Baltimore knob privacy lock comes preconfigured with a 2-3/8 inch backset and full lip strike, while the Callan Brayden knobset ships with an adjustable 2-3/8 inch or 2-3/4 inch backset and a round corner latch faceplate, so the Baldwin is fixed to the shallower bore centerline. The Deltana 6112 St. Thomas privacy knob and the Baldwin Estate 5077 Bethpage privacy knob with R027 rose are other privacy options; the Deltana covers doors 1-3/8 inch to 2 inch, wider than the Brayden's 1-3/8 inch to 1-3/4 inch range.
16) Is a dummy knob an acceptable substitute for the Callan Brayden privacy knobset?
No. Dummy trim such as the BEST 6K Series single dummy, the Schlage A170 single dummy trim, the Cal-Royal BA40 dummy knob, or the Bravura Biloxi dummy knobset has no latch and no locking mechanism - it is surface trim on a door held shut some other way. The Callan Brayden knobset is a privacy bed and bath function with an interior locking mechanism and a latch with 1/2 inch throw, so it is what you need on a bathroom or bedroom door.
17) Does the Callan Brayden privacy knobset work on a fire rated door?
The Brayden is a Grade 3 residential privacy knobset in zinc with a round corner latch faceplate. Where an opening calls for fire rated hardware, the Falcon W101 Grade 2 cylindrical knob lock and the Falcon X101 Grade 1 knobset are both carried as fire rated; note that both are passage/closet function rather than privacy, so they suit a corridor or closet door rather than a bath.
18) I am buying knobs for a whole apartment turn - is there a multi-pack or combo alternative to ordering Callan Brayden units individually?
The Callan Brayden privacy knobset is ordered as a single set per door, in US15 Satin Nickel or US3 Bright Brass. If you want to cover multiple doors in one line item, the Sure-Loc Bergen round knob ships as a 6-pack with adjustable backset, and the Schlage Residential F500 Plymouth with Georgian knob is a combo pack with adjustable backsets and dual strikes for 1-3/8 inch to 1-3/4 inch doors, the same door range as the Brayden.
19) What finishes does the Callan Brayden privacy knob come in?
Two: US15 Satin Nickel and US3 Bright Brass. If you are matching other openings in a unit, those are the finish codes to check against the passage and entry hardware already hung.
20) How far does this knob stick out from the door face?
Projection is 2-3/8 inches on the Brayden knob. Worth checking where a door swings back against a wall or where furniture sits tight behind the door.
21) Can one person install this knobset, and are the screws visible?
The Brayden is built for a one person install, and the screws are exposed rather than concealed. If a spec calls for concealed fasteners on the rose, this is not the set for it.
