Callan Callan Fairfield - Grade 3 Entrance Combo Knobset with Deadbolt CLN-KR3003

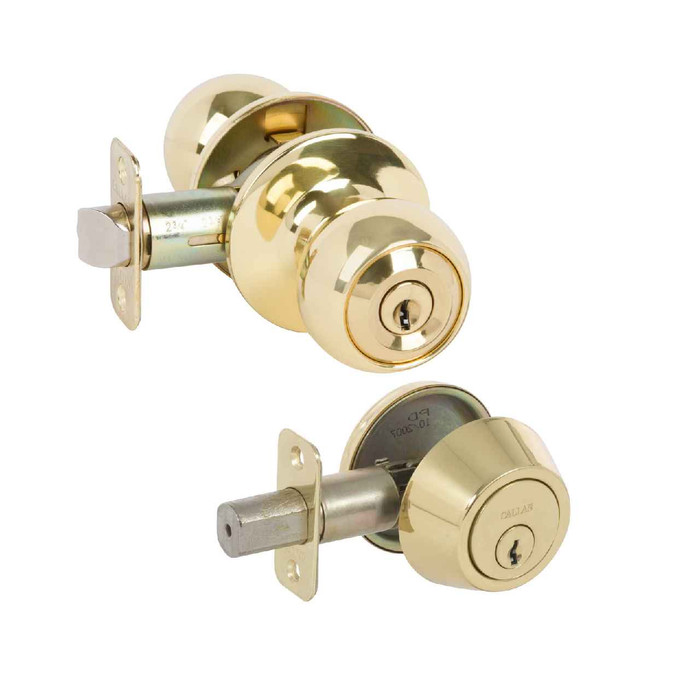

Callan Fairfield - Grade 3 Entrance Combo Knobset with Deadbolt

(No reviews yet) Write a Review

Model: KR3001
$57.00
$46.10
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$57.00
$46.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Callan Fairfield Entrance Combo Knobset with Deadbolt

Keyed Entry Function: Keyed entry knobs and levers are able to be locked from the exterior with a key, and then locked or unlocked from the inside with a turn-button.


Features:

  • Meets BHMA security grade 3 requirements
  • Made of durable zinc
  • Fully reversible handing for left or right handed applications
  • Designed for an easy one person installation
  • Comes standard with a round corner latch faceplate and 1/2" throw
  • Includes a limited lifetime warranty on mechanical parts and a five year warranty on finish



Specifications:



Knob Specifictions:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handing: Reversible Left or Right
  • Projection: 2-3/8"
  • Latch Faceplate: Round Corner
  • Cylinder: 5 Pin KW1
  • Concealed Screws: No
  • Material: Zinc



Deadbolt Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handing: Reversible Left or Right
  • Diameter: 2-1/2"
  • Projection: 15/16"
  • Latch Faceplate: Round Corner
  • Cylinder: 5 Pin KW1
  • Concealed Screws: No
  • Material: Zinc



Technical Specification Download

Manufacturer Resources

Product Specs

Subcategory:
Bored Locksets
Series:
Fairfield
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Function:
Combo Entrance
Product Type:
Knobsets
Grade:
Grade 3
Product Attribute:
Cylindrical Locks
Product Function:
Entrance
Product Category:
Mechanical Locks
Department:
Door Hardware

Callan KR3001 – Frequently Asked Questions

1) Will the Callan Fairfield entry knob and deadbolt combo fit a 1-3/8 inch door?
Yes. The Fairfield combo set is built for doors 1-3/8 inch through 1-3/4 inch, so it covers both the standard 1-3/4 inch exterior slab and the thinner 1-3/8 inch doors common on older houses. Both halves of the set, knob and deadbolt, share that same range, so you are not matching two different thickness specs.
2) Does the Callan Fairfield knobset drop into existing 2-1/8 inch bored holes?
It should. Both the knob and the deadbolt use a 2-1/8 inch cross bore with a 1 inch edge bore, which is the standard residential prep, and the backset is adjustable to either 2-3/8 or 2-3/4 inches so it lands on whichever hole spacing your door was drilled for. The latch and deadbolt faceplates are round corner, so if the door edge is mortised for a round corner plate you are replacing like for like. Square corner mortises will need the corners squared off or a plate change.
3) Can I get the Callan Fairfield keyed alike with my other doors, and what keyway does it use?
Keying is a required choice on the Fairfield combo: keyed different or keyed alike. The cylinder is 5 pin and you pick the keyway, either KW1 5-pin standard or SC1 5-pin, so you can match whichever key family the rest of the building already runs. Keyed alike is the option that puts one key in the knob and the deadbolt on every door you order together.
4) Will the Callan Fairfield deadbolt latch into the strike already in my frame?
The deadbolt throws 15/16 inch and the knob latch throws 1/2 inch, both with round corner faceplates. A 15/16 inch bolt needs a strike with a full depth pocket in the jamb, so if you are replacing an older deadbolt check the jamb is bored deep enough behind the strike, not just that the plate lines up. On the knob side, a 1/2 inch throw is the ordinary residential latch and drops straight into a standard round corner strike.
5) Is a Grade 3 knobset like the Callan Fairfield enough for an apartment entry door, or do I need Grade 2?
Grade 3 is the residential tier, and the Fairfield is catalogued as a residential product for that reason. It suits single family and low turnover apartment entries. For a commercial entry, a corridor, or anything taking constant public traffic, step up: the Cal-Royal BER00 is a Grade 3 entrance knob with a Kwikset keyway, the Dexter C2000 entry/office knob is Grade 2, and the BEST 8K Series entrance knob is Grade 1 heavy duty. Grade 1 is the top ANSI/BHMA tier and Grade 3 the lowest, measured in cycles and strike resistance.
6) What is the closest alternative to the Callan Fairfield if I want a knob and deadbolt combo pack from another brand?
The Schlage Residential F500 Plymouth with Georgian knob is the direct counterpart, a combo function set with adjustable backsets and dual strikes covering 1-3/8 to 1-3/4 inch doors, the same thickness range the Fairfield carries. Most other knob locks in this class are sold as a single function only: the Kwikset 400P-CP is a Grade 3 keyed entry knob on its own with no deadbolt, and the Pamex FTF Baron is a Grade 3 entrance/office knob by itself. If you want one key running the knob and the bolt out of one box, the combo sets are the ones to look at.
7) Will the Callan Fairfield work on a 2 inch thick door?
No. The Fairfield tops out at 1-3/4 inch door thickness. For a thicker slab you need a lock rated past it: the Corbin Russwin CK4851 entrance/office cylindrical lock covers 1-3/8 to 2 inches, the Deltana 6171 round knob entry covers 1-3/8 to 2 inches, and the Falcon X101 goes to 2-1/4 inches. Measure the slab before ordering; a lot of custom and older exterior doors run over 1-3/4.
8) I only need a keyed knob, not a deadbolt. What should I order instead?
Order a keyed entry knob on its own. The Kwikset 400P-CP Polo is a Grade 3 keyed entry knob for doors 1-3/8 inch to 1-3/4 inch with a round corner adjustable latch and round corner strike, the same round corner latch faceplate style the Callan Fairfield uses. The Master Lock BC01 Biscuit knob is another Grade 3 keyed entry knob. Both cover the lock function of the Fairfield knob without the second bore for a deadbolt.
9) The Fairfield is Grade 3. What do I use on a commercial opening that needs a higher grade?
Step up to a commercial cylindrical lock. The BEST 8K Series entrance function single cylinder knob lock is Grade 1 heavy duty, and the Corbin Russwin CK4851 is an entrance/office cylindrical lock rated Grade 1 for doors 1-3/8 inch to 2 inch. The Callan Fairfield is a Grade 3 residential set, so on a leased corridor or a facility door with an ANSI/BHMA Grade 1 spec on the drawing, those two carry the rating the Fairfield does not.
10) Which knobsets look like the Callan Fairfield but will not lock the door?
Passage and dummy knobs share the same knob profile and rose but have no cylinder and no key. The Pamex FTF Baron in passage function, the Dexter C2000 passage ball knob and the Bravura Albany and Lynchburg passage knobsets are all Grade 2 or Grade 3 non-keyed passage sets, and the Bravura Biloxi and BEST 6K single dummy trim are dummy function, meaning the knob does not turn a latch at all. The Callan Fairfield is a keyed entrance function with a deadbolt, so none of these substitute on an exterior door.
11) Can I key a Callan Fairfield alike with a Kwikset or Schlage cylinder already on the property?
The Callan Fairfield takes either a KW1 5-pin standard or an SC1 5-pin cylinder, so it can be ordered to match an existing Kwikset or Schlage keyway, and keyed alike is available across the set. Among comparable knob locks, the Cal-Royal BER00 Grade 3 entrance/office knob is also built with a Kwikset keyway, which makes it a workable second series on the same key system for a fleet of doors.
12) Is the Fairfield entrance knobset handed, or does one part number cover both left and right doors?
One part number covers both. The Fairfield is fully reversible for left or right hand doors, so you order by finish and keying only and set the handing at install. For a property manager buying a dozen at once, that means no sorting by opening when the boxes arrive.
13) How does the keyed entry function on the Callan Fairfield actually work day to day?
Key from outside, turn button inside. The knob locks and unlocks from the exterior with the key, and from the interior you throw or release it with the turn button, no key needed on the way out. The deadbolt in the set is keyed to the same cylinder spec, so a tenant carries one key for both.
14) How far does the Callan Fairfield knob stick out from the door, and will it clear a storm door?
Projection on the knob is 2-3/8 inches off the face of the door; the deadbolt trim projects 15/16 inch and the rose measures 2-1/2 inches in diameter. That 2-3/8 inch figure is the number to check against a storm door or screen door hung close to the slab, and against any adjacent wall or door swing where a knob could bind.
15) Can one person install the Callan Fairfield entry set, and does anything else need to be ordered?
It is built for a one person install, and the set includes the knob, the deadbolt, the round corner latch and faceplates. The two things you specify on the order rather than add later are the keyway, KW1 or SC1 5-pin, and whether the set is keyed alike or keyed different. Nothing about the prep is unusual: 2-1/8 inch cross bore, 1 inch edge bore, backset set to 2-3/8 or 2-3/4 inches at install.
16) I need matching knobs on the interior doors to go with a Fairfield entry set. What function do I order for a bedroom or a closet?
Not this one. The Fairfield combo is keyed entry, meant for the exterior opening. Bedrooms and bathrooms take a privacy function with a push button and no key, and closets and hallways take a passage function that never locks. Within the same Grade 3 residential band, the Pamex FTF Baron comes in privacy and passage versions, and the Cal-Royal BER20 is a Grade 3 privacy knob. Keep the finish consistent across the three functions and the house reads as one set.
17) What is a Grade 3 alternative to the Callan Fairfield if I want a different knob style?
Several Grade 3 entrance knobs cover the same function with different trim. The Pamex FTF Baron knob lockset is an entrance/office function Grade 3 set for doors 1-3/8 inch to 1-3/4 inch, and the Cal-Royal BER00 is a Grade 3 entrance/office knob lock with a Kwikset keyway, which matches the KW1 5-pin cylinder the Callan Fairfield ships with. Delaney also offers Grade 3 entrance knobsets in the Belton, Galway and Olivia series.
18) The opening needs a fire rated knob lock. Is the Callan Fairfield the right choice?
For a fire rated opening, use a lock carrying a fire rating. The Falcon W101 Grade 2 cylindrical knob lock and the Falcon X101 Grade 1 knobset are both fire rated. The Callan Fairfield is a Grade 3 residential entrance set, so specify one of the Falcon sets where a rated door assembly is involved. Note that both Falcon sets are passage/closet function, so a fire rated opening that also needs keying calls for a keyed commercial set such as the Corbin Russwin CK4851.
19) What do I use on interior bedroom and bathroom doors to match a Callan Fairfield entry?
Interior doors take a privacy function set, which locks with a turn button and has no key. Grade 3 options include the Pamex FTF Baron privacy knob and the Cal-Royal BER20 privacy knob with brass trim; Dexter's C2000 privacy ball knob is Grade 2 for doors 1-3/8 inch to 1-3/4 inch. The Callan Fairfield handles the exterior opening with its keyed knob and deadbolt, and these cover the bed and bath doors behind it.
20) Is a storeroom knob lock a substitute for the Callan Fairfield entrance set?
No. A storeroom function knob is always locked on the outside and takes a key every time, with no inside turn button to leave it unlocked. The Sargent 6G04 is a Grade 2 storeroom/closet knob lock with a single cylinder and the Sargent 8XG04 is the Grade 1 heavy duty version with a 2-3/4 inch backset. The Callan Fairfield is keyed entry: locked from outside with a key, and locked or unlocked from inside with a turn button, which is what a residential front or side door usually wants.
21) I want a keyless option instead of a keyed knob for a rental turnover. What is available?
The Lockey 3830 is a mechanical keyless combination knob lock with an auto-locking passage function, fitting doors 1 3/16 inch to 2 inch, and it needs no key to be reissued between tenants. It is a passage function, so it does not carry the deadbolt the Callan Fairfield includes; if the opening needs both, pair the Lockey with a separate deadbolt or stay with the Fairfield combo and its keyed alike option.
22) What finishes does the Callan Fairfield combo knobset come in?
Four: US3 bright brass, US15 satin nickel, US10B oil rubbed bronze, and US10BE edged bronze. Both the knob and the deadbolt ship in the finish you pick, so the pair matches on the door without hunting for a separate bolt. Finish carries a five year coverage term on the Fairfield line, which is worth knowing if the door faces weather.
23) What is the Callan Fairfield knobset made of, and are the screws visible on the inside?
Zinc, on both the knob half and the deadbolt half, and the mounting screws are exposed rather than concealed. Zinc keeps the set in the residential duty band. If the look matters more than the price point on an interior facing entry, solid brass alternatives exist in this category, such as the Omnia 434 series knob latchsets.
24) What is the difference between the Callan Fairfield and a classroom function knob lock?
A classroom function knob is keyed from the outside only and has no inside locking button, so an occupant cannot secure the door from within. The Dexter C2000 classroom ball knob is Grade 2, non-clutching, keyed, for doors 1-3/8 inch to 1-3/4 inch. The Callan Fairfield is keyed entry with an inside turn button and a matching deadbolt, which suits a dwelling entrance rather than a classroom door governed by a lockdown procedure.
