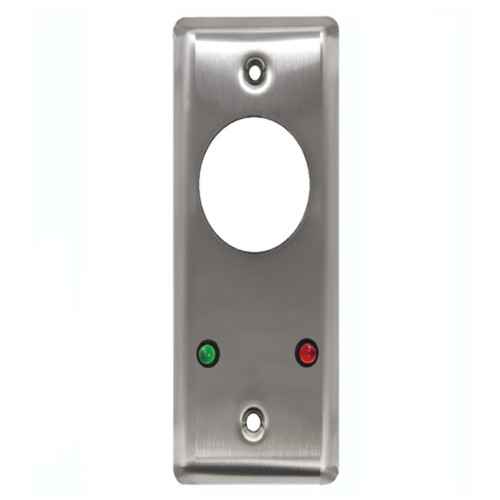

Camden CM-2200 Series Stainless Steel Flush Mount Narrow Stile Key Switch Control
Model: CM-CM-2200
Camden Door Controls
Camden CM-3200 & CM-3500 Series Stainless Steel Flush Mount Double Gang Cylinder Key Switch
Model: CM-CM-3200/3500
Camden Door Controls
Camden CM-1190-7224 Cast Aluminum Flush Mount Single Gang Key Switch Control, DPDT Maintained, Red and Green 24V LEDs
Model: CM-CM-1190-7224
Camden Door Controls

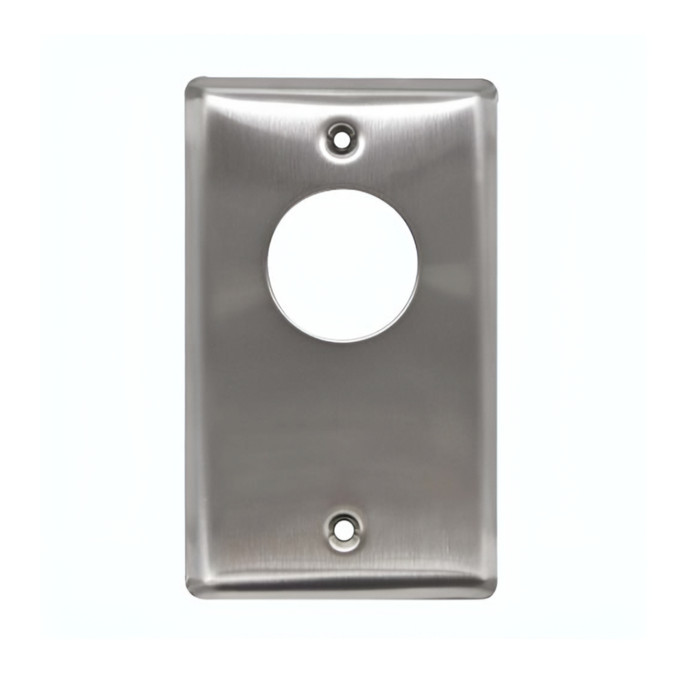

Camden CM-1290 Key Switch - Stainless Steel Key Switch DPDT Maintained
The Camden CM-1290 is a rugged, flush-mount, vandal-resistant key switch built to deliver flexible, reliable access control in commercial and industrial settings. As part of Camden’s CM series, it is configured with a DPDT maintained contact arrangement, making it ideal for applications where a stable “on/off” control with dual circuits is needed.
The CM-1290 supports both left and right operation, accepts standard 1″ to 1¼″ mortise cylinders, and is finished in durable stainless steel for indoor or outdoor use.
Its design includes security features such as locators (to prevent cylinder spinning) and tamper-proof screws, making it suitable for public, semi-protected, or high-traffic installations.
Typical usage includes controlling electric strikes, overhead doors, bypass circuits, or dual relay control in access control systems.
Features
-
DPDT Maintained switch: provides dual circuits with a maintained action (i.e. pressing the key stays in position)
-
Flush-mount stainless steel faceplate, durable and vandal resistant
-
Left or right operation flexibility (i.e. can be configured based on user side)
-
Accepts 1″ to 1¼″ mortise cylinders (cylinder sold separately) and works with standard cams
-
Locators in the faceplate prevent cylinders from spinning or rotating unintendedly
-
Tamper-proof screws included for secure mounting and anti-vandal protection
-
Indoor / outdoor use capability (weather-resistant design)
-
3-year warranty typical for Camden key switches
-
LED options (in certain variants) — e.g. red 12 V LED in some models
Specifications
| Parameter | Value / Detail |
|---|---|
| Model / Part | CM-1290 (DPDT maintained) |
| Switch Configuration | DPDT (Double Pole, Double Throw), maintained |
| Operation Mode | Maintained (i.e. stays in position) |
| Faceplate Material | Stainless steel |
| Cylinder Compatibility | 1″ to 1¼″ mortise cylinder (cylinder not included) |
| Mounting Type | Flush mount, single gang opening |
| Dimensions | 2 ¾″ W × 4 ½″ H × 1 ⅝″ D (≈ 70 mm × 114 mm × 41 mm) |
| Voltage | 12/24 V AC/DC (in typical variants) |
| Contact Rating | 6 A (typical) |
| Operating Temperature | 32 °F to 85 °F (0 °C to +85 °C) |
| Finish Code | US / C32D (standard stainless finish) |
| Switch Life | 100,000 cycles |
| Indoor / Outdoor Use | Suitable for both indoor and outdoor installation |
| Warranty | 3 years (Camden standard) |
Manufacturer Resources
Product Specs
- Subcategory:
- Switches/Push Buttons
- Warranty:
- 3 Year Limited
- Wireless Communication:
- No
- Commercial/Residential:
- Commercial
- Product Type:
- Push Buttons Switches
- Electronic:
- Yes
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Switches/Push Buttons
- Product Model:
- CM-9600
- Product Finish:
- Stainless Steel
- Product Dimension:
- 4-1/2” x 2-3/4” x 1-1/2”
- Product Category:
- Electronic Access Control
