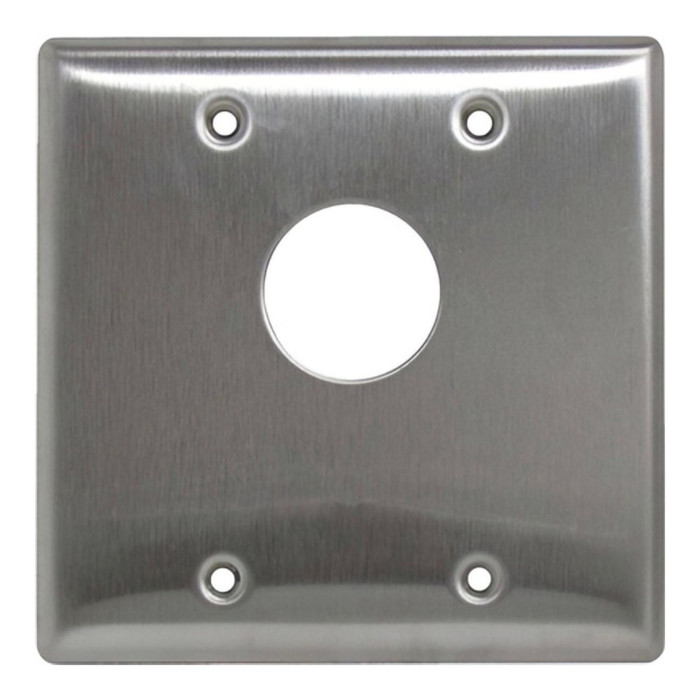

Camden CM-3200 & CM-3500 Series Stainless Steel Flush Mount Double Gang Cylinder Key Switch

Camden CM-3200 & CM-3500 Series Stainless Steel Flush Mount Double Gang Cylinder Key Switch

(No reviews yet) Write a Review

Model: CM-3200

In Stock (leaves warehouse same day if ordered before 3pm ET)

$174.00
$156.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CM-3200 & CM-3500 Series Stainless Steel Flush Mount Double Gang Cylinder Key Switch

'Camden Tough' double gang stainless steel key switches offer thicker faceplate for better vandal resistance, rounded metal edges for safer installation and a pre-assembled switch mounting bracket to reduce installation time. They accept virtually any 1" - 1-1/4" mortise cylinder and cam.

Note: Mortise cylinder sold separately.

FEATURES

  • Left and/or right operation
  • Accepts standard mortise cylinders, 1" to 1-1/4"
  • Heavy duty double gang stainless steel faceplate
  • Locators prevent cylinders from spinning
  • Tamper proof screws and driver provided
  • Indoor and outdoor flush applications
  • Provision for up to 4 internal switches
  • Heat shrink protective sleeve over contacts
  • Color coded 18 AWG soldered leads
  • 3 year warranty

SPECIFICATIONS

Contact Rating: 6 A @ 30 VDC
Switch Life: All: 100,000 cycles
Temp Range: 32°F to 85°F (0°C to +85°C)
Std. Finish: US32 / C32D
Dimensions: 4-1/2" x 4-1/2" x 1-5/8"
(114mm x 114mm x 41mm)

Manufacturer Resources

Product Specs

Subcategory:
Switches/Push Buttons
Warranty:
3 Year Limited
Wireless Communication:
No
Commercial/Residential:
Commercial
Product Type:
Push Buttons Switches
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Switches/Push Buttons
Lock Type:
Mortise Cylinder
Product Dimension:
4-1/2" x 4-1/2" x 1-5/8"
Product Category:
Electronic Access Control
Department:
Door Hardware

Camden Door Controls CM-3200 – Frequently Asked Questions

1) Does the Camden CM-3200 / CM-3500 key switch come with a mortise cylinder?
No cylinder is included. The Camden double gang key switch takes a standard mortise cylinder sized 1 inch to 1-1/4 inch with its cam, bought separately, so you can key it into whatever system the building already runs. Built-in locators keep the cylinder from spinning once it is set.
2) What size box do I need for the Camden double gang stainless key switch?
It is a flush mount unit for a double gang opening. The faceplate assembly measures 4-1/2 x 4-1/2 x 1-5/8 inches, so the 1-5/8 inch depth is what has to clear behind the wall or frame face along with the switch bracket and leads.
3) What is the difference between the 1-cylinder and 2-cylinder version of the Camden CM-3200 / CM-3500?
The choice is how many key cylinders sit in the double gang plate: one or two. Two cylinders let you run separate key control for two functions or two doors off a single flush plate. Either way you can order up to four internal switches in the housing.
4) I need an emergency release at the door instead of a key switch - what should I use?
For emergency release, a mushroom button device is the usual choice rather than a cylinder key switch. The Dortronics 5210 series offers a 1-9/16 inch diameter red mushroom push button labeled Push to Exit / Emergency Release on a single gang plate, and the SDC 440 series uses a 2-5/8 inch diameter large mushroom button in a heavy duty emergency exit design. The Camden CM-3200 and CM-3500 require a mortise cylinder and key to operate, which is the opposite intent - restricted actuation rather than immediate release by anyone.
5) What is the difference between the Camden CM-3200/CM-3500 key switch and an SDC 410 push button exit switch?
The Camden CM-3200 and CM-3500 series are key-operated: they accept a standard 1 inch to 1-1/4 inch mortise cylinder (sold separately) mounted in a double gang stainless steel faceplate measuring 4-1/2 by 4-1/2 by 1-5/8 inches. The SDC 410 series is an illuminated push button exit switch with a narrow frame mount, so it is pressed by anyone at the door rather than requiring a key, and the narrow plate suits a door frame rather than a double gang box. Use the Camden when only keyholders should actuate the door, and the SDC 410 when free egress by push button is what the opening needs.
6) Can I mount a Dortronics 5210 in the same box as the Camden CM-3200 or CM-3500?
No - the box prep differs. The Camden CM-3200 and CM-3500 use a double gang stainless steel faceplate at 4-1/2 by 4-1/2 by 1-5/8 inches, while the Dortronics 5210 mushroom button is mounted on a single gang plate. If you are swapping a single gang Dortronics for the Camden, plan on opening the wall to a double gang box; going the other direction leaves an oversized opening to cover.
7) Can this Camden key switch be used outdoors?
Yes, it is made for indoor and outdoor flush applications. Operating range is 32F to 85F, so a cold climate exterior entry that drops below freezing is outside the stated range and better served by an interior mounting location.
8) Should I use a key switch or a push button for door release?
A key switch restricts operation to whoever holds the key, which is what you want for override, shunt, or authorized release. For free egress or general push to exit, a button is the right device: examples include the SDC 410 Series narrow frame mount illuminated push button, the SDC 430 Series heavy duty industrial mushroom button with a 1-1/2 inch round button, and the Dortronics 5210 Series 1-9/16 inch red mushroom emergency release on a single gang plate.
9) Can the Camden key switch be set up for left hand or right hand key turn?
Yes, it supports left and/or right operation, so you can set the turn direction to suit the function you are switching. The switch mounting bracket comes pre-assembled to cut install time.
10) Which switch should I specify when code compliance for the egress button is on the drawing?
The SDC 420 series is an illuminated push button exit switch with 2 inch buttons and code compliance called out in its description, which is the one to look at when the drawing specifies a compliant egress button. The Camden CM-3200 and CM-3500 series are cylinder key switches - they are for authorized key control of a door control circuit, not for free egress, so they are normally paired with a separate egress device rather than used as one.
11) For a rough industrial or back-of-house door, is the Camden stainless key switch or an SDC 430 the better pick?
Both are built for abuse but in different ways. The Camden CM-3200 and CM-3500 use a thicker double gang stainless steel faceplate with rounded metal edges and tamper proof screws with driver provided, and are rated for indoor and outdoor flush applications - vandal resistance plus key-only actuation. The SDC 430 series is a heavy duty industrial mushroom button switch with a 1-1/2 inch round button, meant to be hit by hand or glove. If staff need to operate the door freely, the 430; if you want only keyholders touching it, the Camden.
12) I need more than one switched circuit from one plate - does an SDC push button do that?
The Camden CM-3200 and CM-3500 double gang plate has provision for up to 4 internal switches and is offered with either one or two cylinder key switches on the plate, with color coded 18 AWG soldered leads and left and/or right operation. The SDC comparables are single-function push buttons - the 410 and 420 illuminated push button exit switches, the 430 and 440 mushroom button switches - so for multiple keyed circuits behind one faceplate the Camden is the configuration to use.
13) Will the Camden CM-3200 key switch match US32D hardware in the rest of my building?
Standard finish is US32 / C32D stainless steel on a heavy duty double gang faceplate, so it lines up with satin stainless door hardware and other stainless plates on the same openings. The plate is thicker than a standard faceplate for vandal resistance, with rounded metal edges.
14) Is the Camden double gang key switch tamper resistant?
Tamper proof screws and the matching driver ship with it, and the stainless faceplate is thicker than standard for vandal resistance. That combination is aimed at exposed public-side locations where a standard screw head would be a weak point.
