Camden CM-2200 Series Stainless Steel Flush Mount Narrow Stile Key Switch Control

Camden CM-2200 Series Stainless Steel Flush Mount Narrow Stile Key Switch Control

(No reviews yet) Write a Review

Model: CM-2200

In Stock (leaves warehouse same day if ordered before 3pm ET)

$128.00
$105.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CM-2200 Series Stainless Steel Flush Mount Narrow Stile Key Switch Control

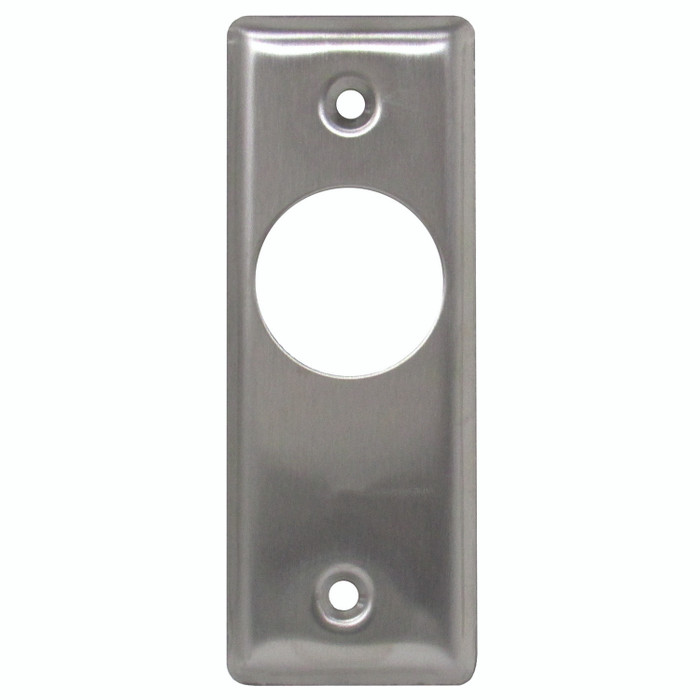

'Camden Tough' stainless steel key switches are available in narrow and single gang widths. The pre-assembled switch mounting bracket is designed to minimize installation time. They accept virtually any 1" - 1-1/4" mortise cylinder and cam.


Note: Mortise cylinder sold separately.

Contact Rating: 6 Amps
Switch Life: All: 100,000 cycles
Temp Range: 32°F to 85°F (0°C to +85°C
Std. Finish: US/C32D
Dimensions:
CM-1200 Series: 2-3/4"W x 4-1/2"H x 1-5/8"D
(70mm x 114mm x 41mm)
CM-2200 Series: 1-3/4"W x 4-1/2"H x 1-5/8"D
(44mm x 114mm x 41mm)

Manufacturer Resources

Product Specs

Subcategory:
Switches/Push Buttons
Warranty:
3 Year Limited
Wireless Communication:
No
Commercial/Residential:
Commercial
Product Type:
Mortise Key Switch
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Switches/Push Buttons
Lock Type:
Mortise cylinder
Product Dimension:
1-3/4"W x 4-1/2"H x 1-5/8"D
Product Category:
Electronic Access Control
Department:
Door Hardware

Camden Door Controls CM-2200 – Frequently Asked Questions

1) Does the Camden CM-2200 key switch come with a mortise cylinder?
No cylinder is included with the CM-2200 narrow stile key switch. You order the mortise cylinder and cam separately, and the switch accepts virtually any 1 inch to 1-1/4 inch mortise cylinder, so you can key it into the building's existing system.
2) Can I wire a Camden CM-2200 key switch directly to a maglock or door strike circuit?
The contacts are rated 6 amps, which covers typical 12V or 24V strike, maglock and access control input loads. The switch is a momentary SPST normally open contact, so it gives a pulse to release rather than a maintained on/off. If you need maintained hold-open, this is not the switch for that.
3) What is the difference between the CM-2200 and the CM-2200-7212?
Switch action is the same on both: SPST momentary, normally open. The CM-2200-7212 adds a red/green 12V LED to the faceplate so you get a visual indication of door or system status at the switch. The plain CM-2200 has no indicator.
4) Is the Camden CM-2200 key switch rated for outdoor or unheated areas?
Its stated temperature range is 32F to 85F, so it belongs in conditioned interior locations. A vestibule that drops below freezing or a hot exterior wall is outside that range.
5) Does the CM-2200 need a network connection or control board to work?
No network involved. It is a hardwired mechanical key switch with no wireless communication, so it drops into an existing access control input, strike circuit or maglock loop as a dry contact. The mounting bracket ships pre-assembled to cut install time.
6) How durable is the CM-2200 for a high traffic entrance?
The switch is rated for 100,000 cycles, in a stainless steel faceplate. For a property manager standardizing entries, that is a switch built for repeated daily keyed use rather than an occasional-use residential device; it is a commercial product.
7) What finish do Camden CM-2200 key switches come in?
Standard finish is US32D satin stainless steel, which is the usual match for storefront push plates, exit device trim and other stainless hardware already on a commercial opening.
