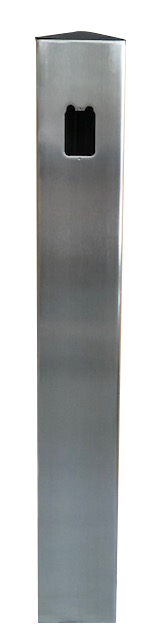

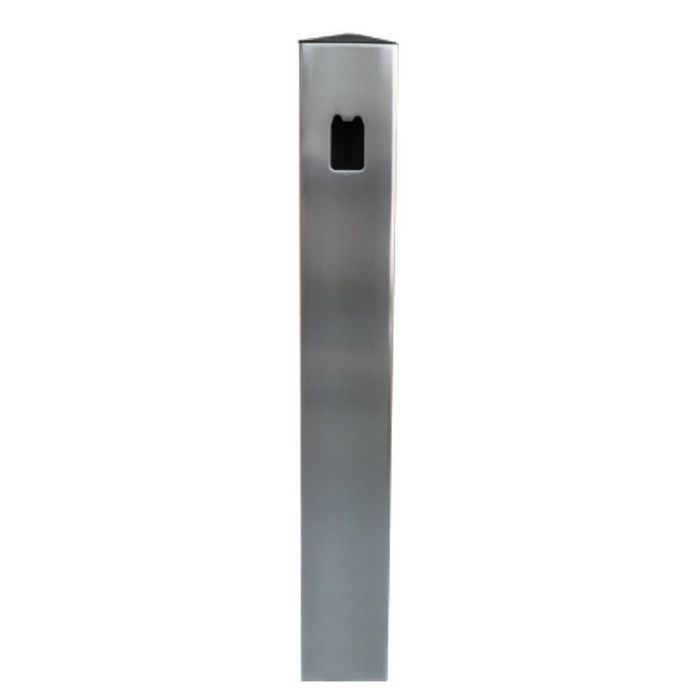

Camden CM-42 Series Single Gang Prep, 42" Tall Mounting Post, 6" x 6"

Camden CM-42 Series Single Gang Prep, 42" Tall Mounting Post, 6" x 6"

(No reviews yet) Write a Review

Model: CM-42-BSU-BRZ
From the CM-42 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$540.00
$402.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

CAMDEN CM-42 SERIES 42" TALL MOUNTING POST

Camden mounting posts offer a superior method of mounting a switch, keypad, card reader, or other door activation device, when mounting adjacent to the door is difficult or unsuitable. The various preps allow for use with virtually any switch or door activation device. Mounting posts are available in stainless steel or aluminum. Aluminum posts offer the option for mill, brushed aluminum or dark bronze anodized finishes. The mounting post has provisions to be hard-wired, or for wireless operation utilizing Camden radio controls.

SPECIFICATIONS

  • Finish options
    • Dark Bronze Anodized Aluminum - CM-42-BSU-BRZ, CM-42-BSU-BRZ-IG
    • Clear Aluminum - CM-42-BSU-CLR, CM-42-BSU-CLR-IG
    • Milled Aluminum - CM-42-BSU-MIL, CM-42-BSU-MIL-IG
    • Satin Stainless Steel - CM-42-BSU-SS, CM-42-BSU-SS-IG
  • Mounting options
    • Without Mounting Base - CM-42-BSU-BRZ, CM-42-BSU-CLR, CM-42-BSU-MIL, CM-42-BSU-SS
    • In-Ground Mounting Base - CM-42-BSU-BRZ-IG, CM-42-BSU-CLR-IG, CM-42-BSU-MIL-IG, CM-42-BSU-SS-IG

Product Specs

Series:
CM-42-BSU
Contact Rating:
3 Amps @ 30 V
Relay Action:
Multi Function
Relay Operating Modes:
Event, Toggle
Inputs:
REX, Door Contact
Warranty:
3 Year Limited
Wireless Communication:
Yes
Subcategory:
Mounting Posts
Sensor:
Active Infrared Air
Number of Relays:
1
Commercial/Residential:
Commercial
Product Type:
Mounting Posts
Power:
40 mA
Fail-safe / Fail-secure:
Field Selectable
Product Group:
Electronic Access Controls
Product Subgroup:
Mounting Posts
Product Voltage:
12VAC/DC/24VDC/24VAC
Product Length:
6"
Switch Device:
SPDT
Product Height:
42"
Product Category:
Electronic Access Control
Product Weight:
0.4
Product Width:
6"
Collection:
CM-42 Series
Department:
Door Hardware

Camden Door Controls CM-42-BSU-BRZ – Frequently Asked Questions

1) Do I need the in-ground mounting base version of the Camden CM-42 post, or the one without a base?
Both are orderable. Order the -IG in-ground base when you are setting the post into concrete or soil at a gate, drive lane, or new walkway pour. Order the version without a mounting base when the post is going onto an existing slab or structure you are anchoring to. The choice is made at order time and is not field-convertible, so pick it off the site condition, not the finish.
2) Can I run a Camden CM-42 post without pulling wire out to it?
Yes. The CM-42 post is built with provisions for hard-wired runs or for wireless operation using Camden radio controls, so an island post in the middle of a walkway does not have to have conduit trenched to it for the signal. Note that a wireless transmitter still needs its own power source at the post unless it is battery powered.
3) Will a Camden CM-42 post accept a keypad or card reader, or only a push button?
Switch, keypad, card reader, or other door activation device all mount to Camden posts, and the range of available preps is what makes that work: the prep in the post face is cut for the device family you are installing. The CM-42-BSU is the single gang prep post, which is the one to specify when your reader or keypad mounts to a standard single gang opening.
4) What voltage does the device in a Camden CM-42 mounting post run on?
The CM-42 series is set up around 12VAC/DC and 24VAC/24VDC operation, which is the same low-voltage range the rest of a door operator and access control package runs on. That means you can normally feed the post off the operator's accessory power rather than bringing a separate supply out to it.
5) What finishes does the Camden CM-42 42 inch mounting post come in?
Four: dark bronze anodized aluminum (CM-42-BSU-BRZ), clear anodized aluminum (CM-42-BSU-CLR), mill aluminum (CM-42-BSU-MIL), and satin stainless steel (CM-42-BSU-SS). Each of the four is also available with the in-ground base by adding -IG. Stainless is the pick where you want to match existing stainless entrance hardware; dark bronze is the one that disappears against bronze storefront.
6) Why mount a door push plate or card reader on a post instead of on the wall next to the door?
A post is the answer when there is nothing beside the opening to mount to, or nothing at the right distance. Glass front entrances, vestibules with full-height glazing, gates, and drive approaches all have that problem. Camden posts exist specifically for openings where mounting adjacent to the door is difficult or unsuitable, and they let you place the actuator far enough back that a swinging door does not sweep the person using it.
7) Is the Camden CM-42 mounting post rated for commercial exterior use?
It is a commercial product, and the material choice is where the exterior decision gets made. Satin stainless steel and anodized aluminum are the two constructions offered, both of which are what you want outdoors; mill aluminum is the unfinished option and is the least suited to a coastal or heavy-salt site. Pair either with the in-ground base for a curbside or gate location.
8) How many of these do I need for a pair of doors or a two-sided opening?
One post per activation point. A single CM-42 handles one device face, so an entrance where people approach from both the exterior and the interior takes two posts, or one post plus a wall or jamb mounted actuator on the side that has something to mount to. Order the finish to match on both, and keep the in-ground or no-base choice separate per location since the two sides often sit on different surfaces.
