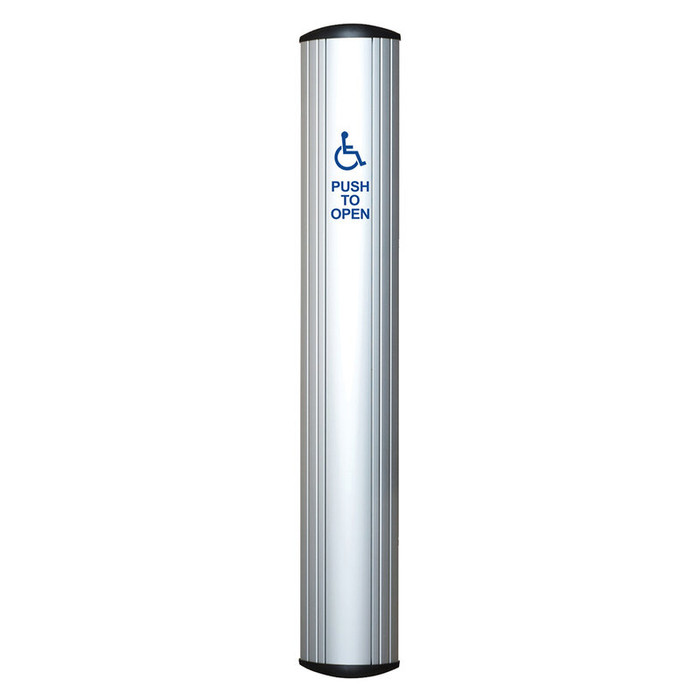

Camden CM-74/75 Series 36" Top Load Push Plate Switches
4.5" WIDE - CM-74 SERIES & 6" WIDE - CM-75 SERIES
'Top Load' Column™ push plate switches are surface-mounted and designed for use when there is no obstruction above the installed unit, and a very low profile is desired.
Features
TOP LOAD 6" WIDE - CM-75 SERIES & 4.5" WIDE - CM-74 SERIES
- OBC, NBC, & CSA compliant. 1-1/2" (12.7mm) deep
(Stainless Steel model not CSA compliant) - Option for built-in touchless activation sensor
- Option for Kinetic™ or Lazerpoint wireless
- Surface mount with leveling screws (no back box)
Specifications
Standard Models | |
---|---|
Voltage: |
N/A
|
Contact Rating: |
15 Amps @ 30 VDC
|
Contact Type: |
SPDT Momentary, Form 'C'
Optional DPDT Switch Used With CM-84 & 85 Series |
VR Models | |
Voltage: |
12-24 VDC +/- 10%
|
Contact Rating: |
1 Amp @ 30 VDC
|
Contact Type: |
Common / N.O. / N.C.
Optional DPDT Switch Used With CM-84 & 85 Series |
DOWNLOADS & RESOURCES
Installation Manuals | |||
CM-75SB Series Surface Box (Op2) | 1.07 | DOWNLOAD | |
CM-7436_Column Switch | 0.48 | DOWNLOAD |
CM-75 Manual_R2 | 0.53 | DOWNLOAD |
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Control
- Series:
- CM-74/75 Series
- Contact Rating:
- 15 Amp @ 30 VDC
- Warranty:
- 3 Year Limited
- Voltage:
- 12-24 VDC +/- 10%
- Subcategory:
- Switches/Push Buttons
- Height:
- 36"
- Commercial/Residential:
- Commercial
- Switch:
- SPDT Momentary, Form 'C'
- Product Type:
- Push Plate
- Power:
- 40 mA
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Switches/Push Buttons
- Substrate:
- Aluminum
