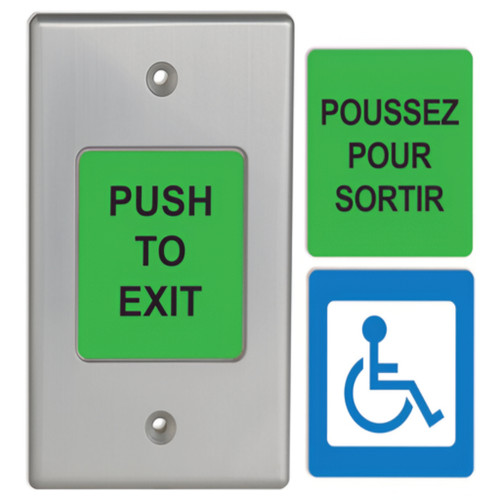

You may also like

Camden CM-9610 Narrow Faceplate Illuminated Piezoelectric Push/Exit Switch



The Camden CM‑9610 combines robust vandal/weather-resistant construction with a compact, narrow footprint—just 1 ¾″ wide, ideal for mounting in tight spaces such as door frames or narrow jambs. It features a 1″ illuminated round piezoelectric push button with a stainless steel faceplate and an adjustable timer of up to 40 seconds Camden Controls+12Camden Controls+12ADI Global Distribution+12.

Illumination & Indicators
The switch includes jumper-selectable LED illumination—options include always-on, off, green-to-red, or red-to-green configurations, enabling clear visual cues for door status or entry prompts JMAC+4Camden Controls+4ADI Global Distribution+4.

Switch Functionality
Powered by 12–24 V DC, the CM‑9610 supports field-selectable normally-open (N/O) or normally-closed (N/C) contact outputs, and allows configuration for either fail-safe or fail-secure operation modes to suit varying security requirements ADI Global Distribution+7ADI Global Distribution+7ADI Global Distribution+7.

Durability & Compliance
Constructed with a heavy-duty stainless steel faceplate, the device withstands harsh environments and vandal attempts. Its piezoelectric switch offers silent, reliable operation with no moving parts, enhancing longevity Locksmith Keyless+6Camden Controls+6ADI Global Distribution+6.

Warranty & Replacement
The CM‑9610 is backed by Camden’s “Camden Tough” lifetime warranty with a convenient 2-for-1 replacement policy for added peace of mind HKResale+12JMAC+12JMAC+12.

Key Features Summary


Ultra-Narrow Design Just 1 ¾″ wide, ideal for narrow mounting spaces
Piezoelectric Push Button Durable, silent operation with illuminated feedback
Adjustable Timer Up to 40 seconds, customizable to application needs
Selectable Illumination LED: On/Off, Green-to-Red, or Red-to-Green
Configurable Output Choose between N/O or N/C, fail-safe or fail-secure
Robust Construction Stainless steel plate, weather/vandal-resistant
Lifetime Warranty Includes 2-for-1 replacement policy

Applications

  • Request-to-Exit (REX) or Push-to-Exit door release devices

  • Areas with limited mounting space, such as narrow frame installations

  • Environments requiring intuitive status feedback with LED illumination

  • High-security or high-reliability access points with fail-safe/secure mode selection



Manufacturer Resources

Product Specs

Subcategory:
Switches/Push Buttons
Warranty:
3 Year Limited
Wireless Communication:
No
Commercial/Residential:
Commercial
Product Type:
Push Buttons Switches
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Switches/Push Buttons
Product Model:
CM-9610
Product Finish:
Stainless Steel
Product Category:
Electronic Access Control
Department:
Door Hardware

Camden Door Controls CM-9610 – Frequently Asked Questions

1) What voltage does the Camden CM-9610 push to exit switch run on?
12 to 24 V DC, so it drops onto the same low voltage supply as most maglocks, strikes and access control panels without a separate power source.
2) Can the CM-9610 be wired normally open or normally closed?
Both. The contact output is field selectable N/O or N/C, and the switch can be set for fail-safe or fail-secure operation. That means one part covers a maglock release (fail-safe) and a strike application (fail-secure) without stocking two SKUs.
3) Does the Camden CM-9610 have a built in timer, or do I need a separate relay timer?
A timer is built in and adjustable up to 40 seconds, so for a simple push to exit release you do not need an external timer module. Anything longer than 40 seconds has to come from the access control panel.
4) How do the LED colors work on the Camden CM-9610, and can I turn them off?
Illumination is jumper selectable on the board: always on, off, green-to-red, or red-to-green. Green-to-red is the usual choice when you want the button to show door status to the person exiting; off is used where a lit button would be a distraction, such as a bedroom corridor at night.
5) Is a piezoelectric exit button better than a mechanical push button for a high traffic door?
A piezo switch like the CM-9610 has no moving parts, so there is no mechanical contact to wear out or stick, and it actuates silently. That suits high traffic lobbies, schools and healthcare corridors. Where you need a large panic style actuator instead, a mushroom button such as the SDC 440 Series with its 2-5/8 inch head or the Dortronics 5210 Series 1-9/16 inch red mushroom is the better call.
6) Can the Camden CM-9610 be used on an exterior door?
Yes. The construction is weather and vandal resistant with a heavy duty stainless steel faceplate, which is why it is specified for exterior gates and loading doors as well as interior openings. It is a commercial rated device.
7) Does the Camden CM-9610 come with lettering like PUSH TO EXIT on the faceplate?
The CM-9610 ships with a blank faceplate graphic, so there is no printed text on the plate. If your AHJ or site standard calls for marked exit signage on the actuator itself, plan on separate signage or a labeled mushroom device such as the Dortronics 5210 Series, which is supplied with Push to Exit / Emergency Release marking.
8) Do the SDC 430 and 440 mushroom switches work the same as the Camden CM-9610?
Not interchangeably. The Camden CM-9610 is an illuminated piezoelectric switch with no moving parts, jumper-selectable LED illumination including green-to-red and red-to-green, and an adjustable timer up to 40 seconds on 12 to 24 V DC. The SDC 430 Series is a heavy duty industrial mushroom button switch with a 1-1/2 inch round button and the SDC 440 Series is a large 2-5/8 inch mushroom emergency exit switch - both are mechanical mushroom actuators, so if you need the LED status feedback and onboard timing you are looking at the CM-9610.
9) Which exit switch should I specify if the drawing calls out code compliance for the push to exit device?
The SDC 420 Series illuminated push button exit switch is described with 2 inch buttons and code compliance, so that is the one to take to a spec that calls it out. The Camden CM-9610 is a commercial illuminated piezoelectric push/exit switch with field-selectable normally open or normally closed contacts and fail-safe or fail-secure configuration, which covers the wiring side of a request-to-exit application.
10) For a vandal-prone exterior door, is the CM-9610 or a mushroom button switch the better choice?
The Camden CM-9610 has a heavy-duty stainless steel faceplate and vandal and weather-resistant construction, and its piezoelectric button has no moving parts, which removes the usual wear point. Among mushroom-style alternatives, the SDC 430 Series is a heavy duty industrial mushroom button switch and the SDC 440 Series is a heavy duty large mushroom emergency exit switch. The difference is actuation: a protruding mechanical mushroom versus a flush illuminated piezo button.
11) Is the Camden CM-9610 a wireless exit button?
No. It is a hard wired device with no wireless communication, so you need to pull low voltage cable to it from the panel or power supply.
