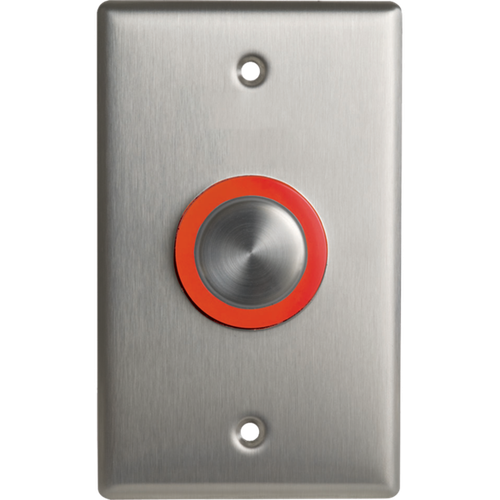

Camden CM-9600 Illuminated Piezoelectric Push/Exit Switch
Model: CM- CM-9600
Camden CM-9600 Illuminated Piezoelectric Push/Exit Switch
CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature...
Camden Door Controls
Starting at
$208.00
$195.55
Camden CM-3000 Series Illuminated Mushroom Red Pushbutton
Model: CM-CM-3010/3040
Camden CM-3000 Series Illuminated Mushroom Red Pushbutton
CM-3000 Series mushroom push buttons are heavy duty push-buttons designed for industrial and commercial applications. Buttons are 1-5/8"...
Camden Door Controls
Starting at
$153.00
$102.42

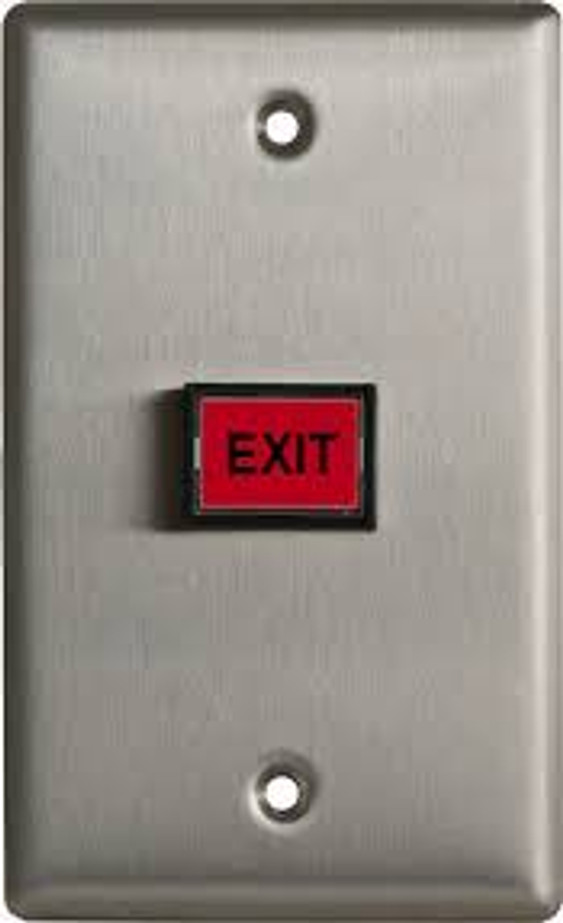

Camden CM-300 Series Rectangular Red LED Illuminated Push/Exit Switch
CM-300 (single gang) and CM-310 (narrow) series LED illuminated exit switches are economical illuminated exit controls. Buttons are 5/8" x 7/8" and are available in red or green. They are supplied with a stainless steel faceplate in single gang or jamb (narrow) widths.
| Voltage: | 12/24 VDC |
| Contact Type: | SPDT Form 'C' |
| Contact Rating: | 3 A @ 30 VDC |
| Switch Type: | Momentary |
| Std. Finish: | US/C 32D |
| Dimensions: | |
| CM-300: | 4-1/2" x 2-3/4" x 1-5/16" (114mm x 70mm x 33mm) |
Manufacturer Resources
Product Specs
- Subcategory:
- Switches/Push Buttons
- Warranty:
- 3 Year Limited
- Wireless Communication:
- No
- Commercial/Residential:
- Commercial
- Product Type:
- Push Plate
- Electronic:
- Yes
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Switches/Push Buttons
- Contact Type:
- SPDT Momentary
- Button Color:
- Red
- Button Graphic:
- Exit
- Product Dimension:
- 4-1/2" x 2-3/4" x 1-5/16"
- Product Category:
- Electronic Access Control
- Department:
- Door Hardware
Camden Door Controls CM-300RE – Frequently Asked Questions
1) Will the Camden CM-300 exit switch fit a standard single gang electrical box?
Yes. The CM-300 comes on a single gang stainless steel faceplate, with an overall plate footprint of 4-1/2 x 2-3/4 x 1-5/16 inches. If you are mounting on a narrow door jamb where a single gang plate won't fit, the CM-310 narrow version of the same series is the one to order.
2) Can I wire the CM-300 push button to break a maglock circuit directly?
The contact block is SPDT Form C momentary rated 3 A at 30 VDC, so you get both a normally closed and a normally open leg from one button. That lets you interrupt a maglock's power through the NC contact and simultaneously signal the access panel through the NO contact. Stay inside the 3 A rating, and use a relay if the lock draws more.
3) Is the CM-300 a momentary button or does it latch?
Momentary only. Press and the contacts transfer, release and they return, so the door releases for as long as the controller's timer allows rather than staying unlocked. If you need a maintained on/off control for a night latch or a hold-open, this is not the switch.
4) What does the button on the Camden CM-300 look like and what does it say?
A red LED illuminated button measuring 5/8 by 7/8 inch, marked EXIT, set in a stainless steel plate in US/C 32D satin stainless finish. The same series is also offered with a green button if your facility standard calls for green request-to-exit devices.
5) Is this exit switch suitable for a commercial building or is it a residential part?
It's a commercial access control device, built for request-to-exit duty on office, institutional and multi-family openings. The stainless 32D plate matches the satin stainless trim used on most commercial doors, which is what property managers standardizing a building's egress buttons are usually after.
