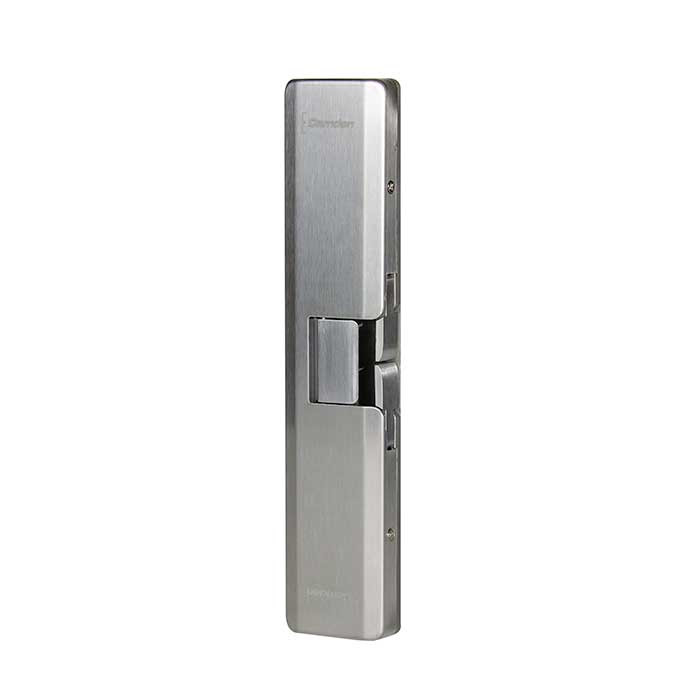

Camden CX-EPD-1289L Electric Strike - Universal Surface Mount Rim Strike With Preload, 12/24 VAC/DC, Fail Safe/Secure, Grade 1
The Camden CX-EPD1289L is a Grade-1 surface-mounted preload rim strike designed for Pullman latches (typically used in exit devices). It introduces a unique preload mechanism that applies pressure to the strike keeper, helping prevent unintentional release under pressures like wind, air flow, or door misalignment. This strike is field-selectable for 12V / 24V AC or DC, and can be configured for fail-safe or fail-secure operation. It includes a plug-in latch monitor assembly, stainless steel housing, “no-cut” surface mounting, a metal mounting jig, and UL fire/security listings when installed in the fail-secure mode
It is ideal for retrofitting existing doors with exit devices, especially where offset alignment, pressure loading, or high-performance security is required.
Specifications
| Specification | Details |
|---|---|
| Model | CX-EPD1289L |
| Strike Type | Surface-mount, preload rim strike for Pullman latches |
| Latch Projection | ¾″ (19.8 mm) |
| Voltage / Operation | 12 / 24 V AC / DC, field selectable |
| Current Draw | ~560 mA @ 12 VDC, ~280 mA @ 24 VDC |
| Holding Strength (Static) | 1,500 lbs (UL Verified) |
| Dynamic Strength | 70 ft-lbs |
| Endurance | 1,000,000 cycles (factory tested), 250,000 cycles (UL verified) |
| Preload Capability | 15 lbs preload pressure (Fail Secure mode) |
| Mode Options | Fail-Safe or Fail-Secure (field selectable) |
| Duty / Operation | Continuous duty; AC = buzz, DC = silent |
| Latch Monitor | SPDT, 100 mA @ 24V DC (resistive) |
| Fire Rating | UL 10C / CAN4-S104, 3 hours (in Fail-Secure mode only) |
| Dimensions (Body) | 9-3/16″ H × 1-15/16″ W × ¾″ D (233 mm × 49 mm × 19.8 mm) |
| Standards / Certifications | UL 294, UL security listings, fire rating in Fail Secure mode |
| Finish / Materials | Stainless steel body; optional all-black finish (including jaws and monitor) |
| Accessories / Mounting | Comes with metal mounting jig, plug-in latch monitor assembly, screws, cover plate |
Benefits
-
Preload Feature: Better performance under misalignment, air pressure, or door-mounted forces that might otherwise prevent strike release.
-
Universal / Flexible Design: One unit supports AC/DC, 12V/24V, and both fail-safe/fail-secure modes.
-
High Strength & Durability: 1,500 lbs static hold, robust testing, UL fire/security listings.
-
Latch Monitoring: On-board status feedback via SPDT output for integration with access control systems.
-
Surface Mount / No Cut: Installs without frame mortising ("no-cut" design) using included jig—simplifies retrofits.
-
Stainless + Black Finish Options: Matches modern hardware aesthetics in various environments.
-
Non-Handed: Works for both left and right configurations.
Manufacturer Resources
Product Specs
- Product Type:
- Electric Strikes
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Electric Strikes
- Subcategory:
- Electric Strikes
- Fail-Safe/Fail-Secure:
- Field Selectable
- Product Voltage:
- 12/24V AC/DC
- Product Dimension:
- 3-3/8"H x 1-3/4"W x 1-7/32"D
- Product Category:
- Electronic Access Controls
