Camden CX-EPD0009 Magnetic Cab...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$200.00
$154.66

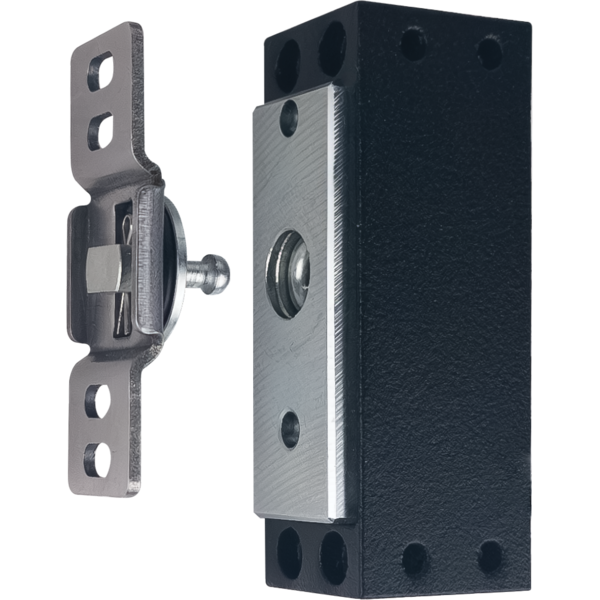

Camden CX-EPD0009 Magnetic Cabinet Lock

Camden CX-EPD0009 Magnetic Cabinet Lock

(No reviews yet) Write a Review

Model: CX-EPD0009

In Stock (leaves warehouse same day if ordered before 3pm ET)

$200.00
$154.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CX-EPD0009 Magnetic Cabinet Lock


Camden CX-EPD0009 Magnetic Cabinet Lock has an ultra-compact design and is an easily installed high-security lock for virtually any enclosure door, including computer cabinets, refrigerators, lockers, and retail display counters. This 12V or 24V magnetically operated lock has a holding force of 440 lbs. (200 kg) and is water-resistant, making it ideal for humid environments, including inside fridges and freezers.

  • CX-EPD0009:
    • Front or side mounting for use with swing or sliding doors and drawers
    • Armature plate adjusts to door alignment
    • Water resistant for indoor and outdoor use
    • Ultra-compact design
    • 440 lbs. (200 kg) holding force
    • 5 lbs. (2.3 kg) preload
    • 3 year warranty

SPECIFICATIONS

Power Input: 12 / 24 VDC
Current Draw: 60mA @ 12VDC, 110mA @ 24VDC
Endurance: 250,000 Cycles
Static Strength: 440 lbs. (200 kg) Holding Force
Preload: 5 lbs. (2.3 kg)
Temperature Rating: -4°F to 140°F (-20°C to 60°C)
Operation Mode: Fail-Safe
Installation Options: Front Mount, Side Mount
Dimensions*: 2-1/2"H x 27/32"W x 1-1/4"D
(64mm x 21.5mm x 31.6mm)
*Dimensions are of assembled product

Manufacturer Resources

Product Specs

Product Type:
Cabinet Locks
Commercial/Residential:
Commercial
Electronic:
No
Product Group:
Cabinet Hardware
Product Subgroup:
Cabinet Latches and Locks
Subcategory:
Cabinet Latches and Locks
Fail-safe / Fail-secure:
Fail-Safe
Holding Force:
440 lbs.
Product Voltage:
12/24 VDC
Product Dimension:
2-1/2"H x 27/32"W x 1-1/4"D
Product Category:
Cabinet Hardware
Department:
Door Hardware

Camden Door Controls CX-EPD0009 – Frequently Asked Questions

1) Will the Camden CX-EPD0009 magnetic cabinet lock stay locked or unlock if the power goes out?
It unlocks. The CX-EPD0009 is a fail-safe magnetic lock, so it releases the moment power drops. That is the right behavior for a cabinet on an access control system tied to a fire alarm or an egress path, and the wrong behavior if you need the enclosure to stay secured through an outage. If you need the cabinet to hold when power is lost, look at a fail-secure electric bolt like the SDC 290 Series micro cabinet lock, or a mechanical lock such as the HES KS-M mechanical server cabinet lock.
2) How much space do I need to fit a Camden CX-EPD0009 magnetic lock in a cabinet?
Assembled, the lock body measures 2-1/2 x 27/32 x 1-1/4 inches (64mm x 21.5mm x 31.6mm). That 27/32 inch face is what makes it fit inside a narrow cabinet frame or a display counter rail where a full-size mag lock or an electric bolt will not go. It mounts front or side, so you can pick whichever face has the depth.
3) Does the Camden CX-EPD0009 work on sliding cabinet doors and drawers, or only swing doors?
All three. Front or side mounting lets the CX-EPD0009 be applied to swing doors, sliding doors, and drawers, and the armature plate adjusts to take up door alignment error. That adjustment matters on older lockers and display counters where the door does not sit flat against the frame.
4) Should I use a magnetic cabinet lock or a keyed cam lock for a bank of cabinets?
It comes down to whether the cabinets are on a credential system. The Camden CX-EPD0009 is a wired 12/24 VDC magnetic lock with no cylinder and no keypad of its own, so it needs a controller, a reader, or a button upstream, and it releases on power loss. If you want the cabinet to open on a key or a code with no wiring, the Sargent 4142 horizontal cabinet lock with a 6-pin brass cylinder or the Lockey C170 surface mount keyless combination cam lock are the mechanical routes, and the Lockey covers 1-1/8 to 2 inch door thickness. For a keypad that is battery powered rather than wired, the SDC 295 Series takes 30 users.
5) I need the cabinet to key into our existing small format interchangeable core system - is the Camden CX-EPD0009 the right choice?
No. The Camden CX-EPD0009 is a magnetically operated 12/24 VDC lock with no cylinder, so it cannot accept a core and cannot be keyed into a master key system. For SFIC keying, the BEST 5L Series coin box cabinet lock uses a 7-pin SFIC core housing and the BEST 3L Series dead-locking cabinet lock has a 7-pin housing with vertical rim mounting. Both take the same core family already carried on the rest of the doors, which is what makes them the substitute when the requirement is one key, not one credential.
6) Is a magnetic cabinet lock a substitute for a dead-locking cabinet lock?
They secure the enclosure differently. The Camden CX-EPD0009 resists opening by magnetic holding force, rated at 440 lbs. with a 5 lbs. preload, and it is fail-safe, so the door is free when power is removed. The BEST 3L Series is a dead-locking cabinet lock with a 7-pin housing and vertical rim mounting, which stays locked mechanically with no power involved. If the cabinet must remain secured through a power loss, the Camden is not the equivalent; if the cabinet must release on a fire alarm or building power drop, it is the one that does.
7) What voltage and current does the Camden CX-EPD0009 cabinet lock draw?
It runs on either 12 or 24 VDC with no jumper or model change, drawing 60mA at 12VDC and 110mA at 24VDC. That low draw lets you gang several of them onto one small access control power supply, which is the usual situation when you are locking a bank of lockers or a row of display cases off a single controller.
8) What else could I buy instead of the Camden CX-EPD0009 for an electrically controlled cabinet?
Two other wired routes. The DynaLock 1410 Series is a heavy duty dual voltage cabinet lock, so it is the closest direct swap if you want the same dual-voltage wiring. The SDC 290 Series is a micro electric bolt rather than a magnet, which throws a physical bolt instead of relying on magnetic hold. If the cabinet needs to sit on the building access control head end, the HES KS200 is a Grade 1 server cabinet lock with Wiegand wired integration.
9) Does the Camden CX-EPD0009 have a keypad or card reader built in?
No. The CX-EPD0009 is the locking device only, a 12/24 VDC magnet plus an armature plate. Access control, whether that is a reader, a keypad, a request-to-exit button, or a relay off an existing panel, is separate and has to switch the power to the lock. Budget for a power supply and a control device alongside it. If you want the credential built into the lock, the HES KP20 is a stand-alone Grade 1 keypad cabinet lock.
10) Can I retrofit a magnetic lock like the Camden CX-EPD0009 onto lockers that currently use keyed cabinet locks?
Usually yes, and without touching the existing cutout. The CX-EPD0009 is surface applied, front or side mount, with the magnet on the frame and the armature on the door, so it does not need a cam lock bore or a cylinder prep. What it does need is a wiring path into each cabinet and a power supply, which is the real work on a locker retrofit. The old cylinder can stay in place as a mechanical override or be plugged.
11) What can I standardize on across a row of server cabinets that need audited access?
The Camden CX-EPD0009 is a commercial 12/24 VDC magnetic lock that releases on a signal from an external control, so on a server rack it becomes one part of a system rather than the whole solution. For server enclosures specifically, HES offers three Grade 1 options: the KS200 with Wiegand integrated wired access control for cabinets that report back to a head-end, the KP20 stand-alone keypad for cabinets managed locally, and the KS-M mechanical server cabinet lock where no electronics are wanted. Standardizing within that family keeps one lock body and one mounting across the row while letting the credential method vary by cabinet.
12) Will a magnetic cabinet lock work on a drawer, or do I need a different style?
The Camden CX-EPD0009 is offered with front or side mounting for swing doors, sliding doors and drawers, and its armature plate adjusts to door alignment, with an assembled size of 2-1/2 inch H x 27/32 inch W x 1-1/4 inch D that suits shallow enclosures. Where a drawer application calls for a keyed cylinder instead, the Sargent KESO F1 4152 Series is a cabinet lock for drawers with security system integration and the Sargent KESO F1 4252 Series is a drawer lock with field reversible operation. The Camden holds by magnet and needs the armature plate landed flat on the drawer face, while the KESO drawer locks throw a bolt from a cylinder.
13) What is the simplest way to add code access to a cabinet without running an access control system?
The Camden CX-EPD0009 has no reader or keypad of its own - it is a 12/24 VDC fail-safe magnetic lock that takes its release signal from whatever controls it, so a keypad, reader or controller has to be supplied separately. If the goal is a self-contained code-entry cabinet, the HES KP20 is a Grade 1 stand-alone keypad cabinet lock, the SDC 295 Series is battery powered and programmable for 30 users at the keypad, and the Lockey C170 is a mechanical keyless digital combination cam lock with a low profile surface mount design.
14) The cabinet doors on our lockers are handed differently - does that affect which lock I order?
Handing is not a factor for the Camden CX-EPD0009. It mounts front or side for swing doors, sliding doors and drawers, and the armature plate adjusts to door alignment, so the same part covers openings that swing either way. Among the keyed peers, handing does need attention: the Sargent 1655 6-pin cabinet lock is field reversible for handing and the Sargent KESO F1 4252 Series offers field reversible operation, while the Sargent 4142 is a horizontal cabinet lock with a 6-pin brass cylinder.
15) How long will a Camden CX-EPD0009 last on a cabinet that gets opened all day?
250,000 cycles is the rated endurance. For a high-traffic retail display counter or a tool crib opened dozens of times a shift that is years of service, and because the lock releases magnetically there is no latch or bolt wearing against a strike. It is specified for commercial use.
