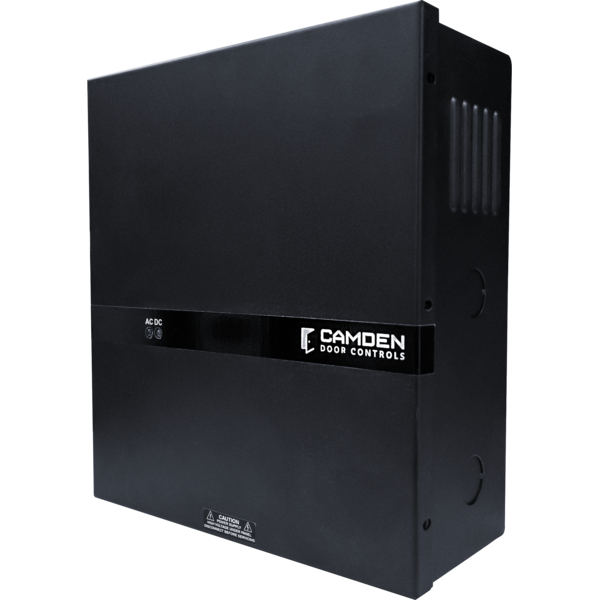

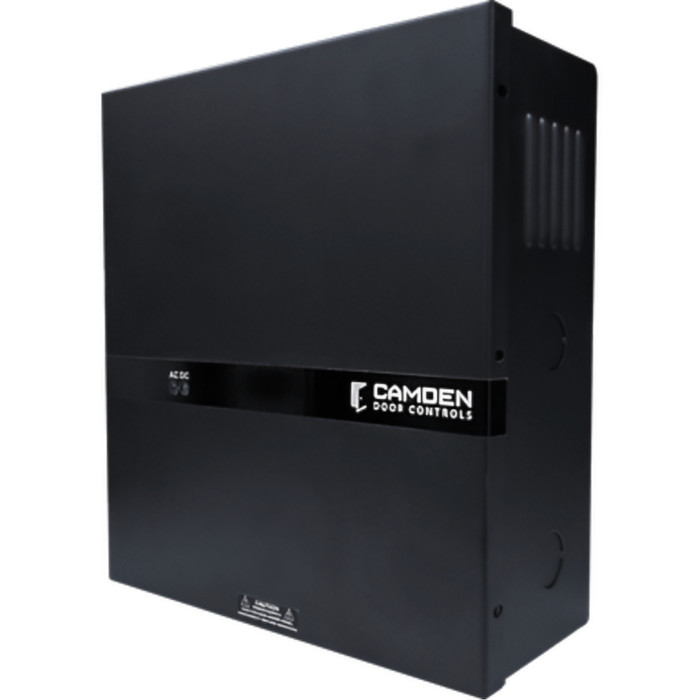

Camden CX-PS Series Power Supplies

Camden CX-PS Series Power Supplies

(No reviews yet) Write a Review

Model: CX-PS150UL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$290.00
$169.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CX-PS Series Power Supplies

Camden CX-PS Series power supplies are available in a range of 1.7 Amp, 3 Amp, and 6 Amp models and are ideal for powering electric strikes and magnetic locks in access control, door control, and other low-voltage applications.

CX-PS Series power supplies are UL 294 and ULC S533, and 60839-11-1 listed. These models offer over current protected outputs, battery charger, up to 8 output circuits, and heavy gauge locking metal cabinets.

Features

CX-PS150UL
  • Latching fire alarm tie-in with reset
  • 12 or 24 VDC selectable 1.7 Amp output
  • 12 or 24 VDC 200mA auxiliary output
  • AC and DC power and status indicators
  • Short circuit and terminal protection
  • Battery charger (500mA)
  • 120 VAC power input
  • Metal enclosure accommodates (1) 4 Ah. battery (not included)
CX-PS300UL; CX-PS600UL
  • Latching fire alarm tie-in with reset
  • 12 or 24 VDC selectable outputs
  • AC power and status indicators
  • Short circuit and terminal protection
  • Battery charger (1.5 Amp)
  • 120/240 VAC power input
  • Low battery, battery disconnect, and battery charger trouble monitoring
  • Metal enclosure accommodates (2) 12Ah. batteries (not included)
  • CX-PS300UL: (4) outputs, 3 Amp max
  • CX-PS600UL: (8) outputs, 6 Amp max

Specifications

Output Power:
CX-PS150UL: (2) 1.7 Amps, 500mA Battery Charger
CX-PS300UL: (4) 3 Amps, 1.5 Amp Battery Charger
CX-PS600UL: (8) 6 Amps, 1.5 Amp Battery Charger
Output Protection: Short Circuit Protection
Battery Charger Monitor:
CX-PS300UL,CX-PS600UL: Battery Load Test Every 48 Hours
Voltage:
CX-PS150UL: 120 VAC
CX-PS300UL,CX-PS600UL: 120/240 VAC
Output Voltage: 12/24 VDC
Enclosure Accomodates:
CX-PS150UL: (1) 12 VDC / 4 Ah Battery
CX-PS300UL,CX-PS600UL: (2) 12 VDC / 12 Ah Batteries
Dimensions:
CX-PS150UL: 9-1/8"H x 8"W x 3-1/2"D
(231 x 204 x 89mm)
CX-PS300UL,CX-PS600UL: 17-1/2"H x 13"W x 4-5/16"D
(445 x 330 x 110mm)

Manufacturer Resources

Product Specs

Product Group:
Electronic Access Control
Product Subgroup:
Power Supply
Product Type:
Power Supply
Subcategory:
Power Supply
Commercial/Residential:
Commercial
Output Voltage:
12/24 VDC
Output Power:
(2) 1.7 Amps, 500mA Battery Charger
Product Dimension:
9-1/8"H x 8"W x 3-1/2"D
Product Category:
Electronic Access Control
Department:
Door Hardware

Camden Door Controls CX-PS150UL – Frequently Asked Questions

1) Which Camden CX-PS power supply do I need for a job with several maglocks and strikes?
Size it by total current draw and door count. The CX-PS150UL gives 1.7 Amps across (2) fused 2 Amp outputs, which covers one or two small strikes. The CX-PS300UL is 3 Amps with (4) outputs, and the CX-PS600UL is 6 Amps with (8) outputs for larger openings counts. All three are for powering electric strikes and magnetic locks in access control and door control work.
2) Are the Camden CX-PS power supplies 12 volt or 24 volt?
Either. Every CX-PS model is 12 or 24 VDC selectable, so one unit can run a 24V maglock bank or 12V strikes depending on how you set it. The CX-PS150UL also carries a separate 12 or 24 VDC 200mA auxiliary output for a reader or controller.
3) Will a Camden CX-PS power supply drop the maglocks on a fire alarm signal?
Yes. All three CX-PS models include a latching fire alarm tie-in with reset, so a signal from the FACP cuts power to the locks and the supply stays latched off until it is manually reset.
4) Is the Camden CX-PS series UL listed for access control?
CX-PS Series power supplies are listed to UL 294, ULC S533, and 60839-11-1. That is the access control system unit standard, which is what most AHJs and institutional specs call for on a door control supply.
5) Do the Camden CX-PS power supplies come with backup batteries?
No, batteries are not included and have to be ordered separately. The CX-PS150UL cabinet holds (1) 12 VDC 4 Ah battery and charges at 500mA. The CX-PS300UL and CX-PS600UL cabinets hold (2) 12 VDC 12 Ah batteries with a 1.5 Amp charger.
6) How much wall space do I need for a Camden CX-PS enclosure?
Two cabinet sizes. The CX-PS150UL measures 9-1/8"H x 8"W x 3-1/2"D (231 x 204 x 89mm), small enough for a closet or above a door. The CX-PS300UL and CX-PS600UL share a larger cabinet at 17-1/2"H x 13"W x 4-5/16"D (445 x 330 x 110mm) to take the two 12 Ah batteries.
7) How do I know if the backup battery on a Camden power supply has failed?
On the CX-PS300UL and CX-PS600UL the board runs a battery load test every 48 hours and monitors for low battery, battery disconnect, and charger trouble. The CX-PS150UL is a simpler unit with AC and DC power and status indicators rather than that monitoring package.
8) What happens if a lock circuit shorts out on a Camden CX-PS supply?
Each output is over current protected with short circuit and terminal protection, and the outputs are individually fused at 2 Amps. A shorted strike run trips its own fuse rather than taking down the whole panel.
9) Is the Camden CX-PS cabinet secure enough for a public corridor?
The CX-PS Series ships in a heavy gauge locking metal cabinet, and the line is a commercial-grade product. For corridors and lobbies most specs still put the supply in an electrical or IT room; the locking enclosure is what protects it where it has to be in an occupied space.
