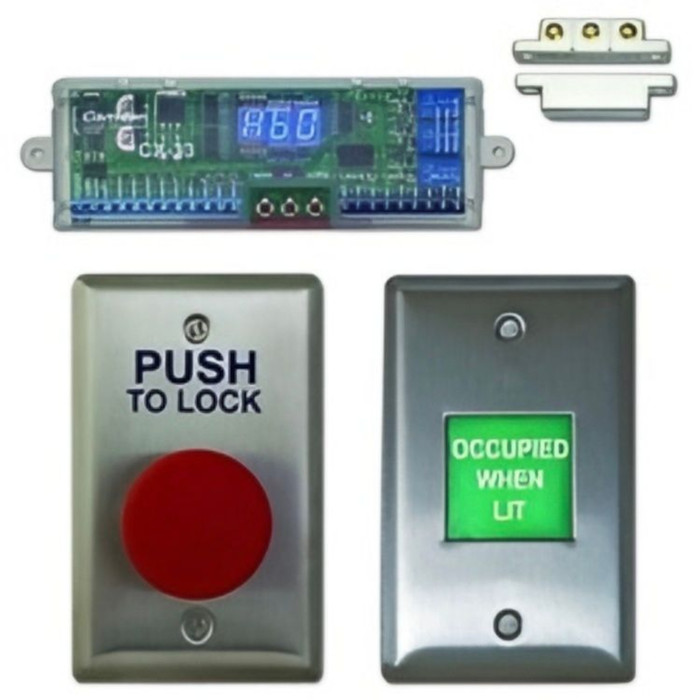

Camden CX-WC11 Basic Restroom Kit with CX-33, CM-400R/8, CM-AF500 & CX-MDA
The Camden CX-WC11 is a sophisticated push button and annunciator system featuring the CX-33 Advanced Logic Control for enhanced operation. It includes the CM-400R/8 Mushroom 'PUSH TO LOCK' button, designed for easy and secure locking. The system also comes with a CM-AF500 single gang LED annunciator, providing clear visual indicators. Additionally, it is equipped with the CX-MDA magnetic door contact for reliable door status monitoring.
- CX-33 Advanced Logic Control
- CM-400R/8 Mushroom 'PUSH TO LOCK' Button
- CM-AF500 Single Gang LED Annunciator
- CX-MDA Magnetic Door Contact
Manufacturer Resources
Product Specs
- Warranty:
- 3 Year Limited
- Subcategory:
- Wireless Door Control System
- Commercial/Residential:
- Commercial
- Product Type:
- Restroom Control Kit
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Wireless Door Control System
- Fire Rating:
- No
- Product Category:
- Electronic Access Control
- Department:
- Door Hardware
Camden Door Controls CX-WC11 – Frequently Asked Questions
1) What components come in the Camden CX-WC11 restroom control kit?
Four pieces ship in the CX-WC11: the CX-33 Advanced Logic Control, a CM-400R/8 mushroom 'PUSH TO LOCK' button, a CM-AF500 single gang LED annunciator, and a CX-MDA magnetic door contact. That covers the control logic, the lock command button, the occupied indicator, and door position monitoring. The door operator, the electric strike or maglock, and the power supply are separate items.
2) Can I use the Camden CX-WC11 on a fire rated restroom door?
No. The CX-WC11 barrier free restroom control kit is not fire rated, so it should not be specified as part of a fire door assembly. Use it on standard, non-rated restroom openings.
3) Do I still need to order the door operator and locking device with the Camden CX-WC11?
Yes. The CX-WC11 supplies the control side only, the CX-33 logic board, lock button, annunciator and door contact. The low energy operator, the electric strike or maglock it commands, the entry and exit actuators, and the power supply are all specified separately to suit the opening.
4) Is the Camden CX-WC11 suitable for a commercial restroom, or is it a residential product?
It's a commercial product. The CX-WC11 is built for barrier free public restrooms in commercial buildings, the kind of single-occupancy accessible washroom found in offices, schools, healthcare and hospitality facilities where a push button locks the door and an annunciator tells the next person the room is in use.
5) What does the magnetic door contact in the Camden restroom kit actually do?
The CX-MDA magnetic contact reports door position back to the CX-33 logic control. That gives the system a real door status signal rather than assuming the door closed, so the lock and the occupied annunciator respond to the door actually being shut. On an accessible restroom that is what prevents the room showing occupied with the door standing open.
6) How does the occupied indicator work on the Camden CX-WC11 kit?
The CM-AF500 LED annunciator handles it. It mounts in a single gang box outside the restroom and gives a visual indication of the room's status, driven by the CX-33 logic control once the user presses the CM-400R/8 'PUSH TO LOCK' mushroom button inside.
7) Why is a mushroom button used for the lock control instead of a standard push plate?
The CM-400R/8 is a red mushroom style 'PUSH TO LOCK' button, a large target that is easy to hit with a hand, elbow or closed fist. In a barrier free restroom that matters, since the person locking the door may have limited dexterity. It is the deliberate lock command in the CX-WC11 kit, distinct from the actuator that opens the door.
8) Is the Camden CX-WC11 sold in more than one configuration?
The CX-WC11 is a single model, the basic kit built around the CX-33 Advanced Logic Control. Camden's CX-WC series runs to higher kits with additional devices, but CX-WC11 itself is one fixed package with no options to choose.
