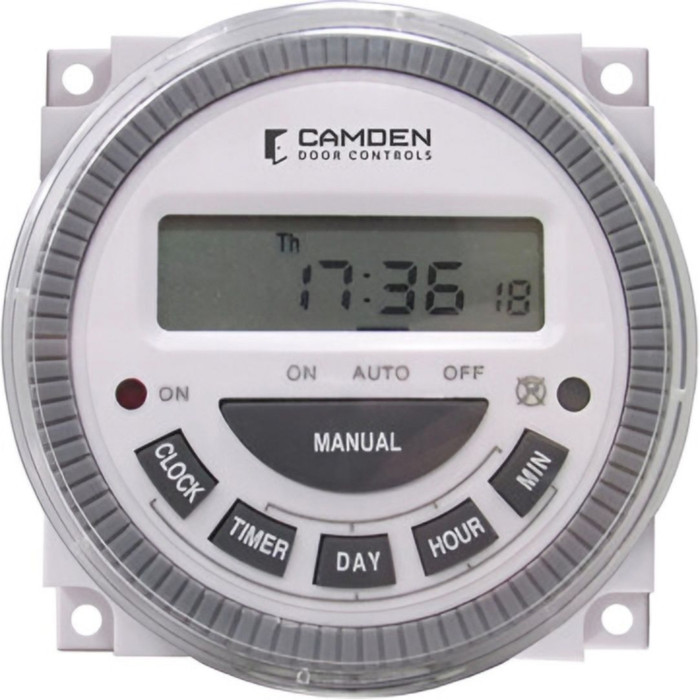

Camden CM-CX-247 7 Day Timer

Camden CM-CX-247 7 Day Timer

(No reviews yet) Write a Review

Model: CX-247-24

In Stock (leaves warehouse same day if ordered before 3pm ET)

$100.00
$67.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CM-CX-247 7 Day Timer

Camden's CX-247 is an affordable, compact and easy to program 7 day electronic timer that is designed for use in a wide range of control applications. The unit supports up to 16 'on/off' scheduled times per day and is available in 12 or 24 Volt models.


Applications: Ideal for automatic enable/disable of door activation devices, lighting control, energy management and other general control applications.

Features

  • 15 daily or weekly schedules
  • Internal memory back-up
  • Easy to program/setup
  • Extremely compact size
  • 12 and 24V AC/DC models
  • SPDT contacts rated 16 amps @ 30 VDC
  • Dimensions: 2-3/8" x 2-3/8" x 1-1/4"
  • 3 year warranty

Specifications

Voltage: 12V AC/DC or 24V AC/DC
Current Draw: 0.1 mA Idle, 10 mA Operating
Response Time: 0.3 Seconds
Backup: Internal Permacell
Programs: 16
Output: Form 'C' (SPDT)
Contact Rating: 16 A @ 30 VDC
Electrical Life: 250,000 @ Rated Capacity
Dimensions: 2-3/8" x 2-3/8" x 1-1/4"
(60mm x 60mm x 32mm)

Manufacturer Resources

Product Specs

Product Group:
Electronic Access Control
Product Subgroup:
Parts and Accessories
Product Type:
Timer
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Product Attribute:
Parts and Accessories
Contact Rating:
16 A @ 30 VDC
Electrical Life:
250,000 @ Rated Capacity
Product Dimension:
2-3/8" x 2-3/8" x 1-1/4"
Product Category:
Electronic Access Control
Department:
Door Hardware

Camden Door Controls CX-247-24 – Frequently Asked Questions

1) Which voltage do I order for the Camden CX-247 7 day timer, 12V or 24V?
The CX-247 is built as a single-voltage unit, so you pick one: a 12V AC/DC model or a 24V AC/DC model. Match it to the power supply already feeding the door controls or lighting circuit you plan to schedule. Either version accepts AC or DC at its rated voltage, so a 24VAC transformer and a 24VDC access control supply both work with the 24V model. Current draw is tiny, 0.1 mA idle and 10 mA operating, so it adds almost nothing to an existing supply's budget.
2) Can the Camden CX-247 timer switch a door operator or maglock circuit directly, or do I need a relay?
Its output is a Form C (SPDT) dry contact rated 16 amps at 30 VDC, so for most access control loads you can wire it inline without an added relay. It gives you both normally open and normally closed sides, which is what you need to either enable or disable a device on schedule. Electrical life is 250,000 operations at rated capacity. For anything above 30 VDC or outside that contact rating, switch a separate relay with it instead.
3) Will the Camden CX-247 fit inside a standard access control enclosure or electrical box?
The timer measures 2-3/8 x 2-3/8 x 1-1/4 inches (60 x 60 x 32 mm), small enough to sit inside most access control power supply cabinets alongside the board, or in a surface box next to a door operator controller. Lay out the footprint before you commit space in a crowded enclosure with the transformer and battery already in it.
4) How many on/off schedules can the CX-247 7 day timer hold, and can I set different times per day?
It holds 16 programs, and schedules can be set daily or weekly, so you can run one pattern Monday through Friday and different on/off times on the weekend. That is the practical fit for a building that unlocks a vestibule at 7am and relocks at 6pm on business days only.
5) Does the Camden CX-247 lose its schedule during a power outage?
No. The timer has internal memory back-up using an internal Permacell, so programmed schedules survive a power interruption and you are not reprogramming every opening after a storm. Note that the back-up holds the program; the switched contact itself has no output while the supply is down, so the controlled device sits in its unpowered state until power returns.
6) Can I use one CX-247 timer to control several doors at once?
One CX-247 provides a single Form C (SPDT) contact, so it switches one circuit. You can drive several devices from that one contact if they share a common enable circuit and the total load stays inside 16 amps at 30 VDC; otherwise use the contact to trigger a multi-pole relay, or put a timer on each independent circuit.
7) What is the Camden CX-247 actually used for on a door job?
Most commonly it automatically enables and disables door activation devices, so a push plate or automatic operator only responds during open hours. Beyond doors it gets used for lighting control and energy management, and any general control application that needs a scheduled dry contact. Response time is 0.3 seconds, and it is rated for commercial use.
