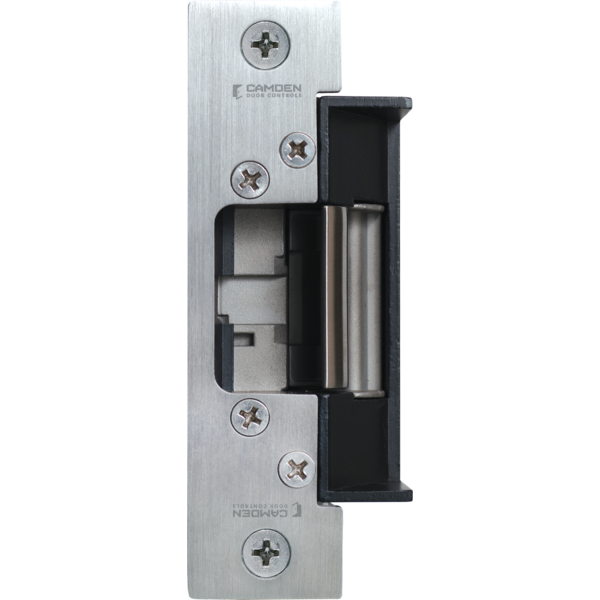

Camden X-ED1410 & CX-ED1420 Series 'Universal' Grade1 ANSI Fire-Rated Electric Strikes

Camden X-ED1410 & CX-ED1420 Series 'Universal' Grade1 ANSI Fire-Rated Electric Strikes

(No reviews yet) Write a Review

Model: CX-ED1410

In Stock (leaves warehouse same day if ordered before 3pm ET)

$400.00
$294.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden X-ED1410 & CX-ED1420 Series 'Universal' Grade1 ANSI Fire-Rated Electric Strikes

Camden CX-ED1410 standard depth and CX-ED1420 low profile Grade 1 ANSI fire rated strikes are designed to provide affordable code compliance to UL fire rated doors/frames with cylindrical locksets.

These fire rated strikes are designed to deliver unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation.

  • Centerline latch entry for cylindrical locksets, with ANSI square faceplate
  • UL 90 minute fire and UL 1034 burglary listed
  • Dual voltage 12/24V AC/DC
  • ANSI square faceplate included, 4-7/8" x 1-1/4"
    (124mm x 32mm)
  • Field selectable fail safe / fail secure operation
  • Trim plate included
  • 5 year warranty
  • CX-ED1420: 1/2" - 5/8" (12mm - 16mm) latch projection
  • CX-ED1410: 5/8" - 3/4" (16mm - 19mm) latch projection

SPECIFICATIONS

oltage: 12 or 24V AC/DC
Current Draw: 260 mA @ 12 VDC
150 mA @ 24 VDC
Static Hold Force: 1,500 Lbs.
Dynamic Strength: 70 Ft-Lbs.
Endurance: 1,000,000 cycles (factory tested), 250,00 cycles (UL verified)
Fire Rating: 90 minutes (UL verified)
Operation: AC - Buzz
DC- Silent
Latch Projection: CX-ED1410: 5/8" - 3/4" (16mm - 19mm)
CX-ED1420: 1/2" - 5/8" (12mm - 16mm)
Mode: Field selectable fail safe / fail secure (Fire rated in fail secure mode only)
Duty: Continuous
Dimensions: CX-ED1410:
3-3/8" L x 1-7/8" W x 1-3/8" D (86mm x 47mm x 35mm)
CX-ED1420:
3-3/8" L x 1-7/8" W x 1-3/16" D (86mm x 47mm x 31mm)

Manufacturer Resources

Product Specs

Product Type:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Subcategory:
Electric Strikes
Fail-safe / Fail-secure:
Field Selectable
Fire Rating:
Yes
Product Voltage:
12/24V AC/DC
Product Dimension:
4-7/8" H x 1-11/16" W x 1-5/8" D
Product Category:
Electronic Access Controls
Department:
Door Hardware

Camden Door Controls CX-ED1410 – Frequently Asked Questions

1) Will this Camden strike work with a mortise lock or an exit device?
No. The CX-ED1410 and CX-ED1420 are centerline latch entry strikes built for cylindrical locksets. For a mortise lock, look at the Von Duprin 6210 or the Securitron MUNL. For a rim exit device, the Hager 2945 fire rated rim exit strike or the SDC 30-4 for a 3/4 inch Pullman latchbolt are the right category.
2) Do I need to order a separate 12V or 24V version of the Camden CX-ED1420?
No. Both the CX-ED1410 and CX-ED1420 are dual voltage, 12 or 24V AC or DC, selectable in the field. One part covers both. Current draw is 260 mA at 12 VDC and 150 mA at 24 VDC, so size the power supply off whichever you set it to. Run it on DC if you want silent release; on AC it buzzes.
3) What is the closest equivalent to the Camden CX-ED1410 fire-rated electric strike from another brand?
The Camden CX-ED1410 is a Grade 1, fire-rated electric strike for cylindrical locksets with field selectable fail safe / fail secure operation and 12/24V AC/DC dual voltage. The Von Duprin 4211 32D is the nearest cross-brand match: it is a Grade 1, heavy duty, fire-rated electric strike for cylindrical locks with 12/24 VDC field-selectable operation. The Hager 2930 is another fire-rated Grade 1 strike with 12/24VDC dual voltage and field reversible fail safe/secure operation, and it covers cylindrical and mortise locks.
4) My opening is an aluminum storefront jamb - will the Camden CX-ED1420 work, or is there a better strike?
The Camden CX-ED1420 uses an ANSI square faceplate measuring 4-7/8 inch by 1-1/4 inch and is intended for UL fire rated doors and frames with cylindrical locksets. For aluminum jambs, Adams Rite builds strikes specifically for that frame type: the 7100 Series and the 7160 both use a 1-1/4 inch by 4-7/8 inch faceplate for aluminum jambs. Note that the Adams Rite 7100 and 7160 are not fire rated, while the Camden is. For hollow metal or wood jambs, the Adams Rite 7170 uses the same faceplate size.
5) I need a fire-rated electric strike for a mortise lock, not a cylindrical lockset. What should I use?
The Camden CX-ED1410 and CX-ED1420 are built around centerline latch entry for cylindrical locksets. For a mortise lock, the Securitron MUNL Mortise UnLatch is a Grade 1 fire-rated strike made for mortise applications, and the Von Duprin 6210 is a Grade 1 heavy duty electric strike for mortise locks, UL 10C fire rated, 24 VDC fail-secure. The Von Duprin 6400 32D is a Grade 1 modular strike that handles either mortise or cylindrical locks and carries a 3-hour UL 10C rating in fail-secure.
6) Can I leave this Camden strike energized all day for a scheduled unlock?
Yes. Both models are rated continuous duty, so holding them powered for an office-hours unlock schedule is within spec. Keep in mind that a scheduled unlock on a fire rated opening has to be handled in fail secure mode to preserve the 90 minute rating, since fail safe voids it.
7) What else could I use instead of the Camden CX-ED1410 for a fire rated cylindrical lock opening?
Several equivalents cover the same application. The Von Duprin 4211 is a Grade 1 heavy duty fire rated strike for cylindrical locks with 12/24 VDC field selectable voltage. The Hager 2930 is Grade 1, fire rated, dual voltage 12/24VDC and handles cylindrical or mortise locks. Adams Rite 7240 is fire rated for cylindrical locksets at 5/8 inch latchbolt projection. The HES Folger Adam 310-1(X) body covers 1/2, 5/8 or 3/4 inch throw latchbolts in one part.
8) I need latch monitoring with my electric strike - does the Camden CX-ED1410 do that, and what else should I look at?
The Camden CX-ED1410 and CX-ED1420 are specified around fire rating, dual voltage and field selectable fail safe / fail secure operation. If you need the strike itself to report latch position, the Dortronics 3300 Series includes a latch bolt sensing switch and runs 12/24VDC with a strike plate for ANSI prep at 4-7/8 inch by 1-1/4 inch, the same ANSI faceplate footprint the Camden uses. The Hager 2945 is a fire rated rim exit strike with field selectable fail safe/fail secure and a latchbolt monitor, though that one is for rim exit devices rather than cylindrical locksets.
9) What is the difference between the Camden CX-ED1410 and the Adams Rite 7240?
Both are fire-rated electric strikes for cylindrical locksets. The Adams Rite 7240 is specified for a 5/8 inch latchbolt projection. The Camden pair splits that range across two models: the CX-ED1410 takes a 5/8 inch to 3/4 inch latch projection and the CX-ED1420 takes 1/2 inch to 5/8 inch, so you pick the body to match the latch you measured. The Camden units are field selectable for both voltage and fail safe / fail secure operation at 12/24V AC/DC.
10) I don't need a fire rating on this door - is there a simpler electric strike than the Camden CX-ED1420?
If the opening is not a rated assembly, the Camden CX-ED1420 carries a fire rating you would not be using. The RCI 15BS is an economy electric strike with fail-secure operation for special offset latch entry, and it is not fire rated. The Trine 001 Series is a light commercial fail-secure strike with a 5-7/8 inch by 1-1/4 inch faceplate, also not fire rated. Keep in mind both are fail-secure only, whereas the Camden is field selectable between fail safe and fail secure.
11) Is the SDC 45F a substitute for the Camden CX-ED1420?
They are close in function but differ at the faceplate. Both are fire-rated strikes sized for a 5/8 inch latchbolt - the SDC 45F is fire-rated with 5/8 inch latchbolt compatibility, and the CX-ED1420 covers 1/2 inch to 5/8 inch latch projection. The SDC 45F has a radius corner faceplate, while the Camden ships with an ANSI square faceplate at 4-7/8 inch by 1-1/4 inch, so the two are matched to different frame preps. SDC also offers the 15 Series for 5/8 inch latchbolts and the 25 Series for 1/2 inch latchbolt compatibility.
12) Which fire-rated strikes work with vertical rod or rim exit devices instead of the Camden CX-ED1410?
The Camden CX-ED1410 and CX-ED1420 are centerline latch entry units for cylindrical locksets, so they are not the right body for an exit device. For surface vertical rods, the HES Folger Adam 310-4-2 is a complete Grade 1 electric strike pac, though it is not fire rated. For a rim exit device on a rated opening, the Hager 2945 is a fire rated rim exit strike with field selectable fail safe/fail secure and a latchbolt monitor. For a pair of doors, the Rockwood double door electric strike with a 3/4 keeper is Grade 1 and fire rated.
13) Are there heavy duty alternatives to the Camden CX-ED1410 for a high traffic opening?
The Camden CX-ED1410 is a commercial Grade 1 strike rated for continuous duty with 1,500 lbs static hold force, 70 ft-lbs dynamic strength and 1,000,000 factory tested cycles. If you are specifying by duty level, the Alarm Controls AES-100 is a Grade 1 heavy duty electric strike, and the Von Duprin 4211 32D is Grade 1 heavy duty and fire rated for cylindrical locks. Locknetics also lists the MDS100 and MS100 as heavy duty strikes.
14) My system only supplies AC voltage - how does the Camden CX-ED1410 compare to other strikes on that?
The Camden CX-ED1410 accepts 12 or 24V AC or DC and is field selectable for voltage, drawing 260 mA at 12 VDC and 150 mA at 24 VDC. On AC it buzzes; on DC it is silent. Among peers, the Trine 004 runs 8-16VAC fail secure with a 6-1/4 inch by 1-3/8 inch faceplate and up to 5/8 inch throw, and the Trine 2001 runs 16-24VAC/DC fail secure with a 5-7/8 inch by 1-1/4 inch faceplate. Both of those Trine units are fire rated but are fail secure only, and their faceplates differ from the Camden ANSI 4-7/8 inch by 1-1/4 inch.
