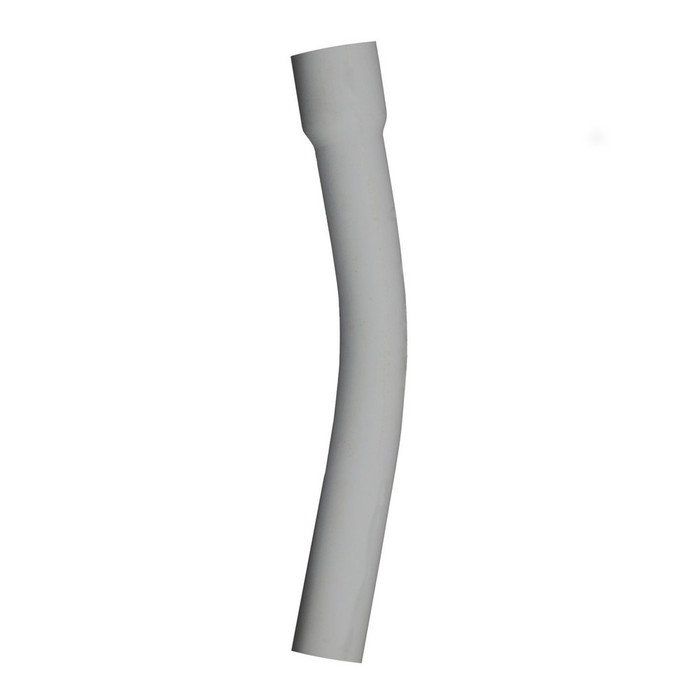

Cantex PVCE12530DEG 1-1/4" PVC 30° Elbow
The Cantex PVCE12530DEG is a 1-1/4" PVC 30° elbow designed to change the direction of a conduit run by 30 degrees while maintaining a smooth, obstruction-free interior pathway for conductors and cables. Built from rigid PVC, this elbow is a standard component in non-metallic conduit systems where a gentle directional change is required without the sharper bend of a 45° or 90° fitting. As part of the Cantex PVC conduit fitting line, the PVCE12530DEG is engineered to mate with 1-1/4" Schedule 40 and compatible PVC conduit, providing electricians and contractors with a reliable, code-familiar solution for routing conduit around obstacles, transitioning between elevations, or making gradual directional adjustments in underground, slab, or exposed conduit runs.
Key Features
- Trade Size: 1-1/4" sizing for direct compatibility with 1-1/4" PVC conduit runs and fittings.
- 30° Bend Angle: Provides a gradual 30-degree directional change, ideal for gentle offsets where a 90° or 45° elbow would be too abrupt.
- Durable PVC Construction: Rigid PVC material resists corrosion, moisture intrusion, and chemical degradation, making it well suited to a wide range of installation environments.
- Smooth Interior Bore: The elbow's design minimizes friction and drag during wire and cable pulls, helping protect conductor insulation during installation.
- Solvent-Weld Style Fitting: Designed for use in standard PVC conduit systems, allowing straightforward integration with matching Cantex conduit and fittings.
- Lightweight Profile: PVC construction keeps the fitting lightweight relative to metallic alternatives, easing handling and installation on the jobsite.
Technical Specifications
- Trade Size: 1-1/4"
- Bend Angle: 30°
- Material: PVC
- Fitting Type: Conduit Elbow
- Model Designator: PVCE12530DEG
Typical Applications
- Underground and Slab PVC Conduit Runs
- Directional Offsets Around Obstructions
- Commercial and Industrial Electrical Installations
- New Construction and Conduit System Renovations
- General Purpose PVC Raceway Systems
Why Cantex?
Cantex PVC conduit fittings, including the PVCE12530DEG elbow, are built from durable rigid PVC to help electrical contractors maintain consistent, code-familiar conduit routing across a job. Choosing a matched Cantex fitting for your 1-1/4" PVC conduit system helps ensure consistent dimensional compatibility and a dependable, low-maintenance directional transition point in the raceway.
Manufacturer Resources
Product Specs
- Angle:
- 30°
- list_batch:
- CAN-20260924
- Product Material:
- PVC
- Product Type:
- PVC Elbow
- Product Subgroup:
- PVC Conduit & Fittings
- Department:
- Electrical
- Product Group:
- Conduit & Raceway
Cantex 5133745 – Frequently Asked Questions
1) What trade sizes does the Cantex Schedule 40 PVC 30 degree elbow come in?
Five trade sizes: 1 inch, 1-1/4 inch, 1-1/2 inch, 2 inch and 2-1/2 inch. The 1-1/4 inch is Cantex model PVCE12530DEG, and each size is sized to mate with PVC conduit of the same trade size, so match the elbow to the conduit already in the run rather than converting sizes at the bend.
2) Will a 30 degree PVC elbow glue straight into my existing Schedule 40 conduit run?
Yes. It is a solvent-weld style fitting built for standard PVC conduit systems and mates with Schedule 40 and compatible PVC conduit of the matching trade size. You cement it in like any other PVC coupling or elbow, no adapters needed as long as the trade size matches.
3) What is the difference between a Cantex Schedule 40 PVC 30 degree elbow and the Carlon UA7AL-CAR 45 degree elbow?
The difference is the bend angle and the trade size range. The Cantex Schedule 40 PVC elbow bends 30 degrees, for gradual offsets where a sharper turn would be too abrupt, and is offered in 1 inch, 1-1/4 inch, 1-1/2 inch, 2 inch and 2-1/2 inch trade sizes. The Thomas & Betts UA7AL-CAR is a 3 inch Schedule 40 PVC 45 degree plain-end elbow in gray from the Carlon series. Both are rigid PVC fittings for non-metallic conduit, so the choice comes down to how much direction change the run needs and the conduit size you are working in.
4) I need a 3 inch PVC conduit elbow - what should I use instead of the Cantex 30 degree elbow?
The Cantex Schedule 40 PVC 30 degree elbow is made in 1 inch, 1-1/4 inch, 1-1/2 inch, 2 inch and 2-1/2 inch trade sizes, so a 3 inch run needs a different fitting. The Thomas & Betts UA7AL-CAR is a 3 inch Schedule 40 PVC plain-end elbow in gray from the Carlon series; it turns 45 degrees rather than 30, so plan the offset geometry around the steeper bend.
5) When should I use a 30 degree elbow instead of a 45 or 90?
Use the 30 degree when you need a gentle offset, for example stepping a run around a beam, a footing, or a small change in elevation, where a 45 or 90 would be too abrupt. Two 30s back to back give you a shallow jog with far less pull friction than two 45s. If you are turning a corner or coming up out of a slab, go to a 45 or 90 instead.
6) Is a PVC elbow OK for direct burial and in-slab conduit runs?
Rigid PVC construction resists corrosion, moisture intrusion and chemical degradation, and the fitting is intended for underground, slab and exposed conduit runs. That is the normal use case for Schedule 40 PVC raceway.
7) Will a 30 degree elbow damage conductor insulation on a long pull?
The bore is smooth to cut friction and drag during wire and cable pulls, which is what protects insulation at the bend. A 30 degree sweep also eats far less of your allowable bend total than a 90, so you can keep more usable bends between pull points on a long run.
8) Can I substitute a 45 degree PVC elbow for a 30 degree elbow on the same conduit run?
Not interchangeably. The Cantex Schedule 40 PVC elbow is a 30 degree fitting, which produces a shallower directional change than a 45 degree elbow such as the Thomas & Betts UA7AL-CAR plain-end Schedule 40 PVC elbow. Swapping angles changes the rise and offset the pair of fittings produces and the total degrees of bend in the run, so the layout has to be recalculated. The two also differ in size coverage: the Cantex 30 degree elbow runs 1 inch to 2-1/2 inch, while the UA7AL-CAR is a 3 inch fitting.
9) Does using Cantex elbows with Cantex conduit matter, or can I mix brands?
PVC conduit fittings are dimensionally standardized by trade size, so a matched Cantex elbow on Cantex 1-1/4 inch conduit gives you consistent socket fit across the job. Mixing manufacturers of the same trade size and schedule is normal practice in the field.
10) What do I need besides the elbow to make the joint up?
Only PVC solvent cement and the conduit itself. The elbow is a solvent-weld fitting with no gaskets, set screws or separate couplings supplied, so cement is bought separately.
