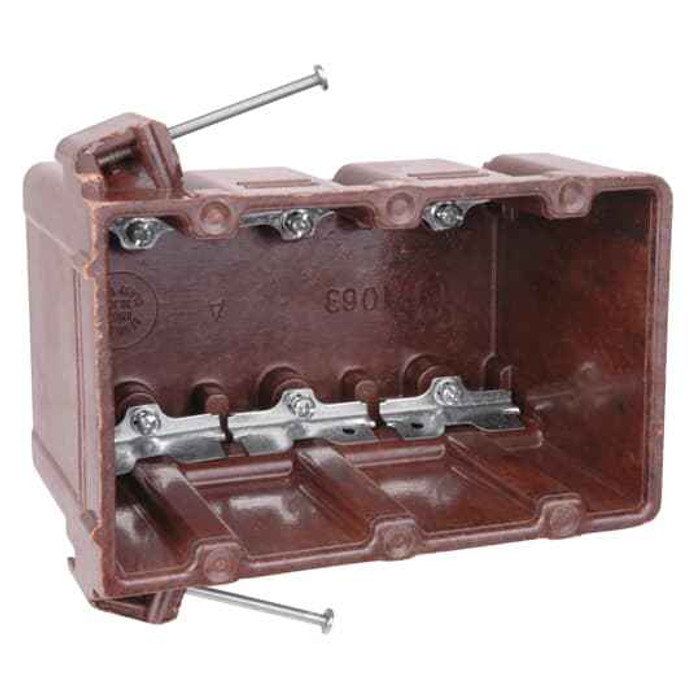

Carlon 3-Gang Non-Metallic Outlet Box 58.5 in with High Clamps

Carlon 3-Gang Non-Metallic Outlet Box 58.5 in³ with High Clamps

(No reviews yet) Write a Review

Model: 1063-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$13.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Carlon 3-Gang Non-Metallic Outlet Box 58.5 in³ with High Clamps

Professional electrical installation solution for multi-gang applications

The Carlon 3-Gang Non-Metallic Outlet Box delivers reliable performance for professional electrical installations requiring multiple outlet configurations. With 58.5 cubic inches of volume capacity and specialized high clamps, this brown non-metallic outlet box provides secure mounting and ample space for wiring connections in residential and commercial applications.

Professional Features & Benefits

  • 58.5 in³ Volume Capacity: Provides generous space for multiple wire connections and reduces overcrowding for safer installations
  • 3-Gang Configuration: Accommodates three electrical devices in a single box for efficient multi-outlet installations
  • High Clamps Design: Ensures secure cable retention and professional wire management for reliable long-term performance
  • Non-Metallic Construction: Offers corrosion resistance and electrical isolation for enhanced safety in various environments
  • UL Listed (E11461): Meets rigorous safety standards for professional electrical installations and code compliance
  • Shared Wall Compatible: Can be installed in the same stud cavity of a shared two-hour wall for versatile placement options

Technical Specifications

  • Application: Can be installed in the same stud cavity of a shared two-hour wall.
  • Brand Label: Carlon / Nutek
  • Country Of Origin: United States (US)
  • Department: Electrical
  • Effective Date: 19941115
  • Idea Granular Category Code Igcc : 4433 >> Outlet box
  • Product Color: Brown
  • Product Material: Non-Metallic
  • Product Name: NON-METALLIC BOXES
  • Product Type: Outlet Boxes
  • Special Functions: High clamps
  • Standards: UL E11461
  • Volume: 58.5 in³

Professional Applications

  • Residential electrical installations requiring multiple outlet configurations
  • Commercial facilities with multi-gang outlet requirements
  • Professional offices needing organized electrical distribution
  • Multi-unit properties with shared wall installations
  • Retail establishments requiring multiple device mounting
  • Light industrial applications with non-metallic box requirements

Why Choose Carlon Quality?

Carlon outlet boxes deliver proven reliability with UL listing certification and durable non-metallic construction. Made in the United States, this professional-grade outlet box provides the quality and performance electrical contractors trust for safe, code-compliant installations.

Manufacturer Resources

Product Specs

Application:
Can be installed in the same stud cavity of a shared two-hour wall.
Brand Label:
Carlon / Nutek
Country Of Origin:
United States (US)
Department:
Electrical
Effective Date:
19941115
Idea Granular Category Code Igcc :
4433 >> Outlet box
Product Color:
Brown
Product Material:
Non-Metallic
Product Name:
NON-METALLIC BOXES
Product Type:
Outlet Boxes
Special Functions:
High clamps
Standards:
UL E11461
Volume:
58.5 in³
Product Group:
Multi-Gang Boxes

Carlon 1063-C – Frequently Asked Questions

1) How many conductors can I put in a Carlon 1063-C 3-gang box?
The Carlon 1063-C is a 58.5 cubic inch 3-gang non-metallic box, and that volume is what sets your conductor count under the NEC box fill rules: 2.00 cu in per 14 AWG conductor, 2.25 for 12 AWG, plus allowances for devices, clamps and grounds. At 58.5 cubic inches you have room for three devices and the multiple cable runs that usually land in a 3-gang opening without crowding. Because the internal clamps are built in, remember to deduct one conductor volume for the clamp allowance.
2) Do I need separate cable connectors with the Carlon 1063-C outlet box?
No. The 1063-C ships with high clamps built into the box, so NM cable is secured inside the box itself and you don't buy clamps or connectors separately. Strip the sheath, seat the cable under the clamp, and the retention is done.
3) Can a non-metallic 3-gang box like this go in a two-hour rated wall?
Yes, and it is one of the reasons this box gets specified on multi-family and commercial jobs. Carlon lists the 1063-C as suitable for installation in the same stud cavity of a shared two-hour wall, which is normally where box placement gets restricted. The box is UL listed under file E11461.
4) Should I use a non-metallic box or a steel box for a 3-gang device opening?
Non-metallic is the usual pick for NM (Romex) wiring in wood-framed residential and light commercial work: the PVC body is corrosion resistant and needs no bonding of the box itself, since your ground lands on the device and cable grounds. Go steel instead when you're pulling EMT or MC and need a metallic raceway ground path, or where the box takes physical abuse. The Carlon 1063-C is the non-metallic version, molded in brown, with clamps for cable.
5) Will a standard 3-gang device cover plate fit the Carlon 1063-C?
Yes. The 1063-C is a standard 3-gang configuration, so it takes any standard 3-gang wall plate, whether you're mounting three duplex receptacles, three toggle switches, or a mix. Decorator/GFCI devices use the matching 3-gang decorator plate.
6) Is the Carlon 1063-C UL listed for code inspection?
It carries UL listing under file E11461, which is what an inspector looks for on a non-metallic outlet box. The box is made in the United States and sold under the Carlon / Nutek brand label.
7) Will this Carlon box work for a three-gang switch bank feeding several circuits?
That's the typical use. With 58.5 cubic inches and three device positions, the 1063-C handles a switch bank where several cables land in one box, including the travelers and neutrals that push a smaller 3-gang past its fill limit. The integral clamps hold each cable at the entry.
8) What part number do I order for the Carlon 3-gang high-clamp box?
Order Carlon 1063-C. That is the manufacturer part number for the brown 58.5 cubic inch 3-gang non-metallic outlet box with high clamps.
