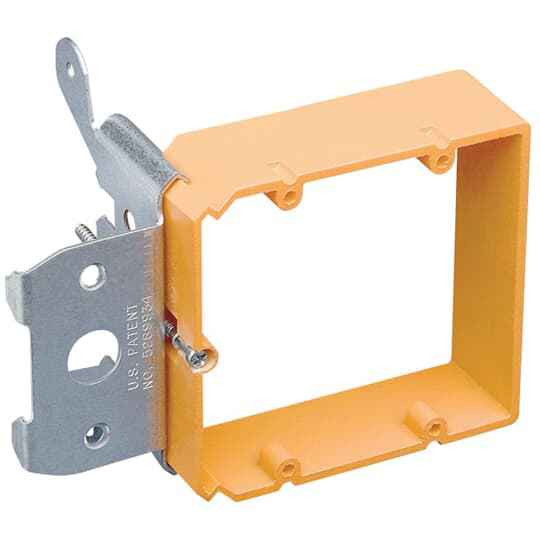

Carlon Low Voltage Adjustable Brackets

Carlon Low Voltage Adjustable Mounting Brackets - Non-Metallic Orange with 0-1.75" Adjustment Range

(No reviews yet) Write a Review

Model: SC100ADJC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Carlon Low Voltage Adjustable Mounting Brackets

Professional Non-Metallic Mounting Solution with Patented Adjustment Technology

Carlon Low Voltage Adjustable Mounting Brackets deliver reliable mounting solutions for low voltage electrical installations. These non-metallic orange brackets feature patented adjustment screw technology that provides precise positioning from 0 to 1-3/4" adjustment range, ensuring professional installation flexibility and secure mounting in various applications.

Professional Features & Benefits

  • Patented Adjustment Screw: Provides precise positioning from 0 to 1-3/4" for optimal installation flexibility and professional fit
  • Non-Metallic Construction: Eliminates corrosion concerns and provides reliable long-term performance in various environments
  • Orange Color Coding: Enhances visibility during installation and provides clear identification for low voltage applications
  • Zero Knockout Design: Streamlined construction reduces installation complexity and maintains structural integrity
  • US Manufacturing: Ensures consistent quality standards and reliable supply chain for professional contractors
  • Low Voltage Specialization: Purpose-built design optimized for low voltage electrical system requirements

Technical Specifications

  • Brand Label: Carlon / Nutek
  • Country Of Origin: United States (US)
  • Department: Electrical
  • Effective Date: 20080116
  • Idea Granular Category Code Igcc : 4459 >> Electrical Box Hardware and Accessories
  • Number Of Knockouts: 0
  • Product Color: Orange
  • Product Material: Non-Metallic
  • Product Name: PLASTIC MOUNTING BRACKET
  • Product Type: Low Voltage Brackets
  • Special Functions: Patented adjustment screw that adjusts from 0 to 1-3/4"."

Professional Applications

  • Low Voltage System Installations
  • Residential Electrical Projects
  • Commercial Building Infrastructure
  • Telecommunications Equipment Mounting
  • Security System Installations
  • Audio/Visual Equipment Support
  • Data Network Infrastructure

Why Choose Carlon Quality?

Carlon delivers proven reliability through US manufacturing standards and specialized low voltage bracket design. The non-metallic construction ensures long-term durability while the patented adjustment technology provides professional installation flexibility that contractors trust for consistent results.

Manufacturer Resources

Product Specs

Brand Label:
Carlon / Nutek
Country Of Origin:
United States (US)
Department:
Electrical
Effective Date:
20080116
Idea Granular Category Code Igcc :
4459 >> Electrical Box Hardware and Accessories
Number Of Knockouts:
0
Product Color:
Orange
Product Material:
Non-Metallic
Product Name:
PLASTIC MOUNTING BRACKET
Product Type:
Low Voltage Mounting Brackets
Special Functions:
Patented adjustment screw that adjusts from 0 to 1-3/4"."
Product Group:
Box Mounting Screws

Carlon SC100ADJC – Frequently Asked Questions

1) What is the adjustment range on the Carlon low voltage adjustable mounting bracket?
The Carlon adjustable low voltage bracket uses a patented adjustment screw that moves from 0 to 1-3/4 inches. That range is what lets you set the ring flush with the finished wall surface after drywall, tile backer, or a layer of paneling goes on, instead of guessing at depth when you mount to the stud.
2) Does the Carlon SC100ADJC come in a two gang version?
Two gang sizes are offered. SC100ADJC is the single gang bracket and SC200ADJC is the two gang. Both are the same orange non-metallic adjustable design, so you can run one gang for a single keypad or data drop and two gang where you need a larger plate.
3) Can I pull line voltage romex into this Carlon orange bracket?
No. This is a low voltage bracket, not an electrical box. It has zero knockouts and no enclosure behind it, so there is nowhere to terminate or protect line voltage conductors. Use it for structured cabling, thermostat wire, speaker wire, coax, and network drops. For 120V devices you need an actual device box with the proper cable clamps.
4) Will a standard decora or keystone wall plate screw onto the Carlon low voltage bracket?
Yes. The bracket carries standard gang device mounting, so a normal single gang plate lands on SC100ADJC and a two gang plate on SC200ADJC. The device or keystone insert screws to the bracket the same way it would to a box, and the bracket's adjustment screw sets how far forward the mounting face sits so the plate seats flat against the wall.
5) Do I mount this bracket before or after the drywall goes up?
Mount it at rough-in, on the stud, before the wall closes. The adjustment screw is what makes that workable: you set the bracket roughly in place, then dial the face out anywhere from 0 to 1-3/4 inches once the wall thickness is final. That is different from an old-work ring, which installs through a cut opening after the wall is finished.
6) Is the orange Carlon bracket safe to use in a damp or coastal building?
The bracket is non-metallic throughout, so it will not rust or corrode the way a steel mounting bracket does in humid, coastal, or below-grade conditions. That is a real consideration for parking structures, mechanical rooms, and exterior-wall runs where a galvanized bracket eventually bleeds through the paint.
7) Why are these low voltage brackets orange?
Orange is the color coding on Carlon's low voltage brackets, and on a rough-in job that is the point: an inspector or another trade can see at a glance that the opening is data or telecom and not line voltage. If you are standardizing a building, the orange also makes it easy to audit which openings were roughed for structured cabling.
8) Is the Carlon SC200ADJC made in the USA?
Both the SC100ADJC and SC200ADJC adjustable low voltage brackets are manufactured in the United States, sold under the Carlon / Nutek label. That matters on public and institutional work where domestic-origin material is written into the specification.
